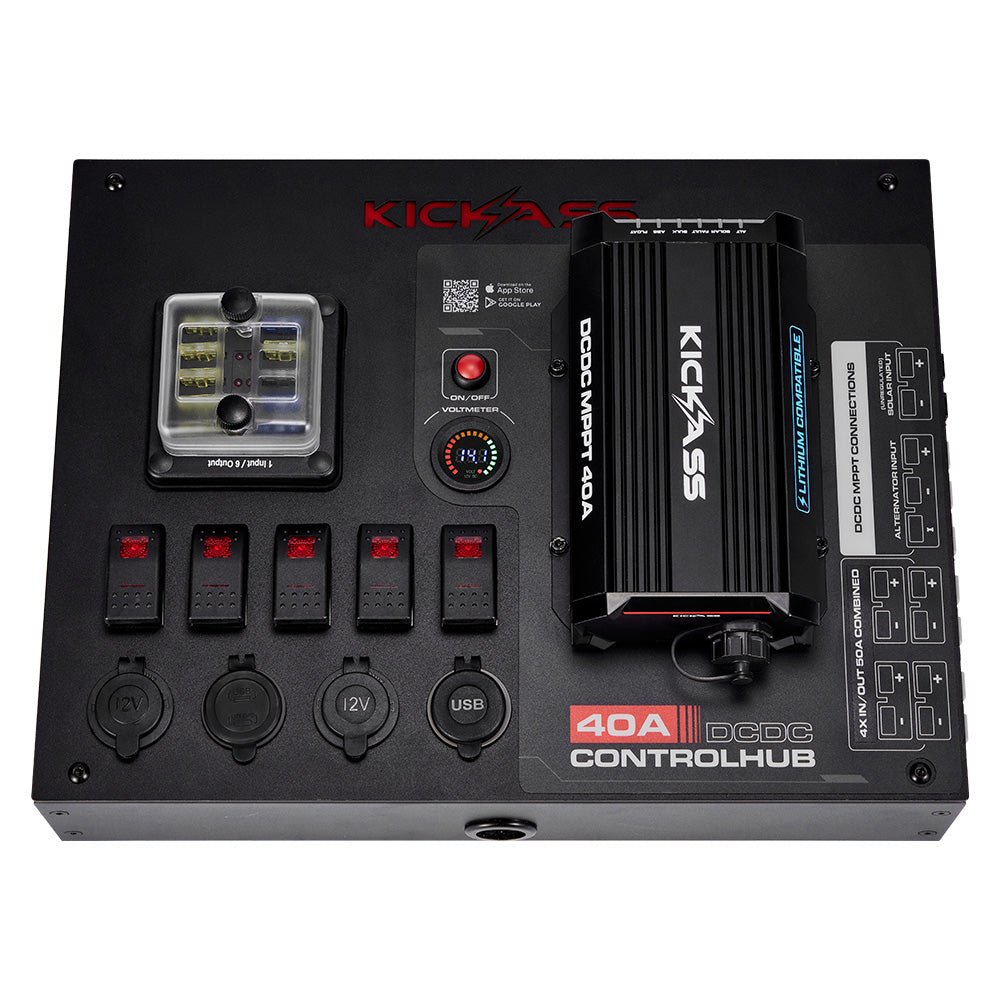

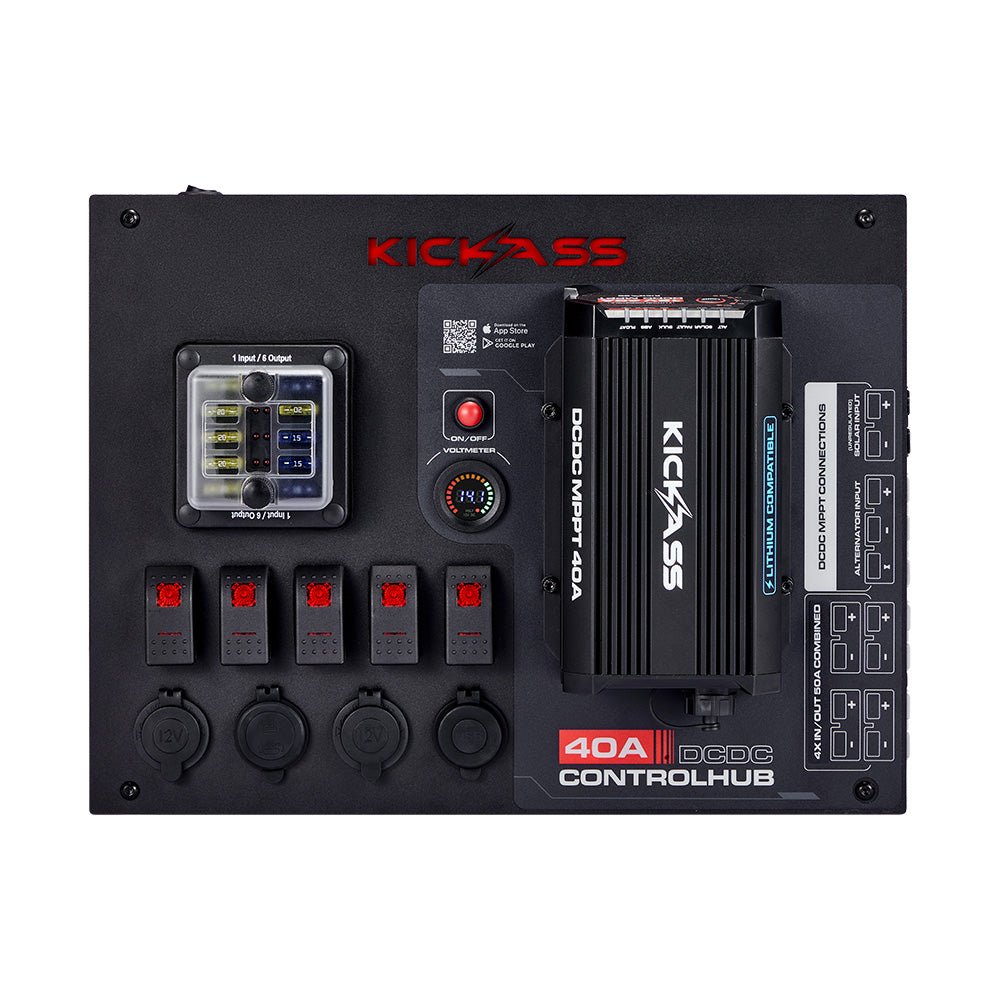

KickAss 12V Control Hub / Panel with Smart 40A DCDC Charger + Integrated Bluetooth
KickAss 12V Control Hub / Panel with Smart 40A DCDC Charger + Integrated Bluetooth
SKU:KACTRLHB40DCDCBT
Simplify your setup with the new KickAss Control Hub, now integrated with our newest smart 40A DCDC charger with Bluetooth for easy monitoring on your phone. It lets you power up to 15 devices at once while charging your auxiliary battery from alternator or solar directly from the unit, no need to install multiple devices. Perfect for any 4WD canopy or DIY build.
Specifications
Specifications

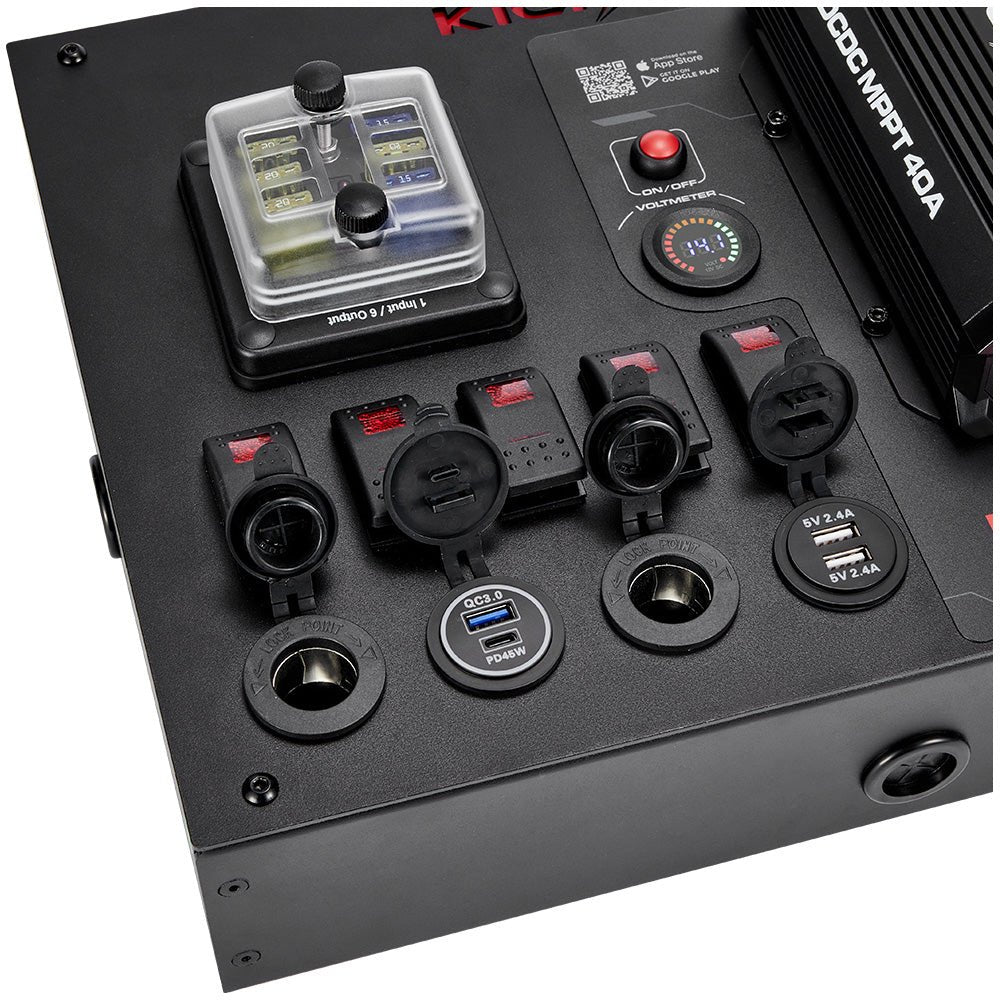

| Cig Socket Outputs | 2 x 10A |
| USB Outputs | 2 x USB-A | 1 x USB-C | 1 x QC3.0 |

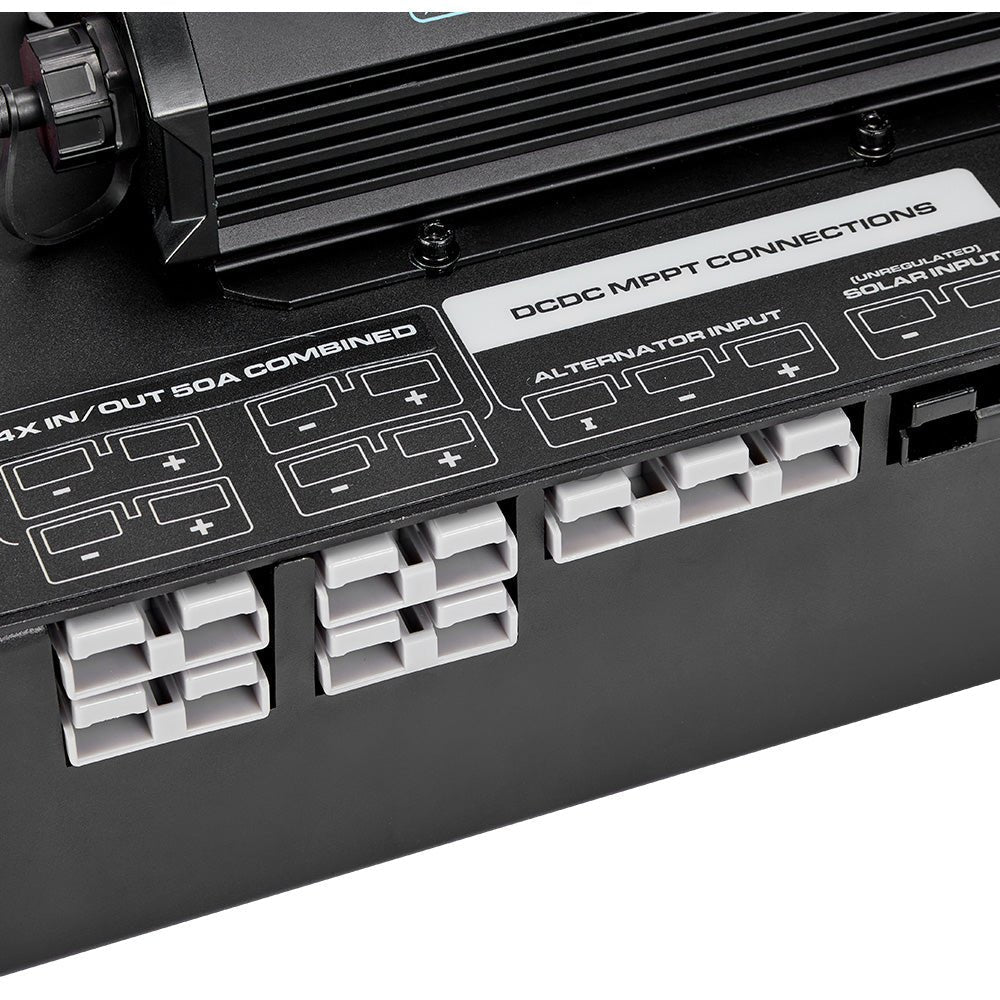

| Anderson Input / Outputs | 4 (50A Shared) |
| Anderson Inputs | 3 Pin Alternator | Unregulated Solar |
| Rocker Switches | 5 (Fused) |
| DCDC-MPPT | |
| Alternator Input Voltage Range | 9-32V DC |
| Solar Input Voltage Range | 9-32V DC |
| Maximum Input Current | 56A |
| Maximum Continuous Charging Current | 40A |
| Maximum Output Power | 500W |
| Recommended Output Fuse Size | 50A |
| No Load Current Draw | <10 mA |
| Efficiency | Approx. 93% when full load |
| Ambient Operating Temperature | 20 °C to +80 °C |
| Recommended Battery Capacity | |
| Lead Acid (WET, GEL, AGM, CAL) | 160 – 500Ah |
| LiFePO4 | 50 – 500Ah |
| Charge Profile | |
| Compatible Battery Type | GEL | WET | AGM | CAL | LiFePO4 |
| Absorption Voltage | 14.1V | 14.4V | 14.7V | 15.3V | 14.5V |
| Float Voltage | 13.5V | 13.4V | 13.6V | NA |
| Minimum Auxiliary Battery Voltage | 9V | 0V |
| Alternator Input Conditions | |
| Input Voltage (Ignition OFF) | CUT IN 13.2V | CUT OUT 12.6V | CUT IN 26.4V | CUT OUT 25.2V |
| Input Voltage (Ignition ON) | CUT IN 12.2V | CUT OUT 10.5V | CUT IN 24.4V | CUT OUT 21.0V |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor

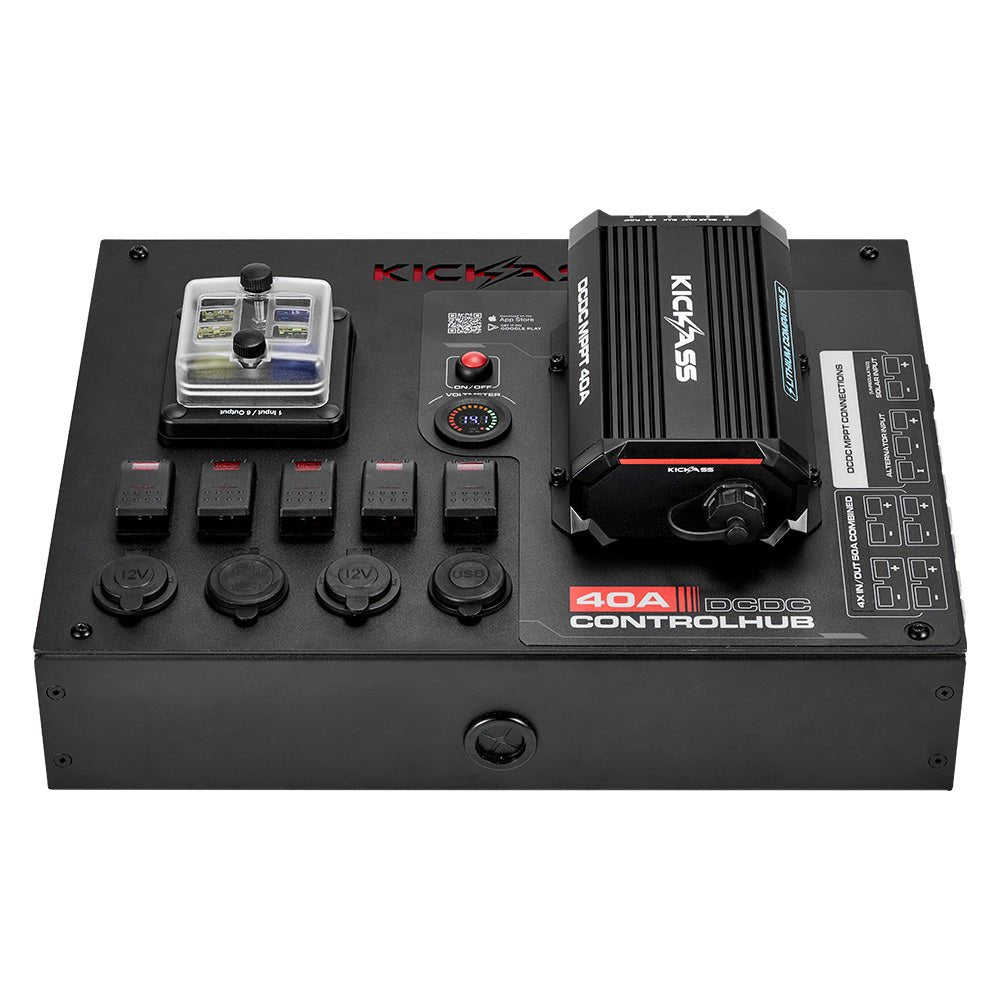

Take the hassle out of building your dual battery system with the updated KickAss Control Hub, now featuring our new Smart 40A DCDC Charger with integrated Bluetooth. This all-in-one panel brings your key 12V essentials together in one tidy, easy-to-mount unit.

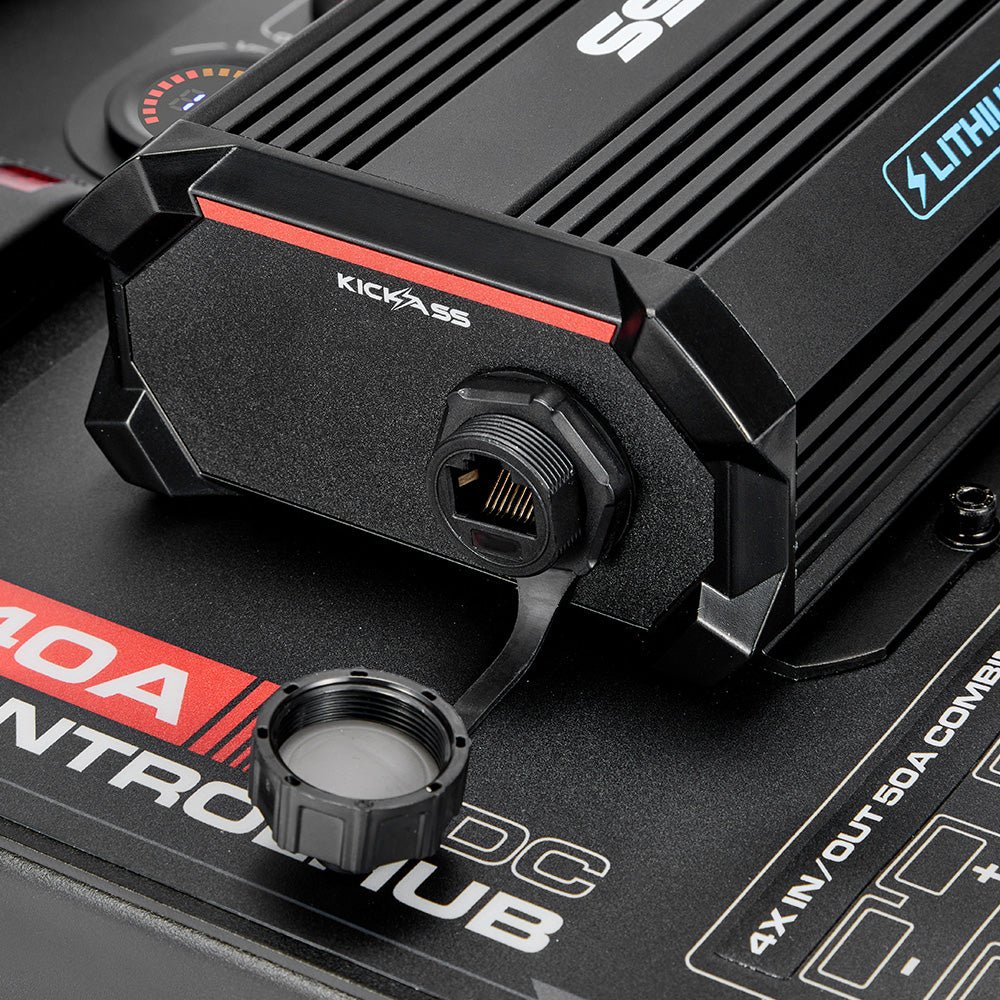

The upgraded Smart 40A DCDC Charger simplifies your setup by eliminating the need for separate charging devices. It delivers reliable charging from both your vehicle’s alternator and solar input, ensuring your auxiliary battery stays topped up whether you’re on the move or off-grid. With Bluetooth capability built in, you can now configure and monitor your charger directly from your mobile device. View real-time voltage, current, charge status and system health, and receive instant alerts or warnings if anything needs attention.

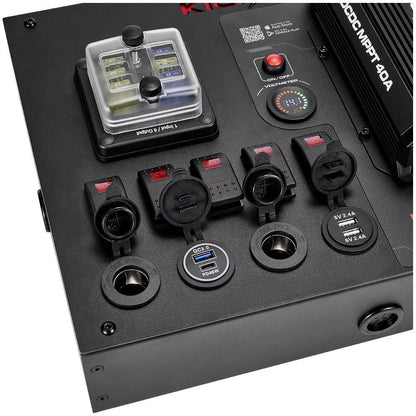

This control hub is built to power up to 15 devices at once, giving you a central point to manage lights, fridges, pumps, inverters and more. The clean front panel layout and simple mounting options make installation straightforward, even in tight canopy builds. Whether you're running a full touring setup or building your first 12V system, this panel keeps everything organised, protected and easy to use.
