KickAss 12V Control Hub / Panel with 40A DCDC Charger
KickAss 12V Control Hub / Panel with 40A DCDC Charger
SKU:KACTRLHB40DCDC
This KickAss control hub lets you easily control all your 12V gear, plus you can charge your auxiliary battery with the pre-installed 40Amp DC/DC charger. Perfect for 4WD canopy & DIY setups.
Specifications
Specifications
| Cig Socket Outputs | 2 x 10A |
| USB Outputs | 2 x USB-A | 1 x USB-C | 1 x QC3.0? |

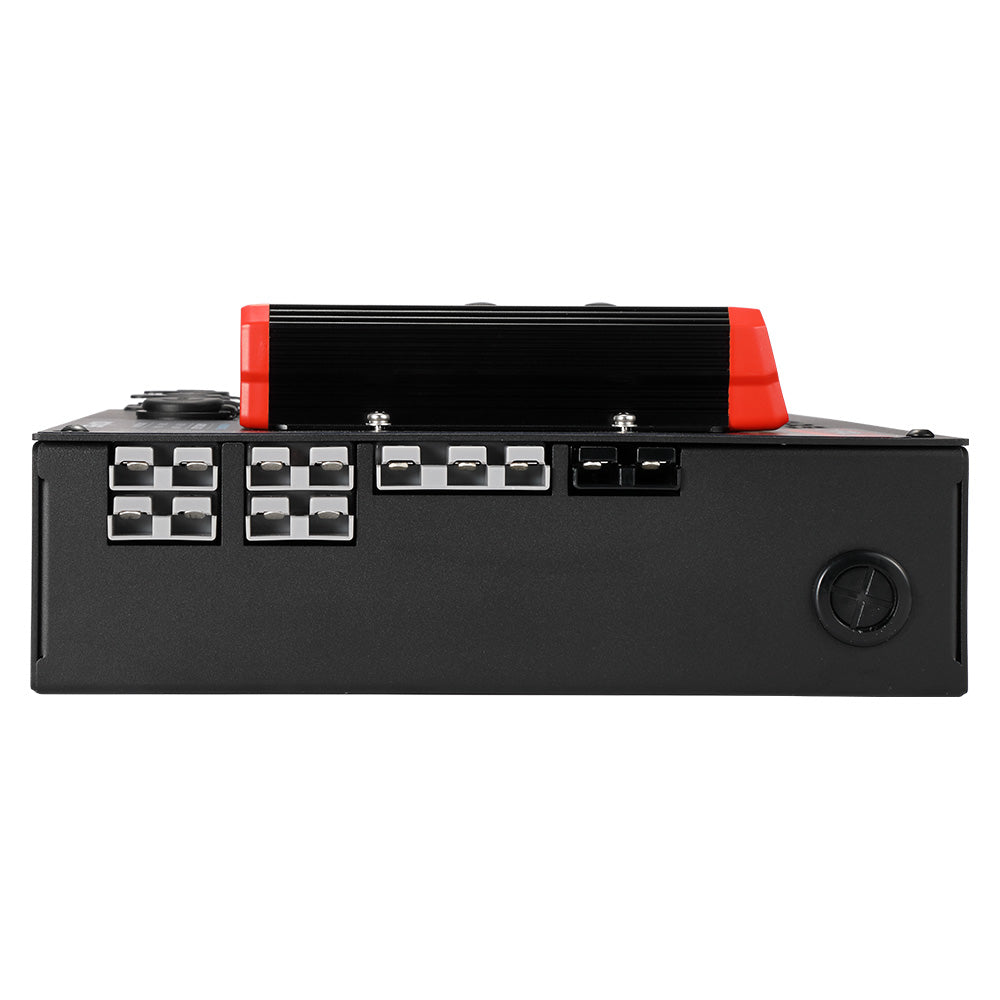

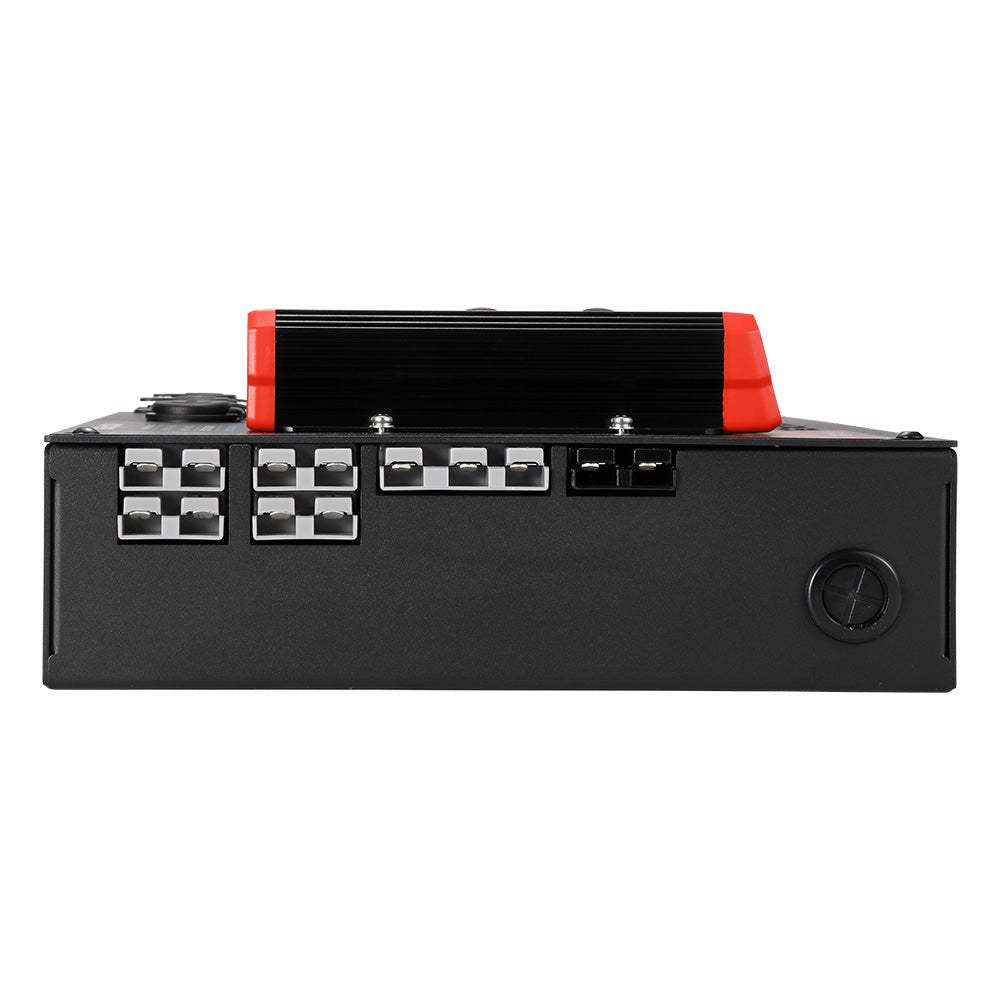

| Anderson Input / Outputs | 4 (50A Shared) |
| Anderson Inputs | 3 Pin Alternator | Unregulated Solar |
| Rocker Switches | 5 (Fused) |
| DCDC-MPPT | |
| Alternator Input Voltage Range | 9-32V DC |
| Solar Input Voltage Range | 10-32V DC |
| Maximum Input Current | 47A |
| Maximum Continuous Charging Current | 40A |
| Maximum Output Power | 500W |
| No Load Current Draw | <15 mA |
| Efficiency | Approx. 93% when full load |
| Ambient Operating Temperature | -20 °C to +80 °C |
| Recommended Battery Capacity | |
| Lead Acid (WET, GEL, AGM, CAL) | 200 – 500Ah |
| LiFePO4 | 50 – 500Ah |
| Charge Profile | |
| Compatible Battery Type | GEL | WET | AGM | CAL | LiFePO4 |
| Alternator Input Conditions | |
| Input Voltage (Ignition OFF) | CUT IN 13.2V | CUT OUT 12.6V | CUT IN 26.4V | CUT OUT 25.2V |
| Input Voltage (Ignition ON) | CUT IN 12.2V | CUT OUT 10.5V | CUT IN 24.4V | CUT OUT 21.0V |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor

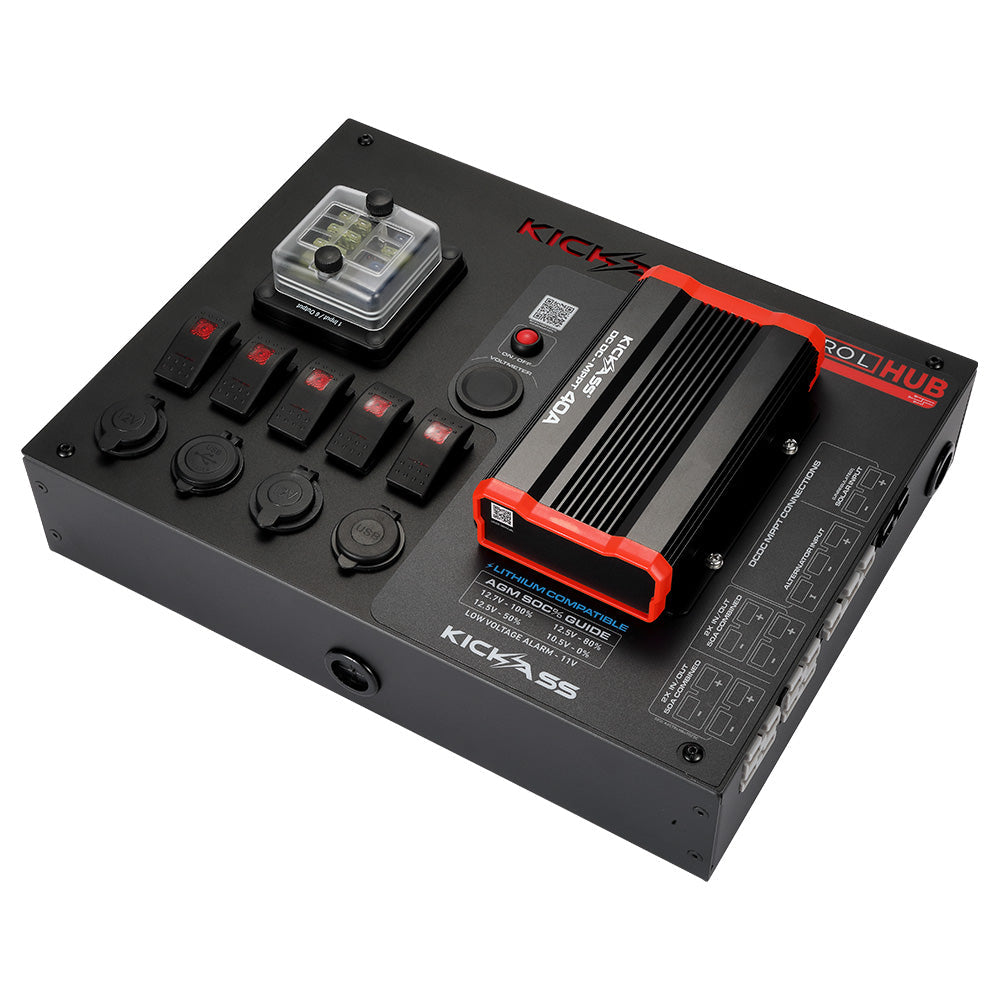

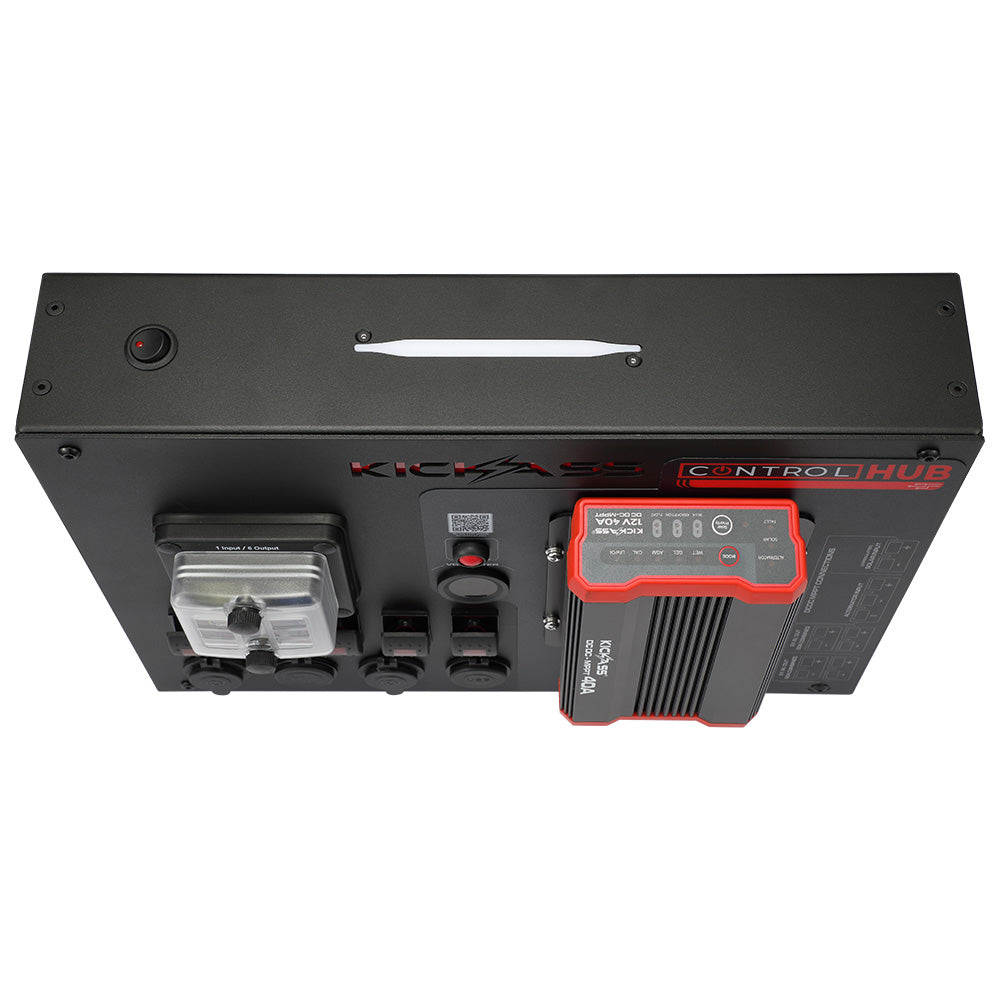

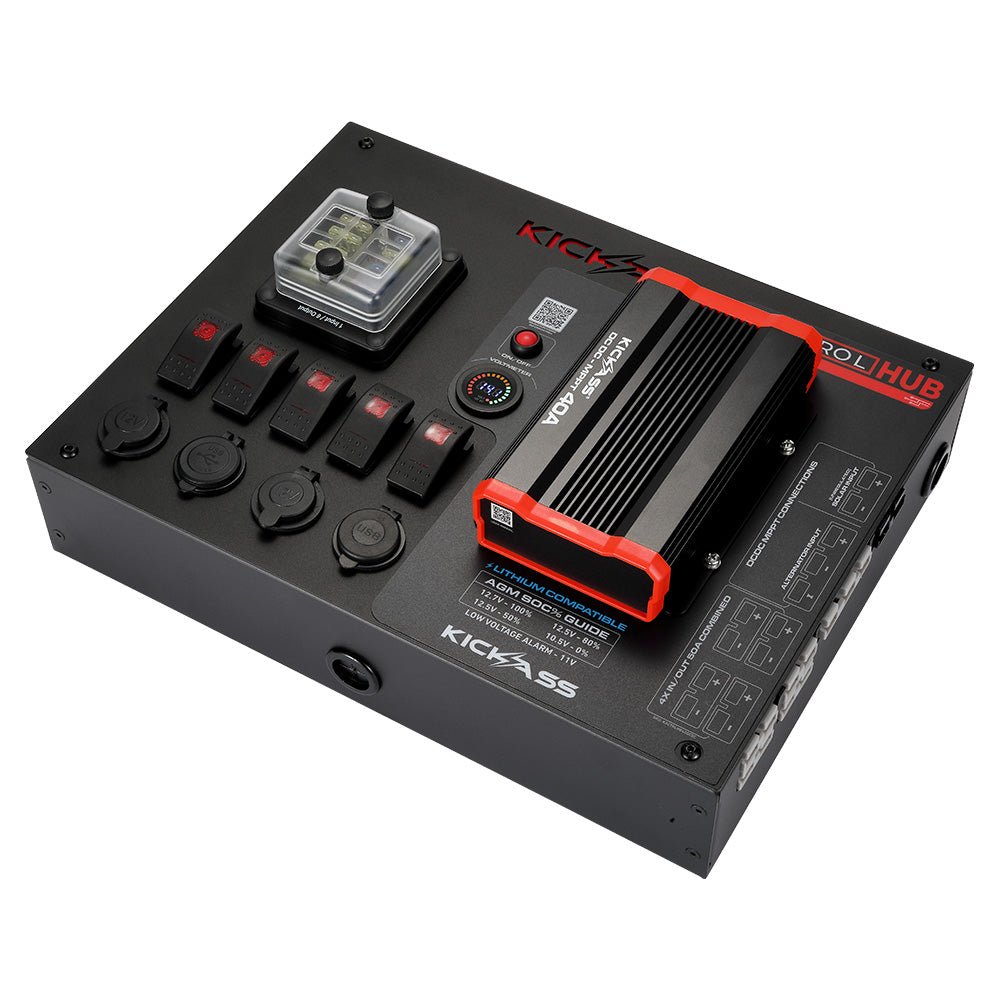

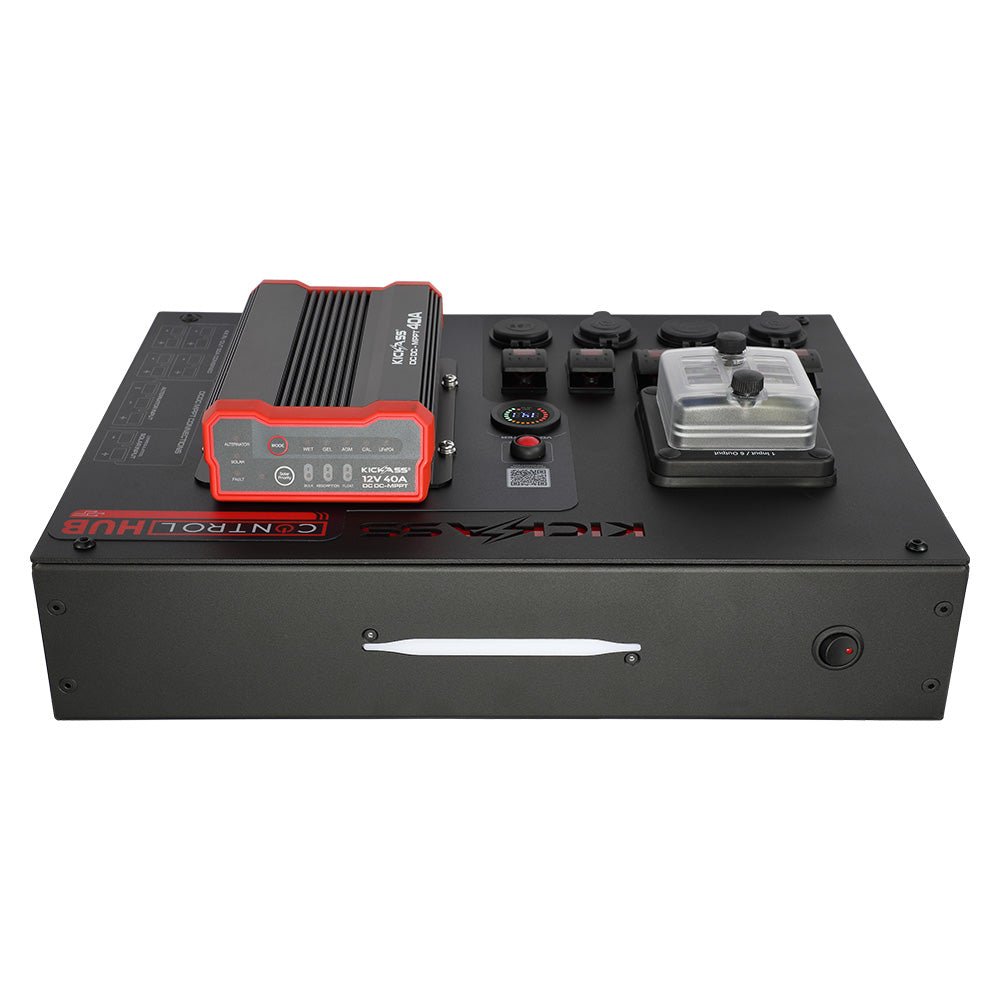

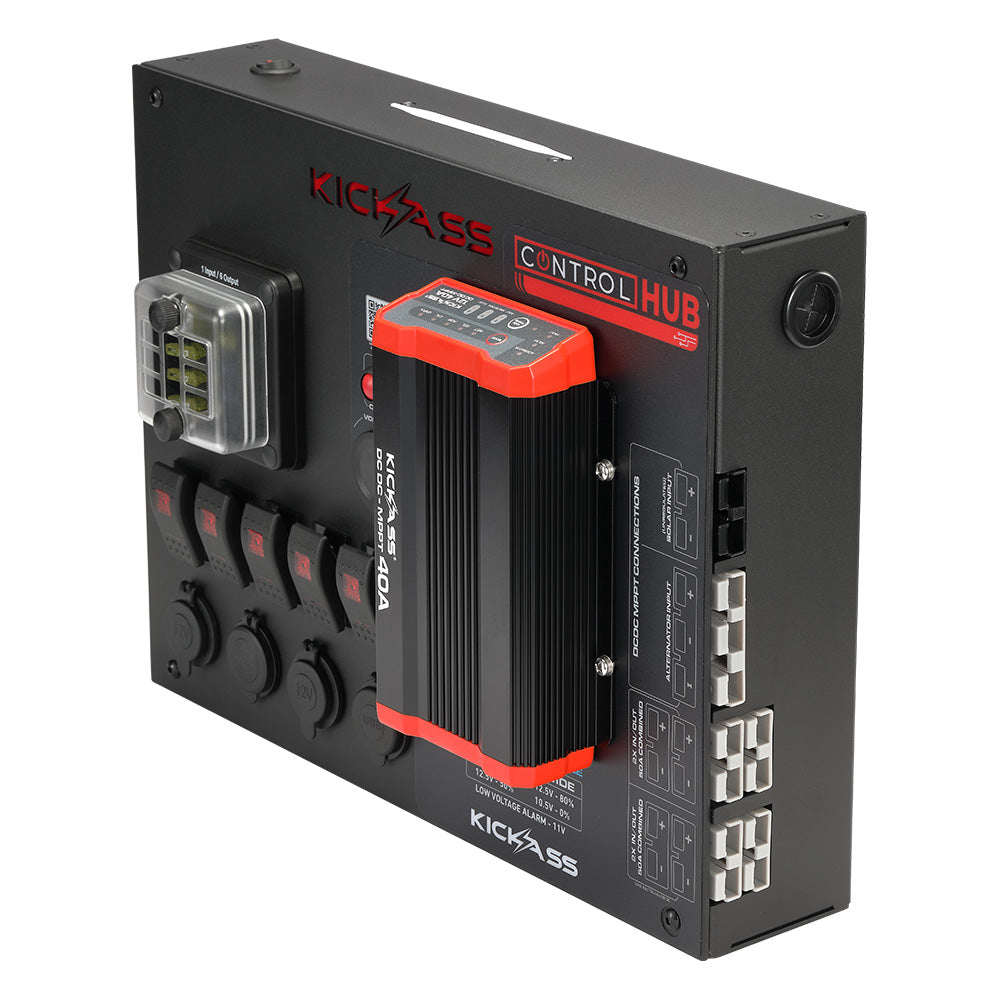

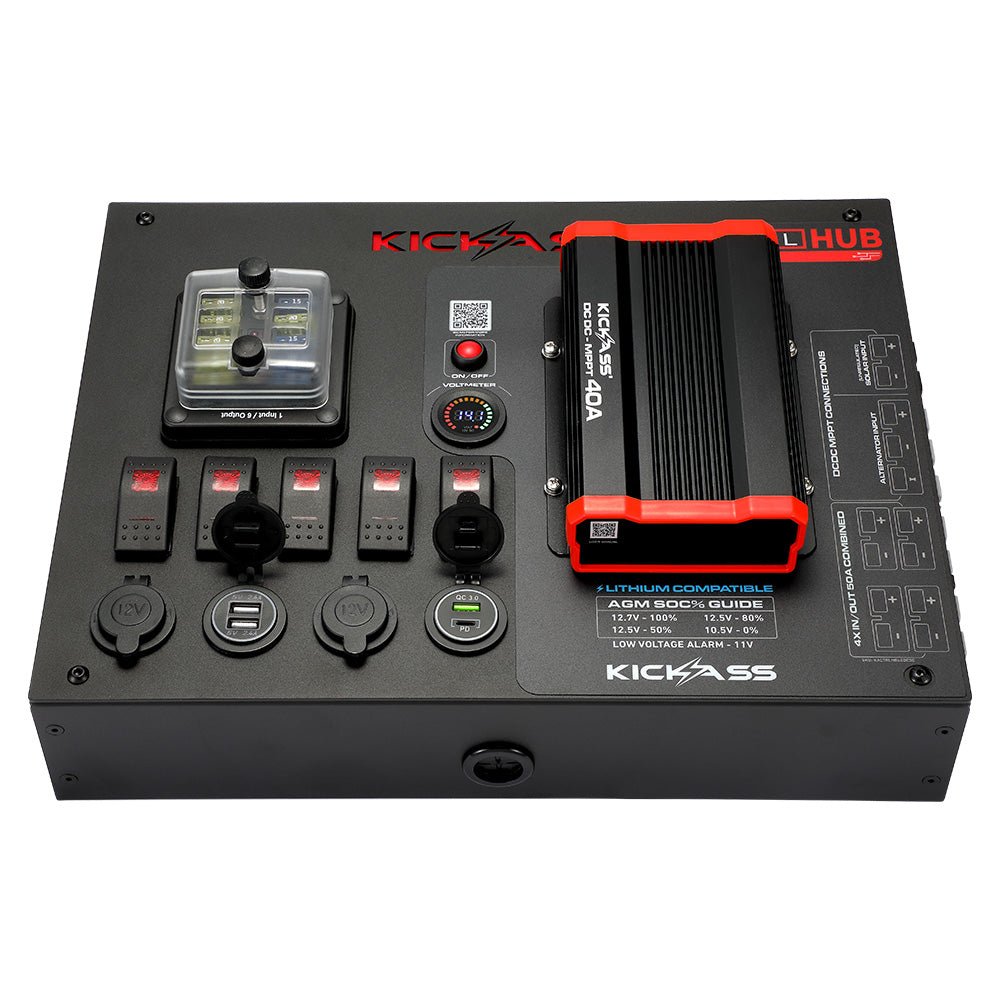

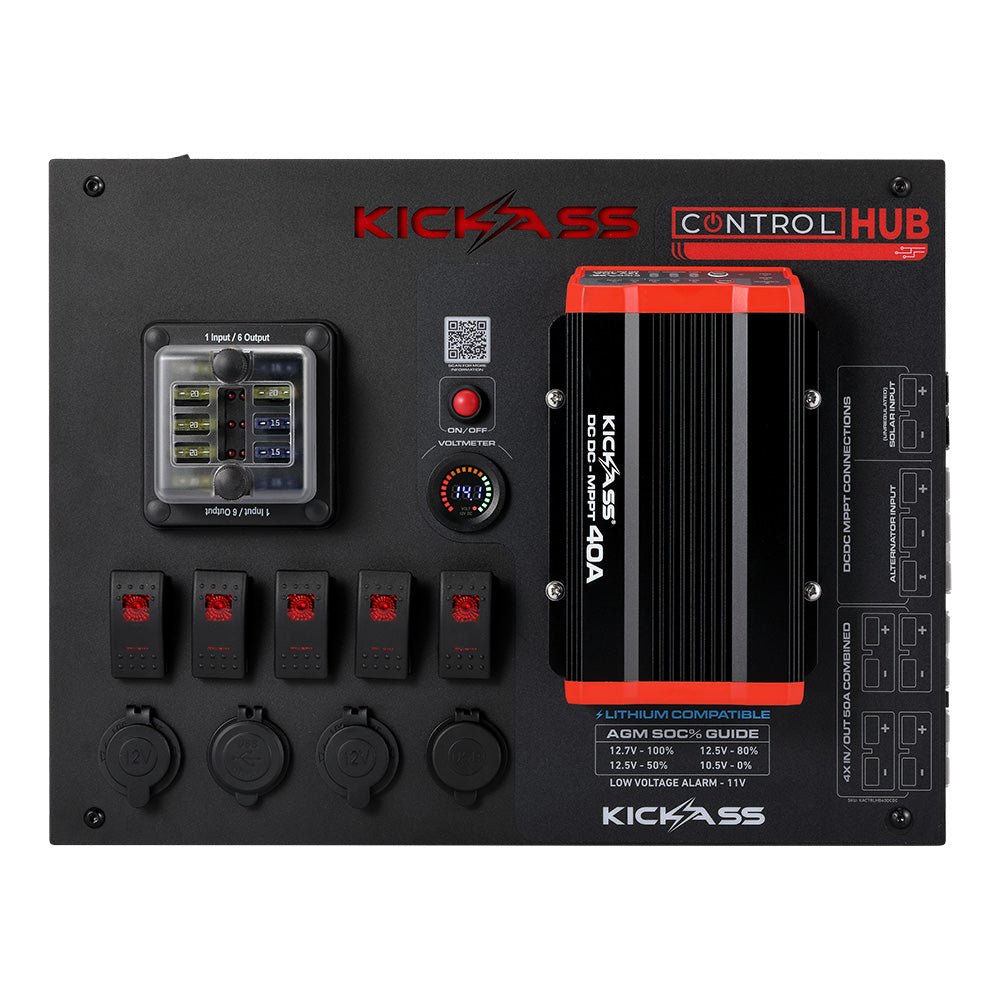

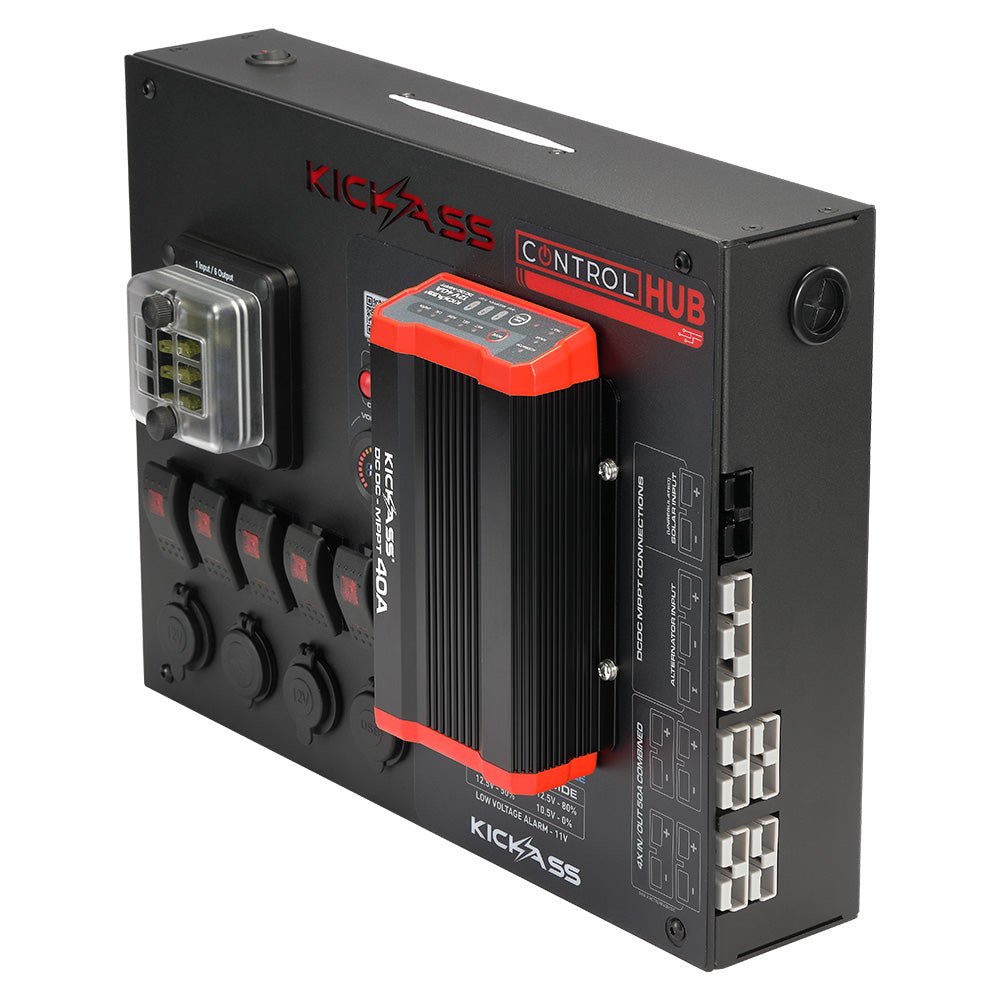

KickAss 12V Control Hub with 40A DCDC Charger
The ultimate power management solution for your dual battery system and off-grid setup. This all-in-one unit integrates a 40A DCDC charger, power distribution for up to 15 devices, and advanced safety features to keep your adventures powered.
Key Features:

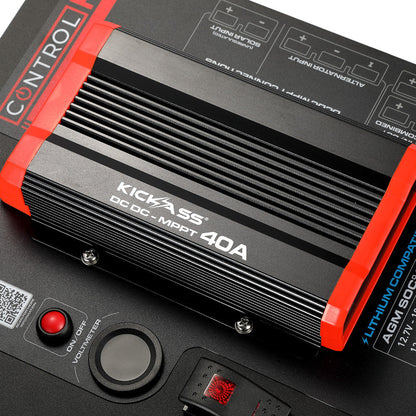

- Integrated 40A DCDC Charger – No need for separate devices, simplifying your dual battery setup.
-
Power Up to 15 Devices at Once

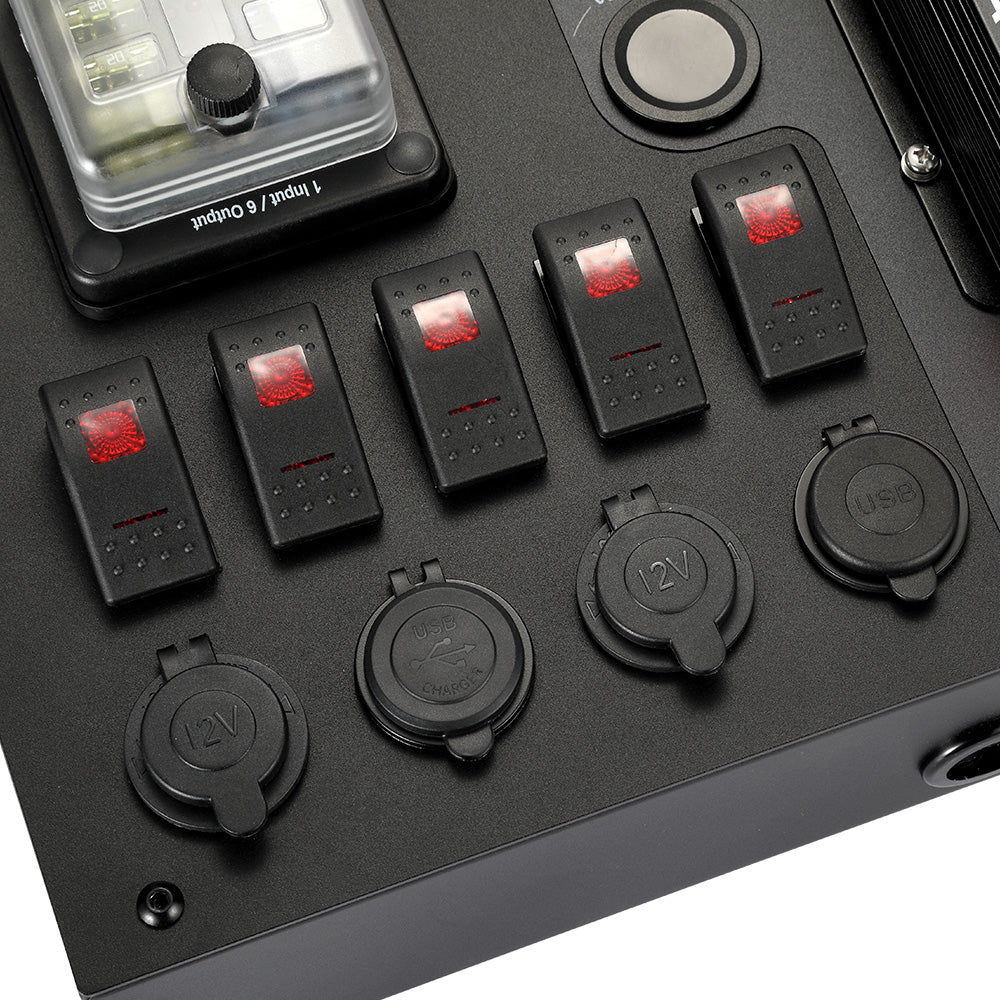

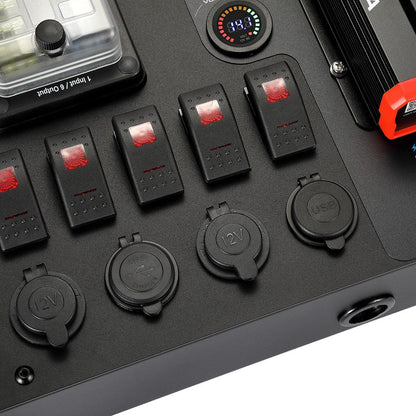

- 5 x Hardwired rocker switches
- 4 x Anderson outputs
- 2 x Cigarette sockets
- 1 x USB-C PD
- 1 x USB QC3.0
- 2 x USB-A
- Hardwired connections for high-power devices (e.g., inverters)
- Built-in Circuit Protection – Fuse block for rocker switches, cig sockets & USBs, plus auto-resettable breakers for Anderson outputs.
- Simple Installation – Pre-drilled mounting holes for easy setup using pop rivets, bolts, or screws. Three cable entry points provide flexible wiring options.
- Dual Battery Charging via Alternator – Compatible with 12V & 24V systems, including smart alternators.
- 500W Solar Input – High-power solar charging ensures reliable off-grid energy.
- Automatic Lithium Battery Recovery Mode – Restores flat lithium batteries automatically, no manual reset needed.
- QC3.0 & USB-C Fast Charging – Charges devices 70% faster than standard USB ports.

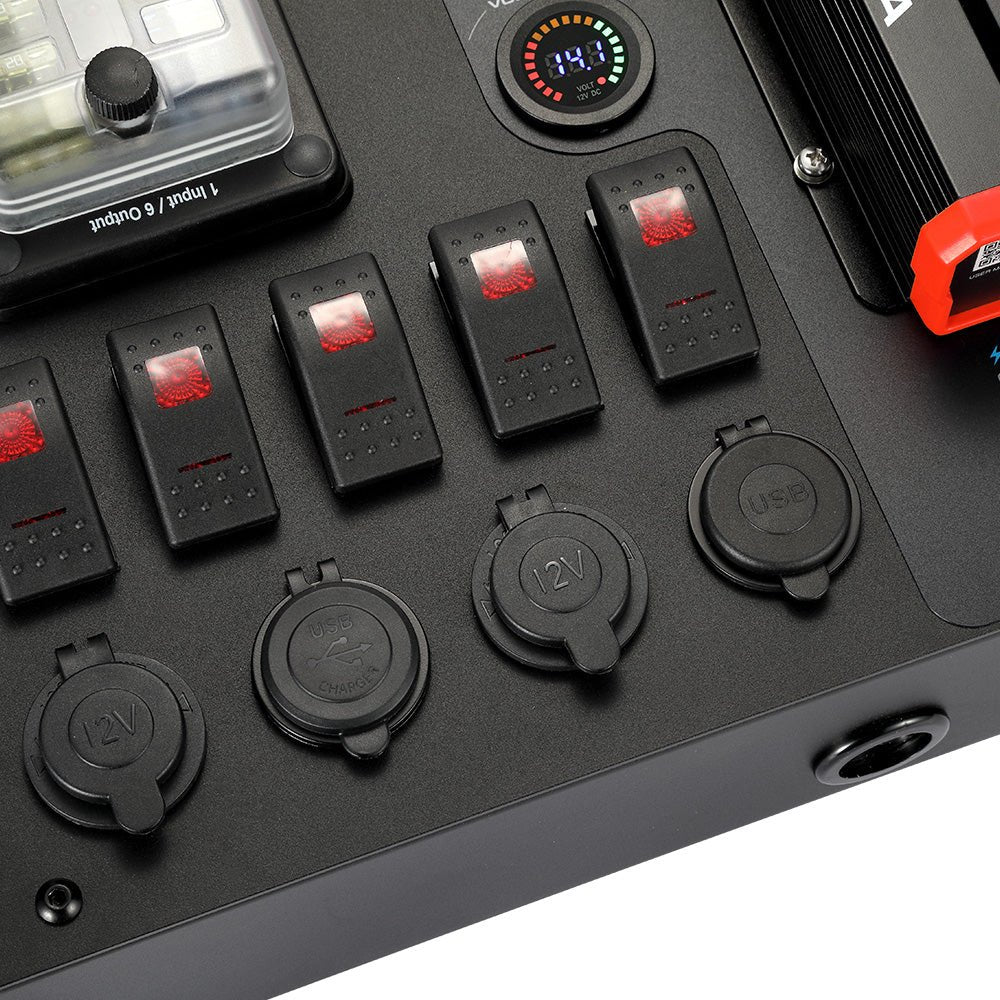

- 5 x 20A Light-Up Rocker Switches – Backlit for easy control, with replaceable fuses for extra protection.

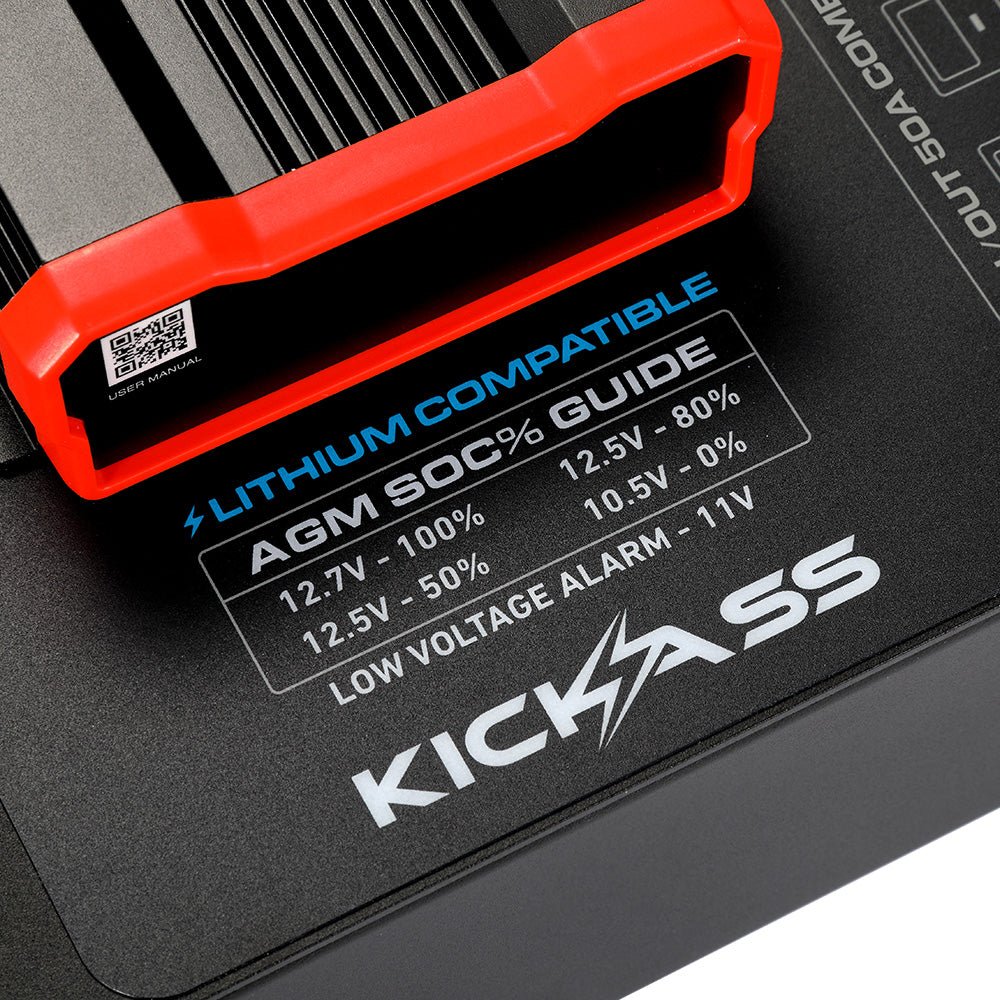

- Pre-Drilled Mounting for KickAss Lithium RDU – Seamlessly mount your Lithium Battery Remote Display for real-time battery monitoring.
Effortless power, wherever adventure takes you!
