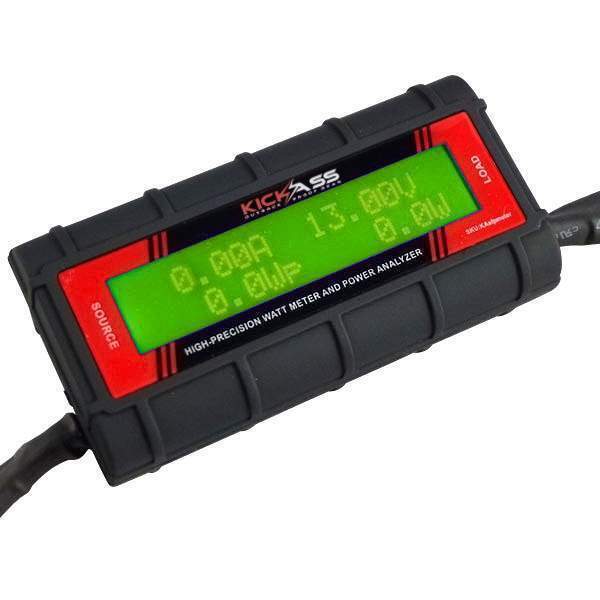

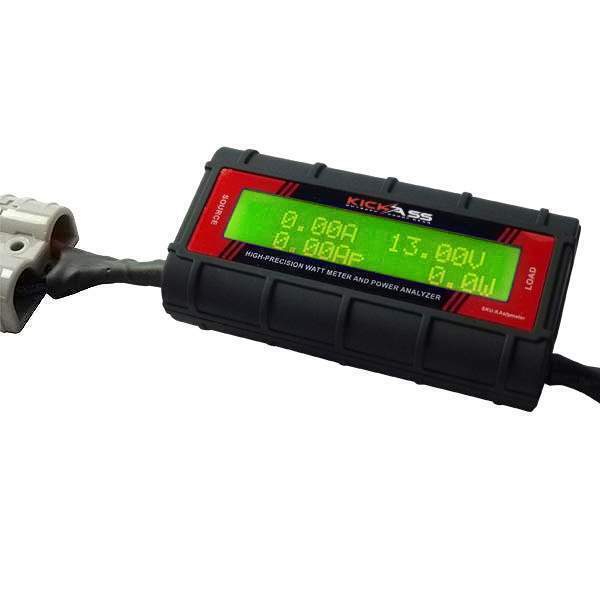

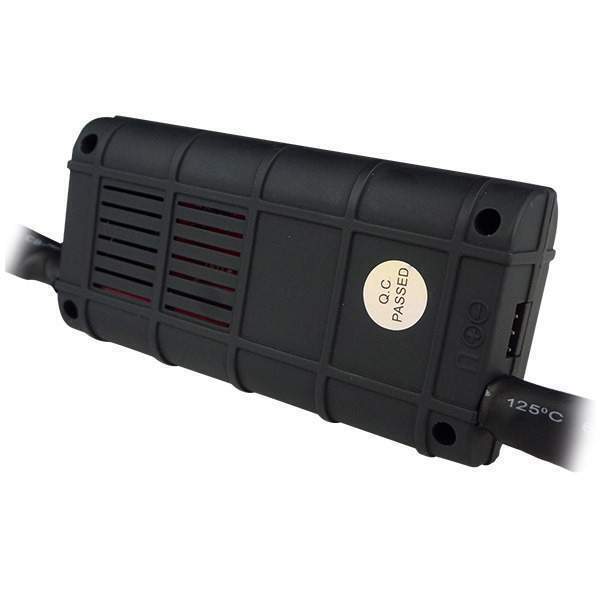

KickAss Digital DC Watt Meter for Portable 12V Solar Panels with Anderson Connection
KickAss Digital DC Watt Meter for Portable 12V Solar Panels with Anderson Connection
SKU:KAMeter1
Measure the charge output from your solar panels or the draw from your 12V fridge. This portable meter is Anderson-compatible, and provides real time readings.
Specifications
Specifications
| Operating Voltage | 0-60V DC |
|---|---|
| Current | 0-100A Intermittent / 50A Continuous |
| Temperature Range | 0-50°C ambient air temperature |
| Measurement Update Period | 400ms |
| Data Queue Sequence Time | 400ms |
| In-Circuit Resistance | 0.001 Ohms |
| Operation Current | 7mA |
| Auxiliary Power Voltage | 4-60V DC |
| Case Dimensions | 84 x 43 x 25mm (L x W x D) |
| Weight | 140g |
| Display | 16 character x 2 row STN LCD |
| Parameter | Range | Resolution |
|---|---|---|
| Voltage | 0-60V DC | 0.01V |
| Current | 0-100A Peak | 0.01A |
| Power | 0-6554W | 0.1KW |
| Charge | 0-65Ah | 0.001Ah |
| Energy | 0-6554Wh | 0.1Wh |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor
KickAss Digital DC Watt Meter
This simple yet extremely handy device gives a digital display of exactly how much charge your panels are producing in real time. Previously, this required special equipment or technical knowledge—until now!
Easily installed, it provides all the key metrics from your solar panels. It's the perfect companion to our range of KICKASS® Portable Solar Panels but is also compatible with most other solar panels.

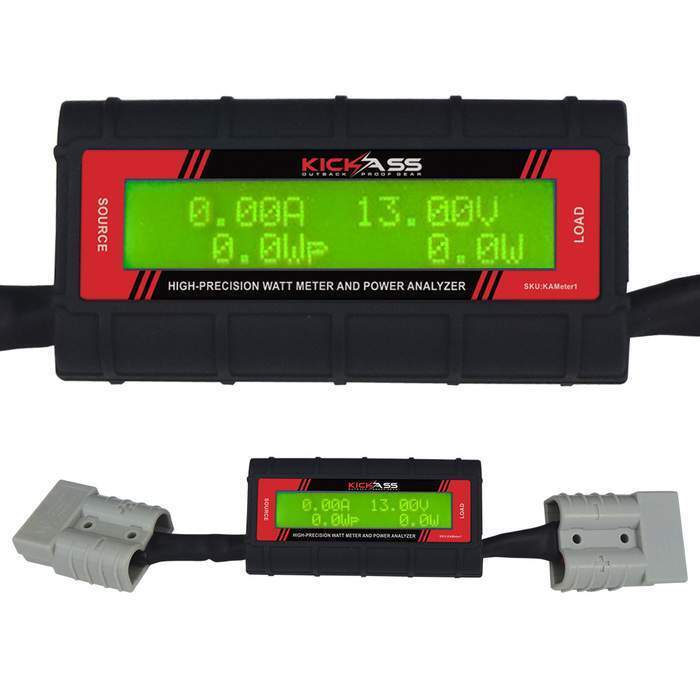

Installation is straightforward—featuring two Anderson plugs, the watt meter fits in-line between your solar regulator and battery/load.
To install: connect the solar panel regulator's output to the "source" side of the watt meter, and the battery/load cabling to the "load" side. Once powered, the display shows the following metrics:
- Current (Amps/A)
- Voltage (Volts/V)
- Power (Watts/W)
- Total Amp Hours (Ah) since startup
- Total Energy (kWh) since startup
- Maximum Voltage (Vm) recorded
- Peak Power (Wp) recorded
- Peak Current (Ap) recorded
The watt meter draws only 7mA to operate, so it won’t significantly impact your system’s output.
Note: This product is not intended for permanent inline installation and does not have long-term memory like a full battery management system.
