What is a PWM Charge Controller?

A PWM charge controller functions by linking the solar panels directly to the battery and managing the voltage. It employs a quick on-off switching method to keep the battery at its ideal charge level.

PWM controllers are straightforward in design, and typically less expensive than MPPT controllers. They are dependable and efficient for solar systems where the operating voltage (Vmp) of the solar array is nearly the same as the battery voltage.

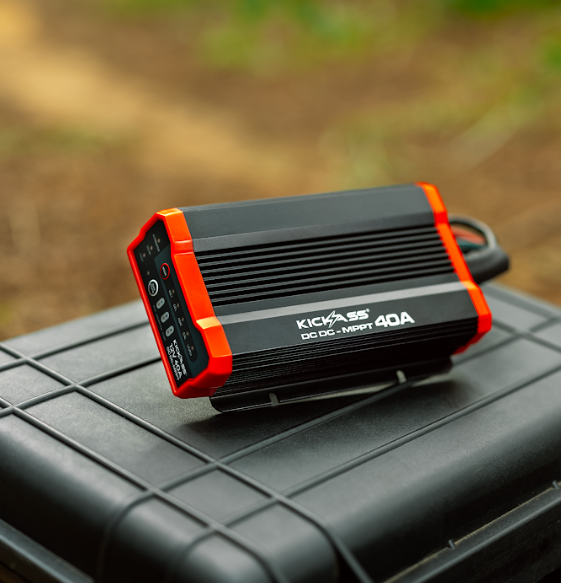

What is an MPPT (Maximum Power Point Tracking) Charge Controller?

An MPPT controller maximizes power output from the solar panels by constantly adjusting the operating voltage of the solar array. This ensures the panels generate the most power possible under various conditions, such as full sunlight, cloudy skies, or partial shading. It then converts the power from the panels to the appropriate voltage and current for charging the battery.

MPPT controllers are more intricate and generally more costly than PWM controllers. They are extremely efficient, especially under changing sunlight conditions, and allow the panels to continue producing power even when partially shaded. They can boost the efficiency of a solar system by up to 30%.

Key Differences Between MPPT and PWM

1. Efficiency:

• PWM: Typically less efficient as it connects the solar panel directly to the battery, leading to potential power loss when the panel voltage exceeds the battery voltage.
• MPPT: Very efficient by converting the higher voltage of the solar array to current, ensuring maximum power is extracted from the solar panels.

2. Performance in Different Conditions:

• PWM: Performance decreases significantly in cold, cloudy, or partially shaded conditions.
• MPPT: Maintains high efficiency across various conditions, adjusting to changes in sunlight to optimize power output. It continues to generate power in cold, cloudy, or partially shaded conditions.

3. System Compatability

• PWM: Best for systems where the Vmp of the solar panel is similar to the battery voltage. Works well with 12V and 24V systems.
• MPPT: Suitable for larger systems and capable of handling higher voltage panels. Compatible with a variety of battery types and voltages, including 12V, 24V, and 48V systems.

4. Cost:

• PWM: More budget-friendly, making them a cost-effective option for simpler or smaller solar installations.
• MPPT: More costly but provides better long-term savings due to higher efficiency and superior performance.

When to Choose a PWM Charge Controller

• Small Solar Systems: Ideal for modest solar setups where the panel and battery voltages are closely matched.
• Budget Constraints: If keeping the initial cost low is important, PWM controllers offer a dependable and cost-effective solution.
• Stable Sunlight Conditions: Suitable for areas with consistent weather and reliable sunshine, where a PWM controller can adequately meet your needs.

When to Choose an MPPT Charge Controller

• High Voltage Solar Systems: Best for setups where the solar array Vmp exceeds the battery voltage.
• Fluctuating Sunlight Conditions: Ideal for regions with inconsistent sunlight, such as cloudy or shaded areas, or variable weather.
• Maximized Performance: If you want maximum efficiency and long-term cost savings, an MPPT controller is the optimal choice.
• Versatility in Voltage: Suitable for 24V, 48V, or higher voltage battery systems, making them adaptable for a range of applications.


Conclusion

Deciding between an MPPT and PWM charge controller hinges on your unique requirements and the features of your solar power system. PWM controllers are a budget-friendly option for smaller systems in areas with consistent sunlight. On the other hand, MPPT controllers offer greater efficiency and performance, particularly for larger systems and environments with variable conditions. To achieve optimal results and make the most of your solar investment, check out our selection of KickAss Solar Charge Controllers designed to enhance your off-grid experiences.
