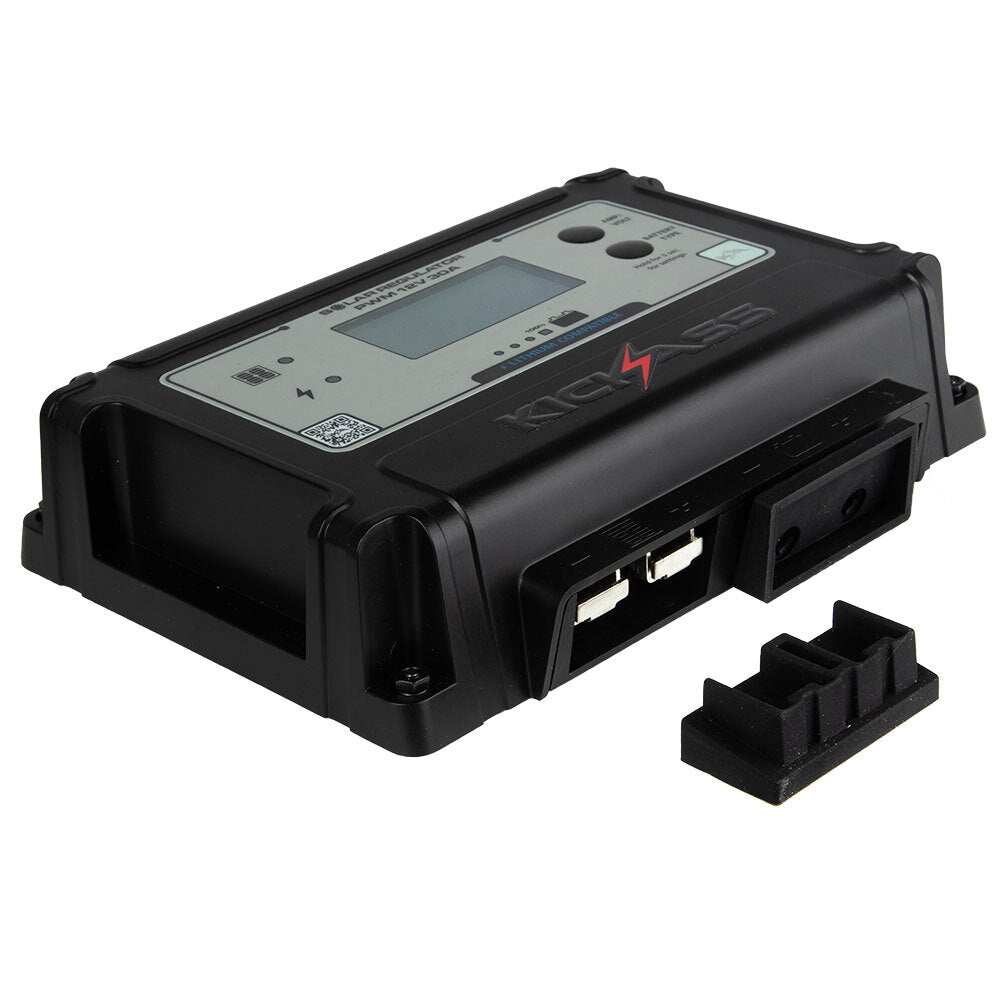

KickAss 30A PWM Solar Regulator
KickAss 30A PWM Solar Regulator
SKU:KAPWM30A
Get maximum charge from your solar. Our 30A PWM Solar Controller will efficiently and safely supply the correct charge to your auxiliary batteries. Perfect with our KickAss Electric Blanket.
Specifications
Specifications
| Electrical Parameters | ||
|---|---|---|
| Rated solar panel amps | 30 | Max AMP |
| Normal input Solar cell array voltage | 15–22 | VDC |
| Max. solar cell array voltage (output has no load) | 25 | Max VDC |
| The controller lowest operating voltage at solar or battery side | 8 | Min VDC |
| Standby current consumption at night | 5 | Max mA |
| Maximum voltage drop - Solar panel to battery | 0.25 | Max VDC |
| Charging Characteristics | ||
| Minimum battery start charging voltage | 3 | Min VDC |
| Soft start charging voltage | 3–10 | +/- 0.2 VDC |
| Soft start charging current (50% PWM duty) | Up to 15/20 | AMP |
| Bulk charge | By the maximum rated current | |
| Bulk charge level1 for Lead Crystal battery | By 100% maximum rated current charge up to 14.4V from 14.4V | |
| Absorption charging voltage at 25°C - Lead Crystal battery | 14.7 | +/- 0.2 VDC |
| Absorption charging voltage at 25°C - Gel type battery | 14.1 | +/- 0.2 VDC |
| Absorption charging voltage at 25°C - AGM type battery (default) | 14.4 | +/- 0.2 VDC |
| Absorption charging voltage at 25°C - WET type battery | 14.7 | +/- 0.2 VDC |
| Absorption charging voltage at 25°C - Calcium type battery | 14.9 | +/- 0.2 VDC |
| Absorption charging voltage at 25°C - LTO battery | 14.0 | +/- 0.2 VDC |
| Absorption charging voltage at 25°C - LFP battery | 14.5 | +/- 0.2 VDC |
| Absorption charging voltage at 25°C - Li-ion battery | 12.6 | +/- 0.2 VDC |
| Absorption transits to Equalizing or Float condition: Charging current drops to | 1.5 | +/- 0.1 AMP |
| Absorption timer timeout | 4 | Hour |
| Equalization charging active | Only for WET or Calcium battery | |
| Battery voltage discharged to less than | 10 | +/- 0.2 VDC |
| Automatic equalizing charging periodical | 28 | Day |
| Equalization charging voltage at 25°C | 15.5 | +/- 0.2 VDC |
| Equalization charging timer timeout | 2 | Hour |
| Float voltage (for Crystal, GEL, WET, Calcium, AGM battery) at 25°C | 13.8 | +/- 0.2 VDC |
| Restart voltage for LTO battery | 13.2 | +/- 0.2 VDC |
| Restart voltage for LFP battery | 13.4 | +/- 0.2 VDC |
| Restart voltage for Li-ion battery | 12.0 | +/- 0.2 VDC |
| Voltage control accuracy | +/- 1% | |
| Battery temperature compensation coefficient | -24 | mV/°C |
| Protection | ||
| Against reverse polarity or short circuit at panel or battery | Yes | |
| Over temperature protection during charging | 65 | °C |
| Electrical Connections | ||

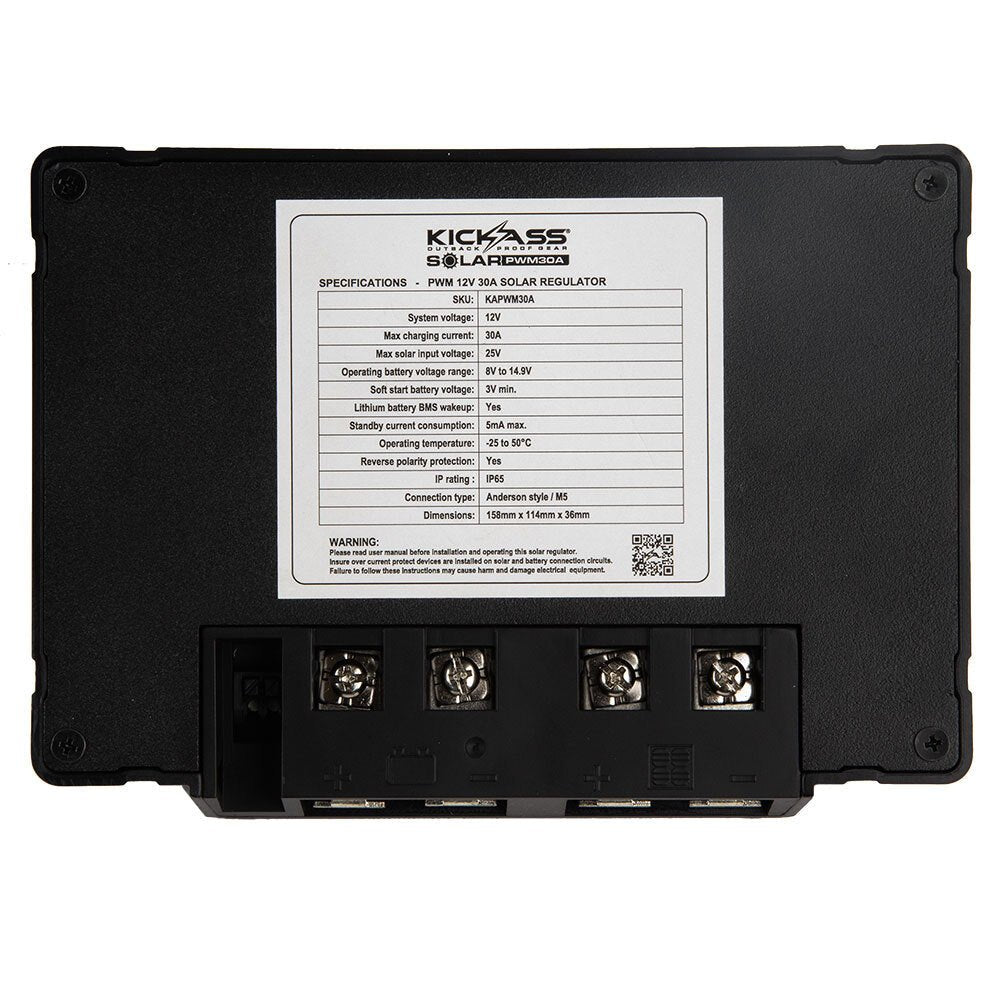

| Input output terminal | M5 Terminal Screw / Anderson style | |
| Physical Parameters | ||
| Controller material | Plastic, Standard ABS | |
| Power terminal maximum stranded wire size | #6 AWG stranded - 16 mm² | |
| Power terminal torque | Up to 17 in-lb (0.2N-m) | |
| Mounting | Vertical wall mounting | |
| IP grade | IP65 | |
| Net weight | Approx. 300g | |
| Environmental Characteristics | ||
| Operating temperature | -25 ~ 50°C / -13 ~ 122°F | |
| Storage temperature | -40 ~ 85°C / -40 ~ 185°F | |
| Operating humidity range | 100% no condensation | |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor
KickAss 12V 30A PWM Solar Controller Feature Overview
Automatic 5 Stage Smart Charging
Advanced algorithms enhance the overall charging performance of the 12V PWM Solar Controller. The charging cycle includes a float stage that automatically restarts once the battery drops below the required voltage.

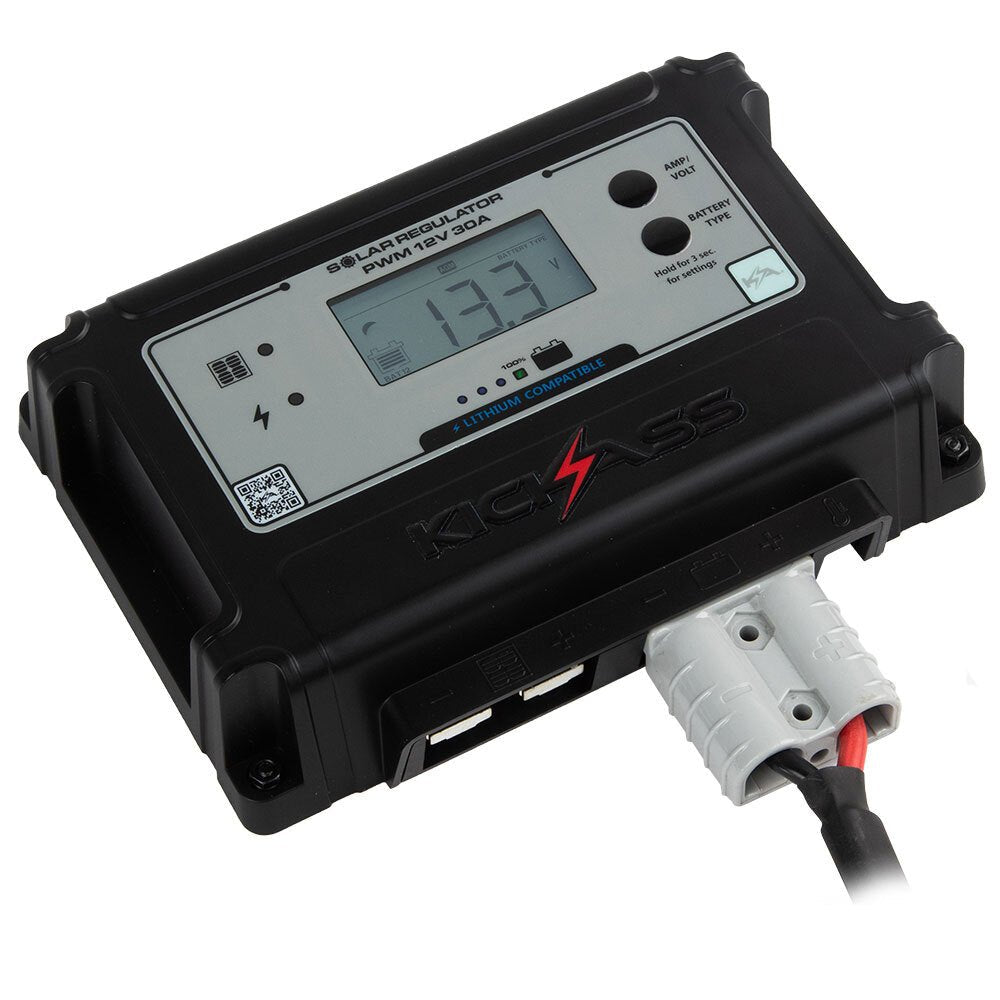

Anderson Style Connectors for Plug & Play (Optional Extra)
Don't let a dodgy connection ruin your weekend away. The Anderson style connectors provide a secure, solid connection that delivers uncompromising charge.
Lightweight & Portable
Weighing only 40 grams, the KickAss 30A PWM is an ultralight solar controller perfect for pairing with the portable 160W Solar Blanket. Ideal for anyone needing a lightweight, portable solution for their 12V solar setup.

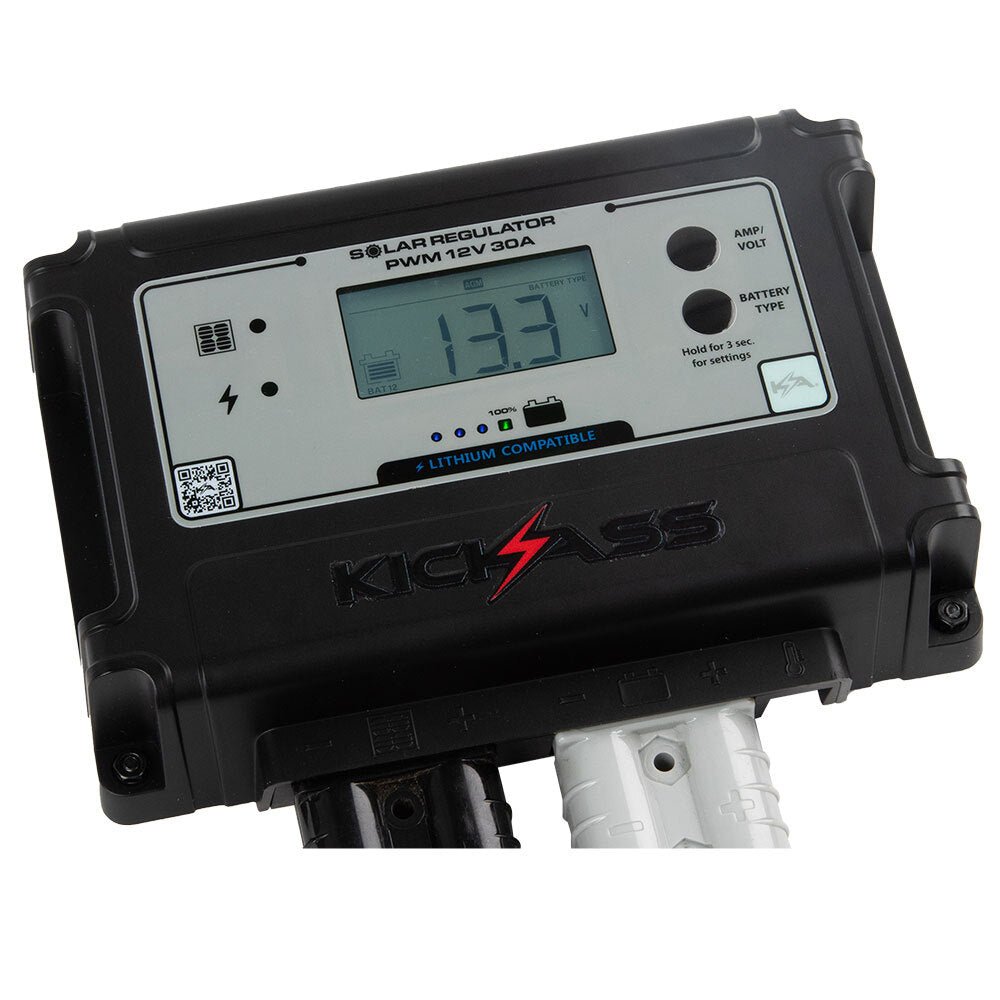

LCD Display for Solar Input Monitoring
The crystal-clear display allows you to easily view charge status, battery voltage, overall charged capacity, battery type, charge percentage, battery temperature, and fault codes.
Lithium Activation Mode
If your lithium battery drops below the safety voltage parameters of the BMS, the lithium activation mode will trigger, causing the PWM controller to charge the battery until it reaches the cut-in voltage and resumes normal charging cycles automatically.
Multi-Chemistry Battery Compatibility
Compatible with AGM, Gel, Sealed Lead Acid, Wet, Lead Crystal, Li-Ion Series, and LiFePO4 batteries. Perfect for charging various battery types including starter, deep cycle, marine, powersports, and more.

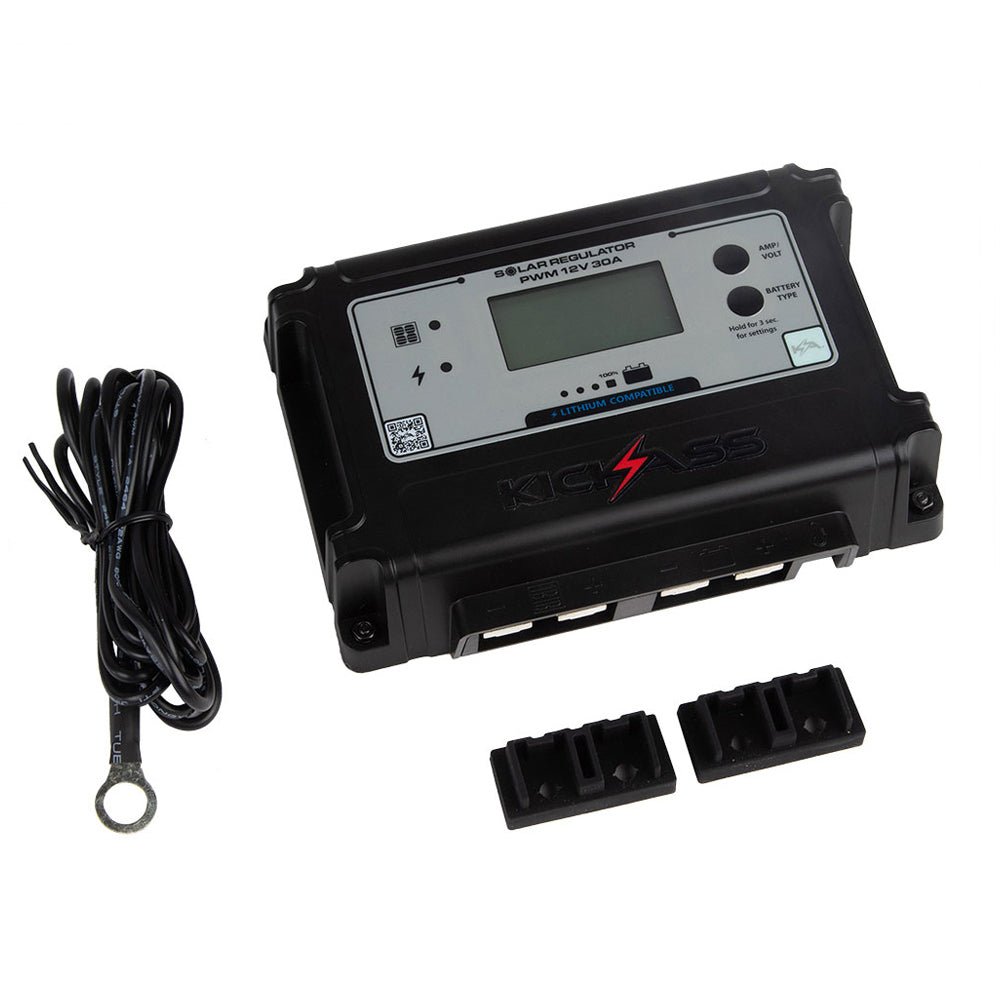

Battery Temperature Sensor
If a fault occurs with your battery, the temperature probe senses overheating and limits the current output to prevent overcharging.

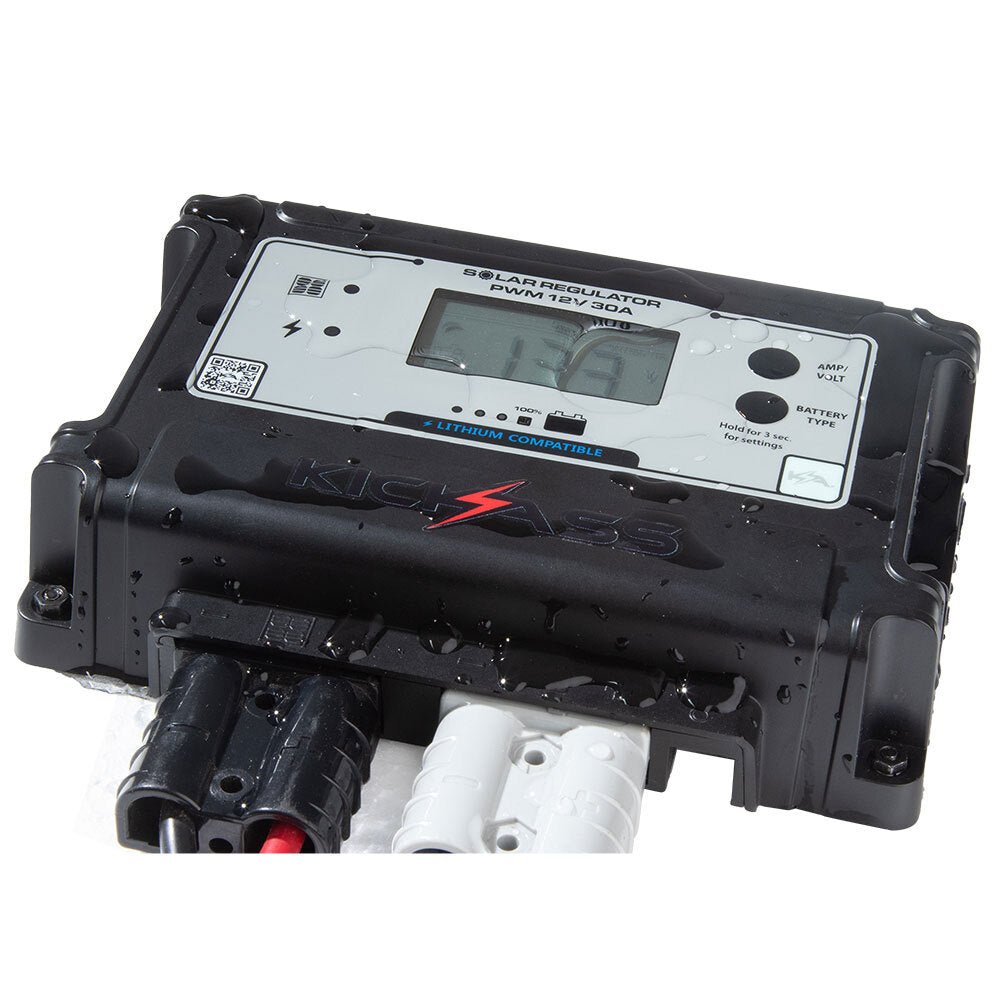

IP65 Dust & Water Resistant
Protected against dust and water, featuring dust covers for the terminals when not in use. Note: This unit is not waterproof and should not be permanently mounted outdoors.
