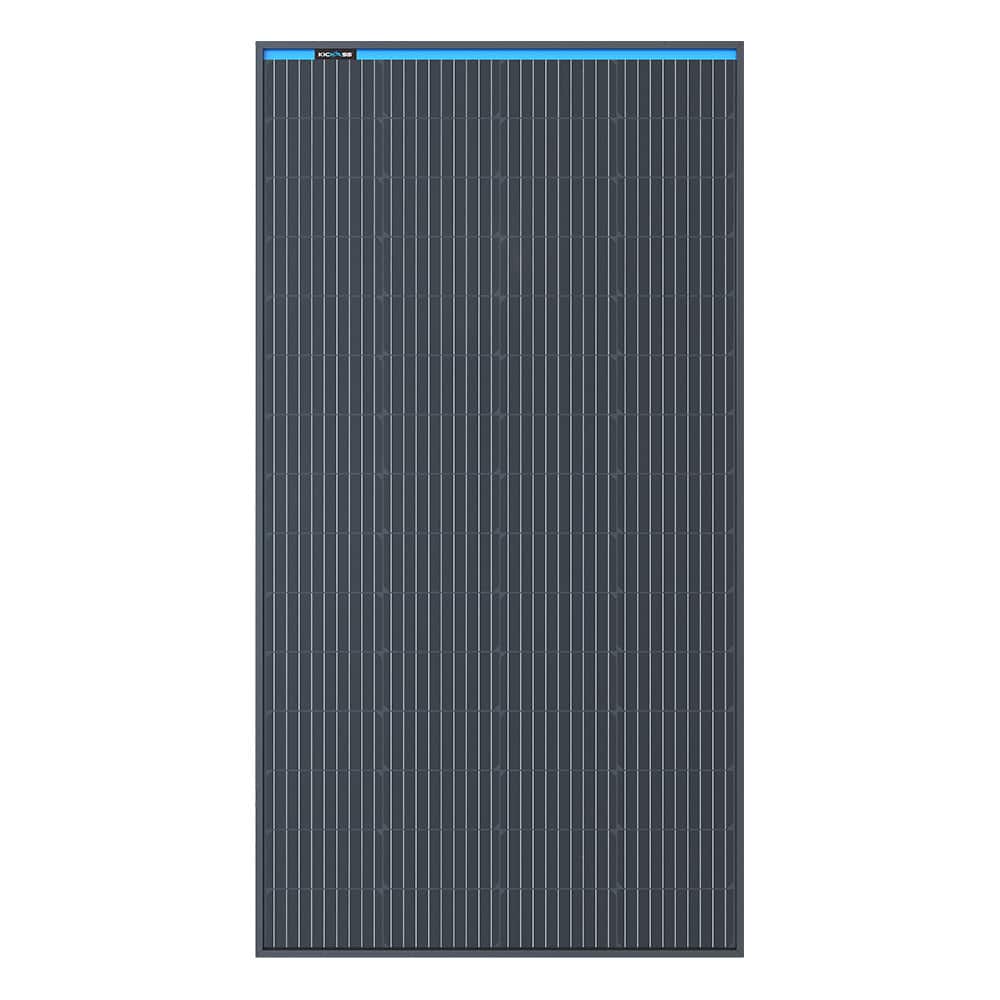

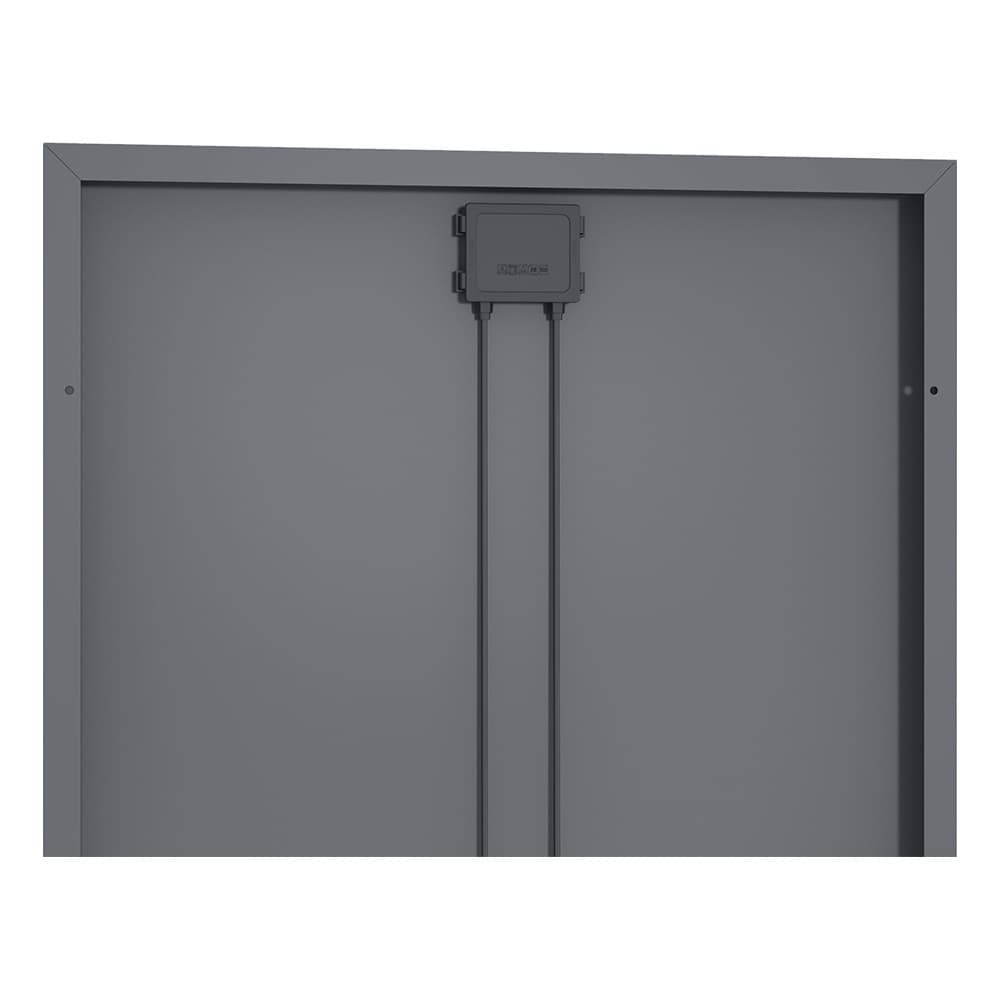

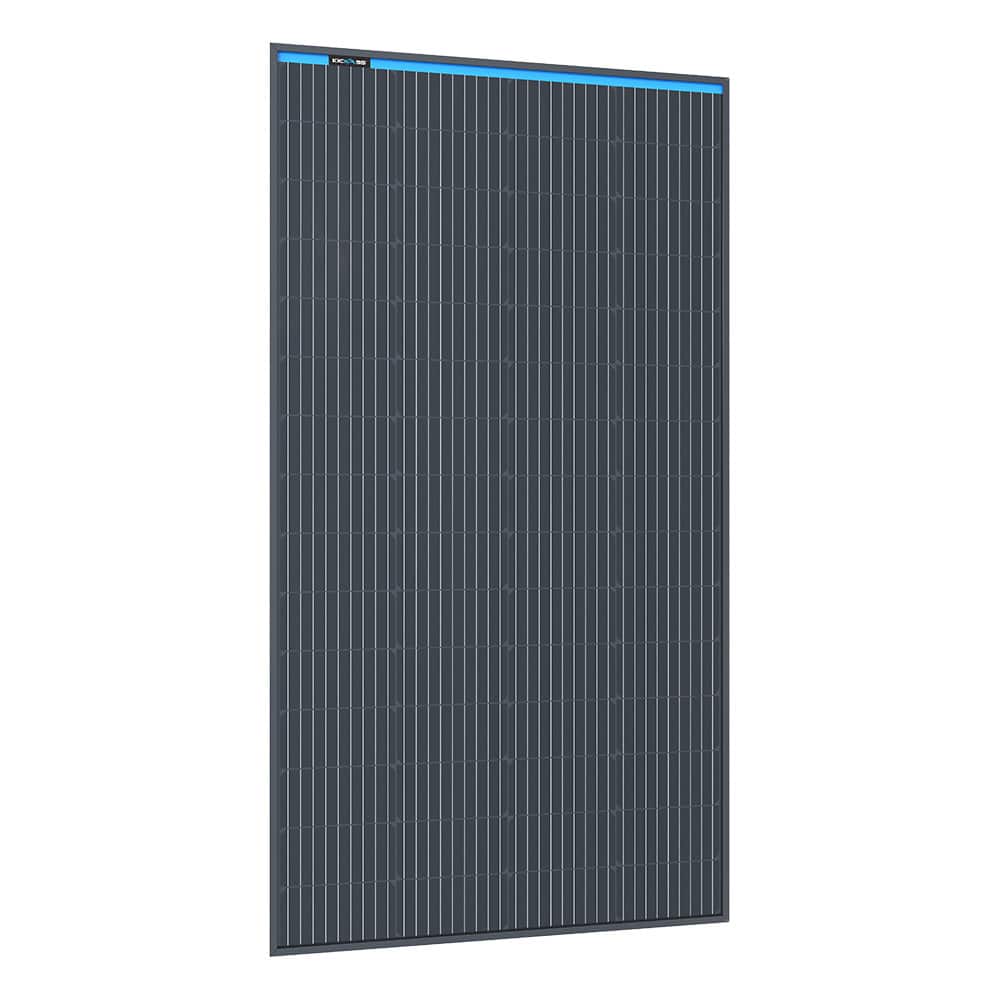

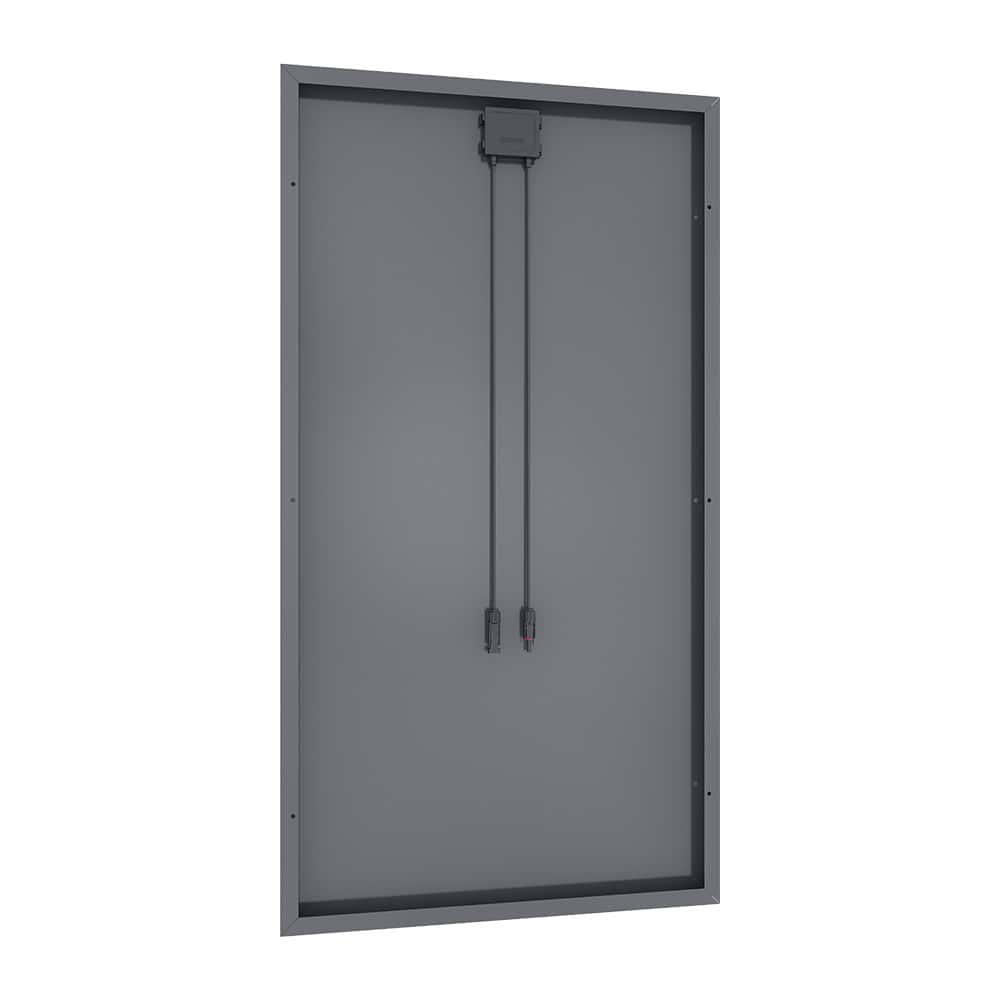

Glass Top Roof Top Solar Panel 170 Watts
Glass Top Roof Top Solar Panel 170 Watts
Glass Top Roof Top Solar Panel 170 Watts
Glass Top Roof Top Solar Panel 170 Watts
Glass Top Roof Top Solar Panel 170 Watts

Glass Top Roof Top Solar Panel 170 Watts

  • SKU: KARTSP170
$229.00
In Stock

    Product Information

    Glass Top Roof Top 12V Solar Panel 170 Watts Glass Top Roof Top 12V Solar Panel 170 Watts Glass Top Roof Top 12V Solar Panel 170 Watts Glass Top Roof Top 12V Solar Panel 170 Watts Glass Top Roof Top 12V Solar Panel 170 Watts Glass Top Roof Top 12V Solar Panel 170 Watts Glass Top Roof Top 12V Solar Panel 170 Watts Glass Top Roof Top 12V Solar Panel 170 Watts

    Specifications

    Specification   Imperial
    Max power (Pmax)   170W
    Max power voltage (Vmp)   18.46V
    Max power current (Imp)   9.2A
    Open circuit voltage (Voc)   21.66V
    Short circuit current (Isc)   10.6A
    Dimensions   51.77in x 27.17in x 1.38in
    Weight   22.49lb
    Frame   Black powder coated aluminium
    Application class   Class A
    Fire safety class   Class C
    Maximum system voltage   1000 VDC
    Operating temperature   -40°F to 185°F
    Nominal operating cell temperature   116.6°F
    Connector type   Water proof PV Connector
    Standard test condition   1000 W/m^2 AM1.5°25°
    Power tolerance   +/-5%
    Dimension tolerance   +/-0.08in
    Conversion efficiency   20.6%

    Product Manual

    For more detailed information download our manual

    Product Manual

    Warranty

    1 Year Warranty
