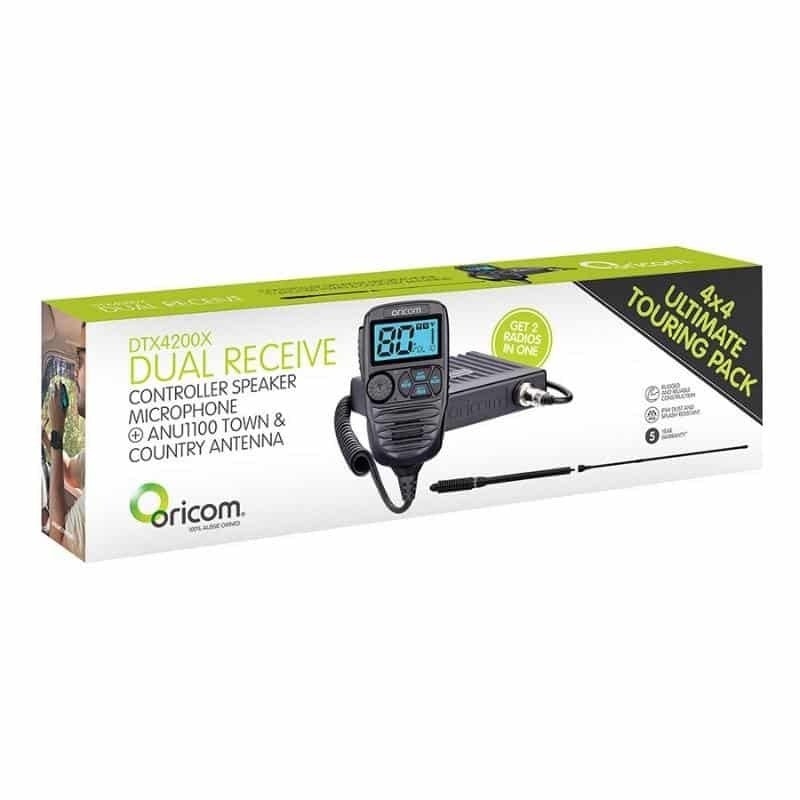

IP54 Dual Receive Controller Speaker Microphone UHF CB Radio
IP54 Dual Receive Controller Speaker Microphone UHF CB Radio
SKU:DTX4200XPK
Specifications
Specifications
| Auto Power Off | Off / 1h / 2h / 4h |
| External Speaker Jack | 3.5mm jack for optional external speaker |
| Included Accessories | 2m microphone extension cable and mounting hardware |
| Transceiver Dimensions | 31mm x 128mm x 147mm |
| Antenna | 3dBi UHF CB with heavy-duty custom spring base (430mm length) |
| Extension Whip | 600mm fiberglass whip converts antenna to 1m, 6.5dBi gain |
| Coaxial Cable | 4.5m included |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor
DTX4200XP Key Features:
- Ergonomic, professional-grade controller speaker microphone
- IP54 dust and splash resistant
- Loud and clear audio with speakers in both the microphone and transceiver
- Extra-large backlit display for easy viewing
- Intuitive jog wheel for primary function access
- Heavy-duty die-cast metal chassis
- 3 memory groups with 16 channels per group
- 96 multi-colour backlit display
- Backlight brightness with 5 presets plus auto
- Fast scan of 80 channels in under 3 seconds
- Jog wheel control for volume, channel, and squelch
- Duplex function
- 38 CTCSS & 104 DCS codes
- Transmit power indicator
- Slide-in mounting bracket
- Auto power off (Off/1h/2h/4h)
- 3.5mm jack for optional external speaker
- Includes 2m microphone extension cable and mounting hardware
- Transceiver dimensions: 31mm x 128mm x 147mm
ANU1100 Antenna:
- 3dBi UHF CB antenna with heavy-duty custom spring base (length: 430mm)
- 600mm fiberglass extension whip converts antenna to a 1m, 6.5dBi high-gain antenna
- 4.5m coaxial cable included
- Includes grub screw and hex key for securing the fiberglass pole
*Length of antenna includes spring base
