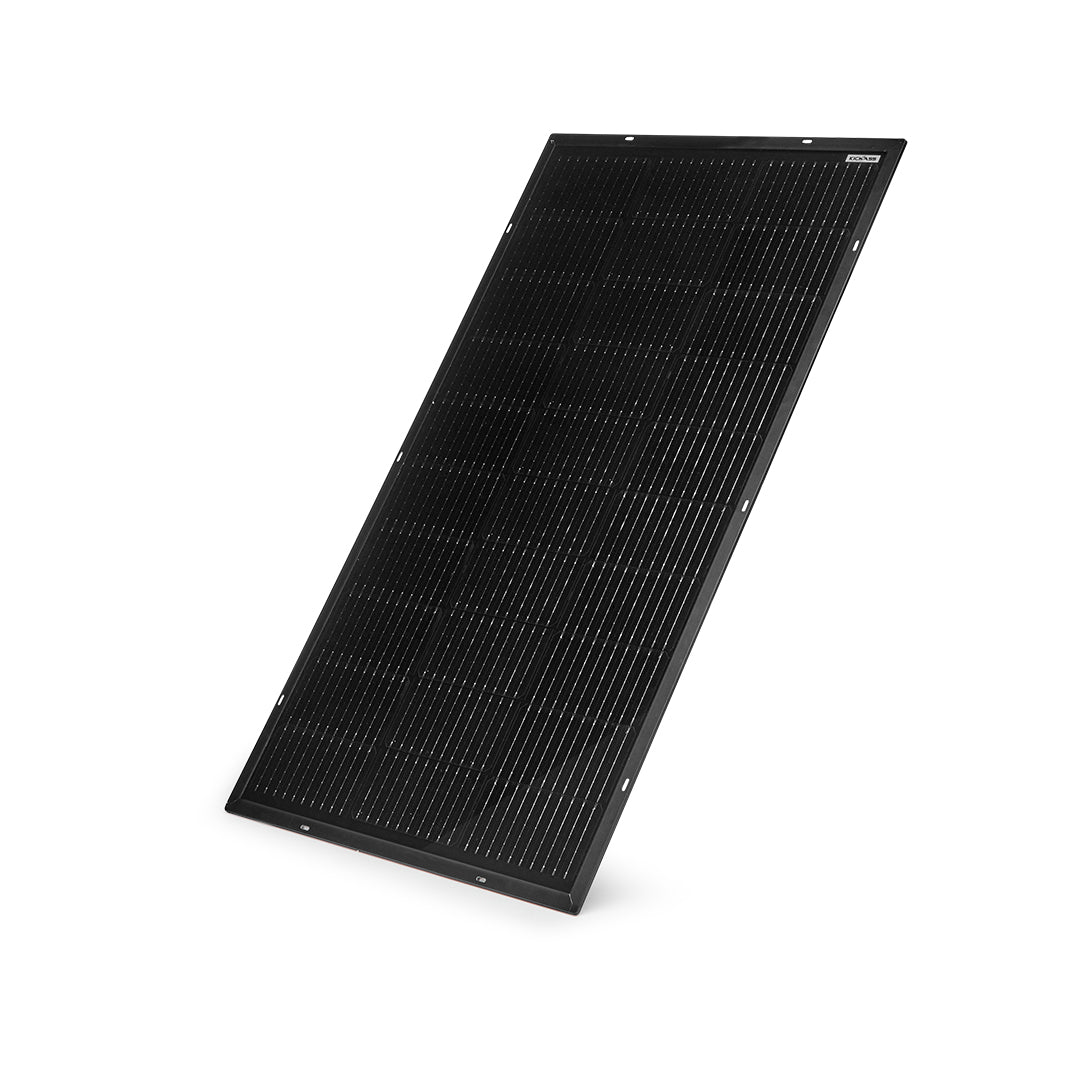

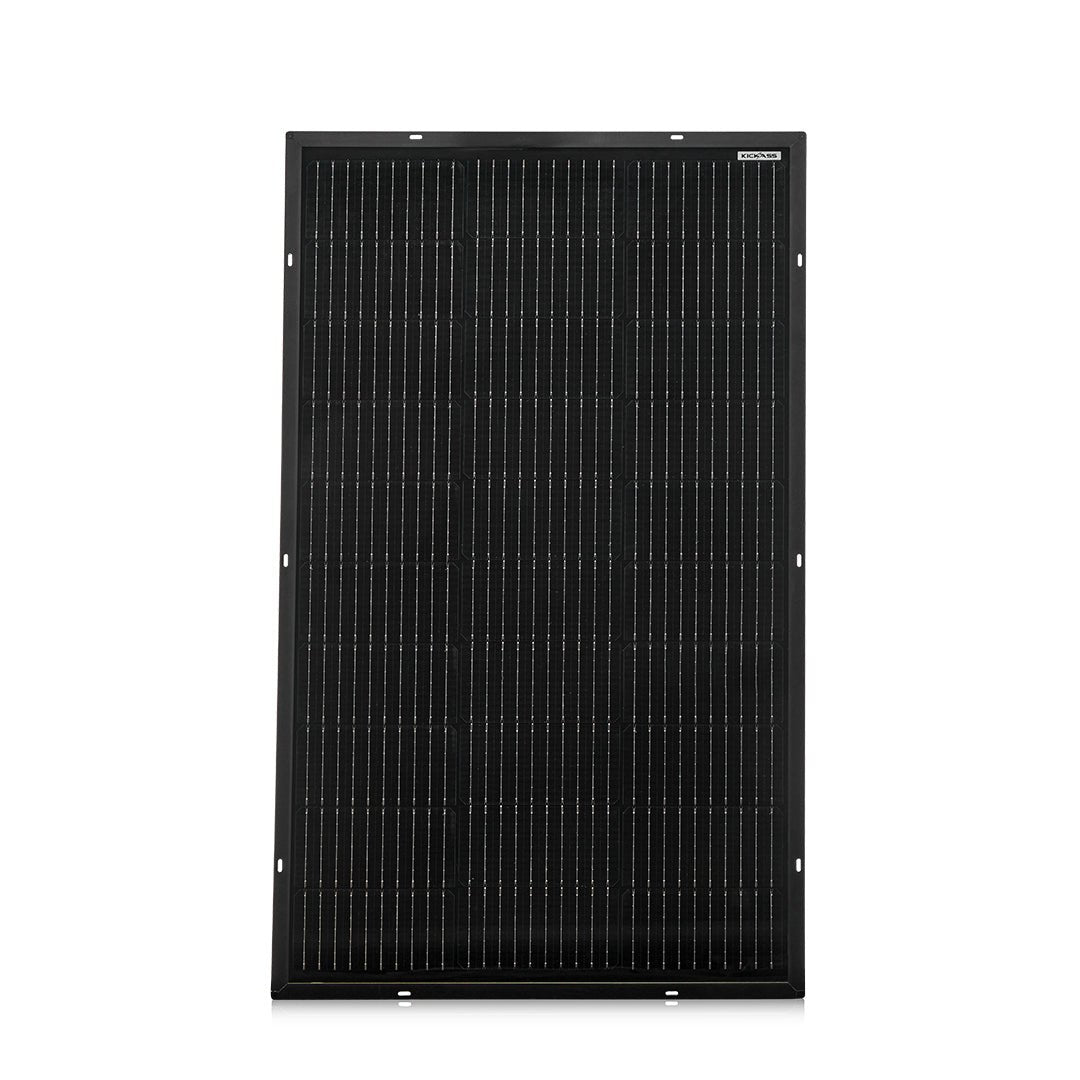

KickAss 12V 110W Ultra Slim Fixed Glass Solar Panel
KickAss 12V 110W Ultra Slim Fixed Glass Solar Panel
SKU:KAUSSP110
The KickAss 110W Ultra Slim Fixed Glass Solar Panel weighs just 4.2kg – perfect for your 4WD, caravan or boat. Built with A-grade monocrystalline PERC cells, it performs even in low light. The 2mm tempered glass and slim aluminium frame reduce wind resistance. Includes a 3-year warranty.
Specifications
Specifications
| Cell Type | Monocrystalline PERC |
| Max Power (Pmax) | 110W |
| Open Circuit Voltage (Voc) | 20.96V |
| Short Circuit Current (Isc) | 6.72A |
| Front Glass | 2mm Tempered Glass |
| Frame | Anodised Aluminium Alloy |
| Dimensions | 990 x 600 x 5.9mm |
| Weight | 4.2kg |
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 15A |
| Operation Temperature | -40°C – 85°C |
| Nominal Operation Cell Temperature | 42 |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor

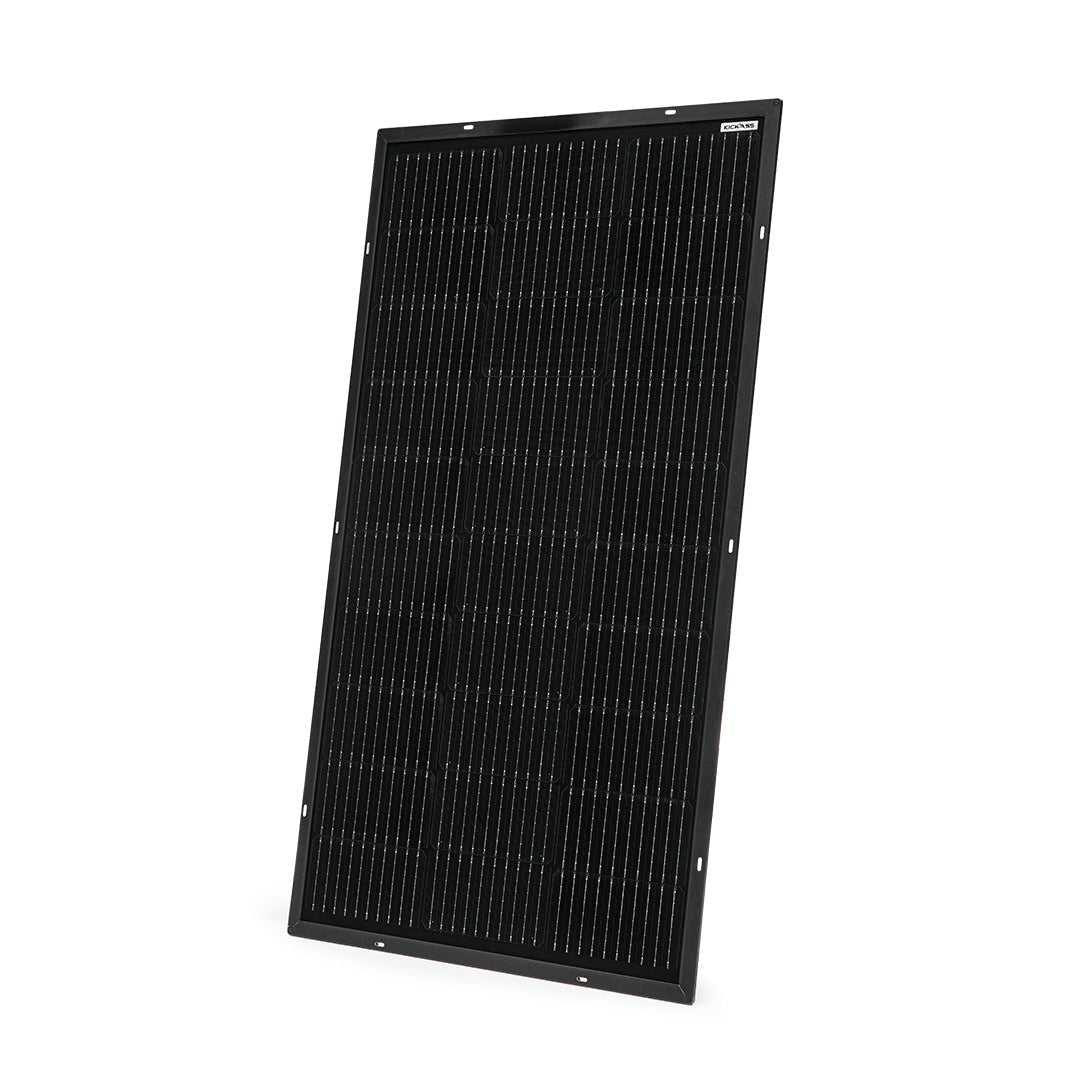

KickAss 110W Ultra Thin Fixed Glass Solar Panel
- Lightweight – 4.2kg
- Ultra thin design
- Monocrystalline PERC cells
- Multi Busbar Technology
- Bypass Diode
- Full Tempered Glass Protection
- Aluminium Alloy Frame
- Series Configuration
- 3-year warranty
Weighing just 4.2kg, this solar panel is incredibly light and won’t add extra weight to your vehicle or impact fuel efficiency.
This ultra-thin 110W solar panel is a sleek, durable solution for those seeking efficient solar power. Perfect for compact spaces, it delivers reliable energy in a lightweight design. Ideal for installing on the roof of your 4WD, trailer or caravan.

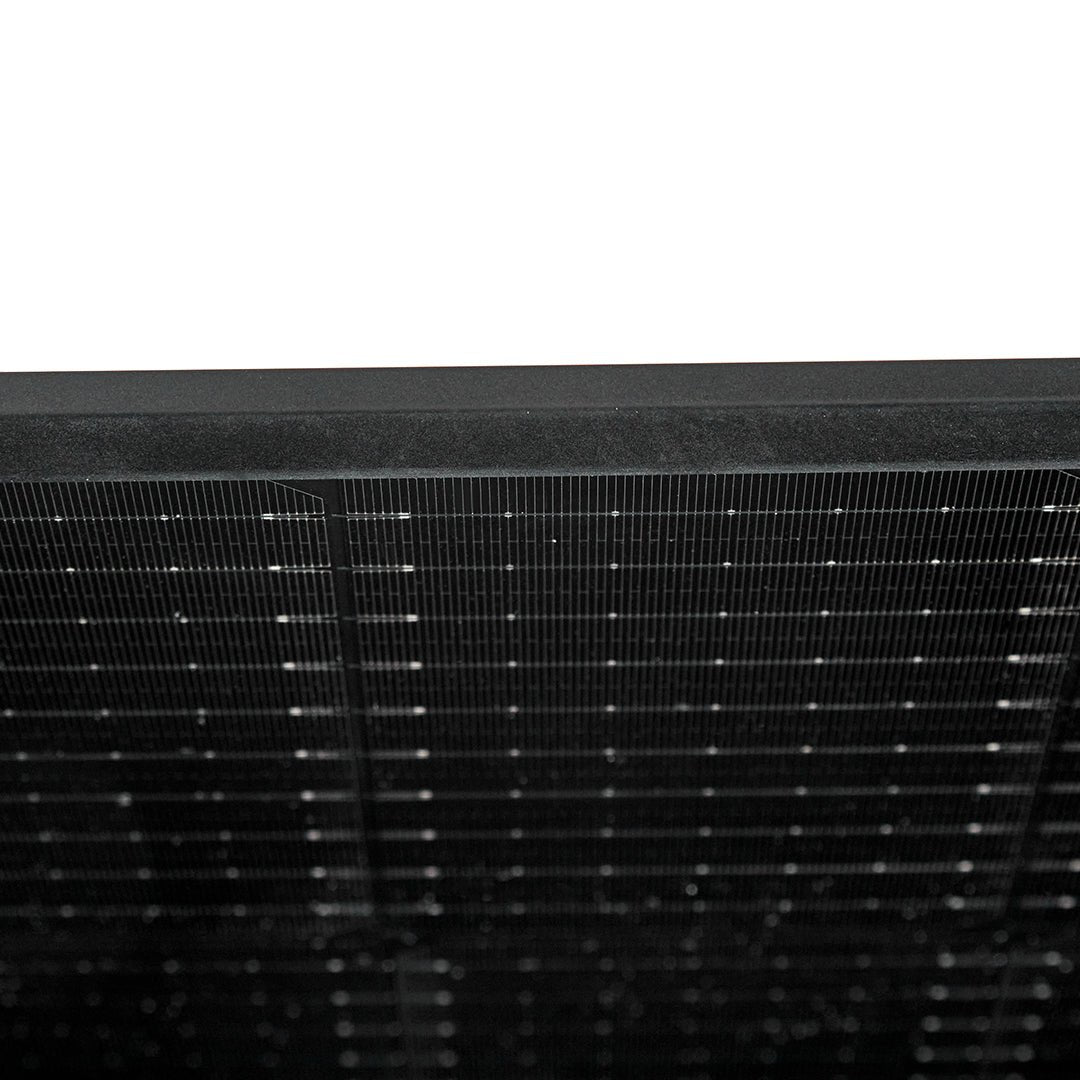

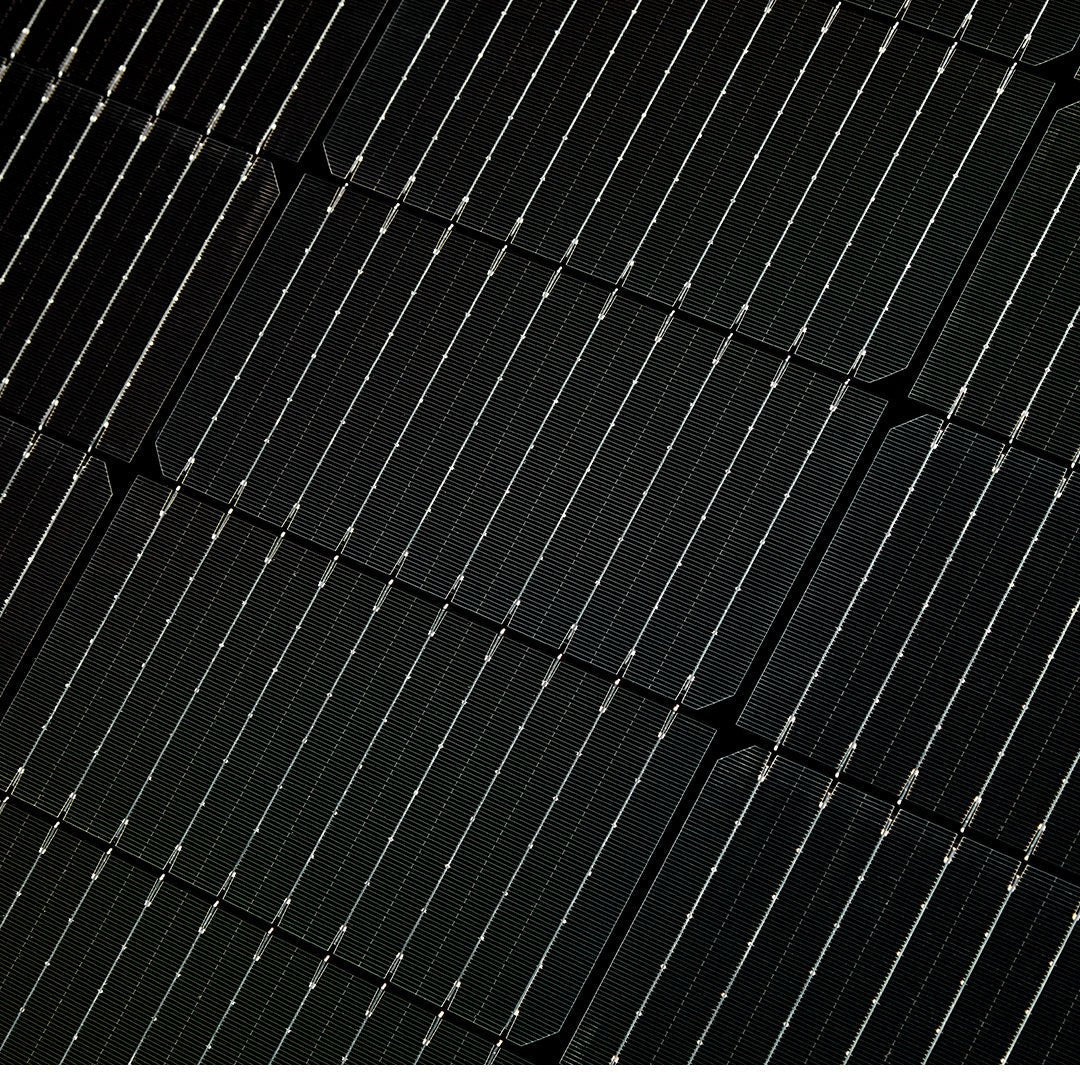

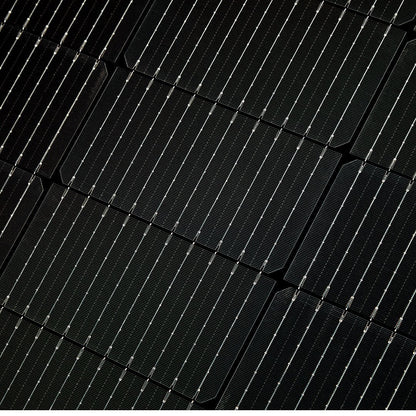

These panels combine ultra-efficient A-grade monocrystalline cells with advanced PERC technology. The added layer on the back of each cell reflects unused light back in, improving efficiency and putting more energy into your battery.
Multi Busbar Technology ensures that electricity travels shorter distances, reducing power loss and increasing output. Even if a cell is partially damaged, energy can still be captured by other busbars, improving durability.
The bypass diode ensures the panel keeps producing power even when partially shaded – great for rooftop setups where conditions vary.

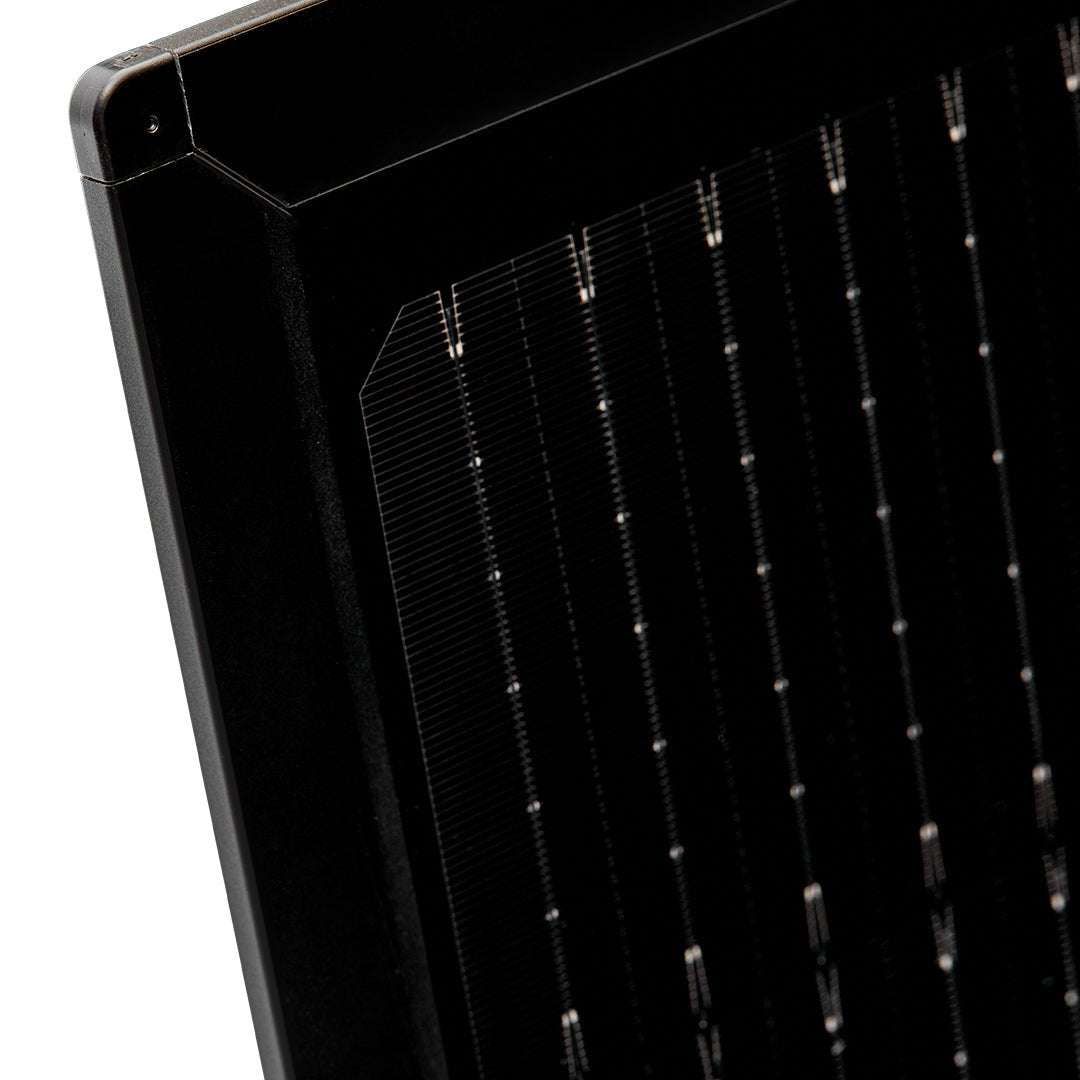

2mm full tempered glass offers excellent protection and durability while allowing maximum sunlight through. It’s a balance of strength, efficiency and convenience.

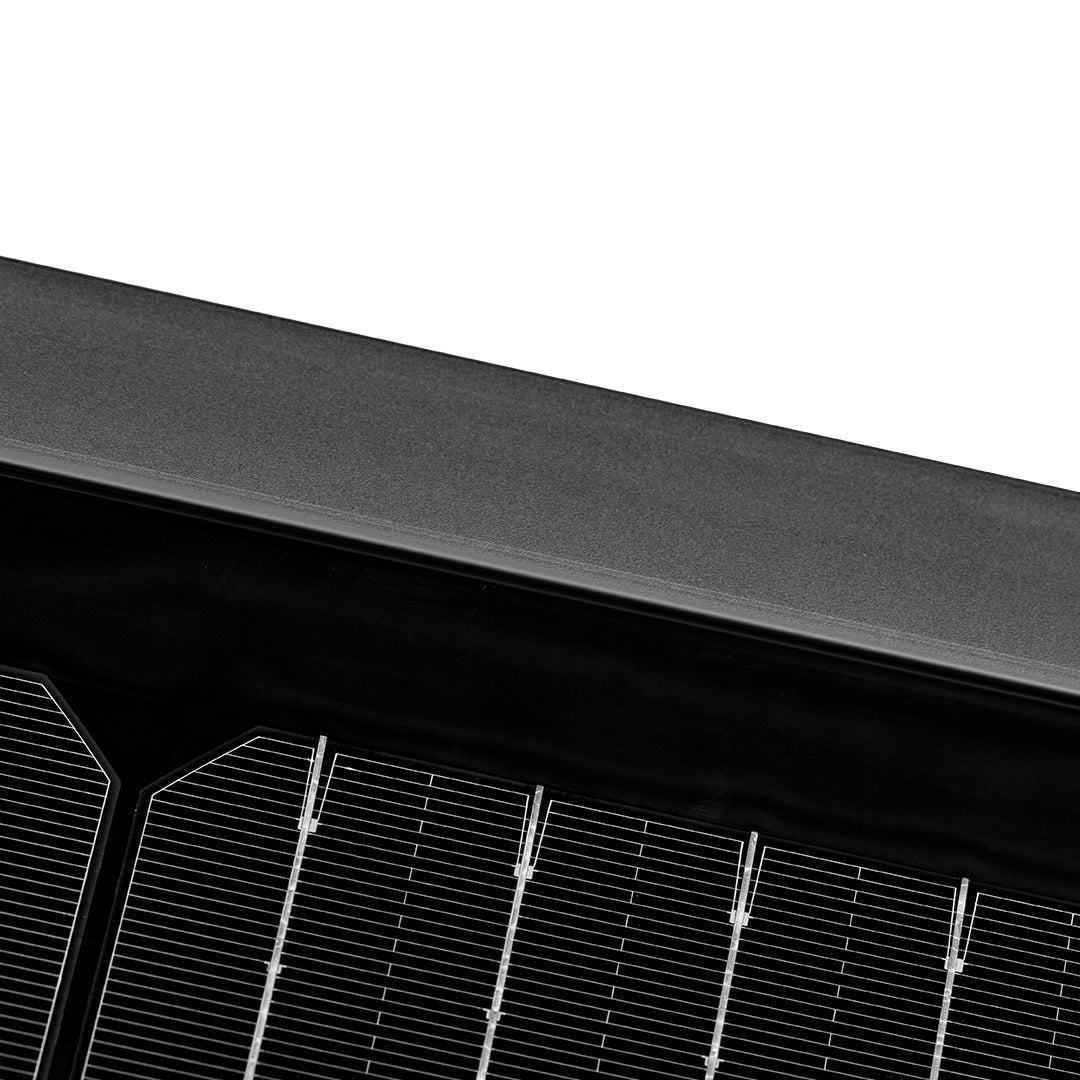

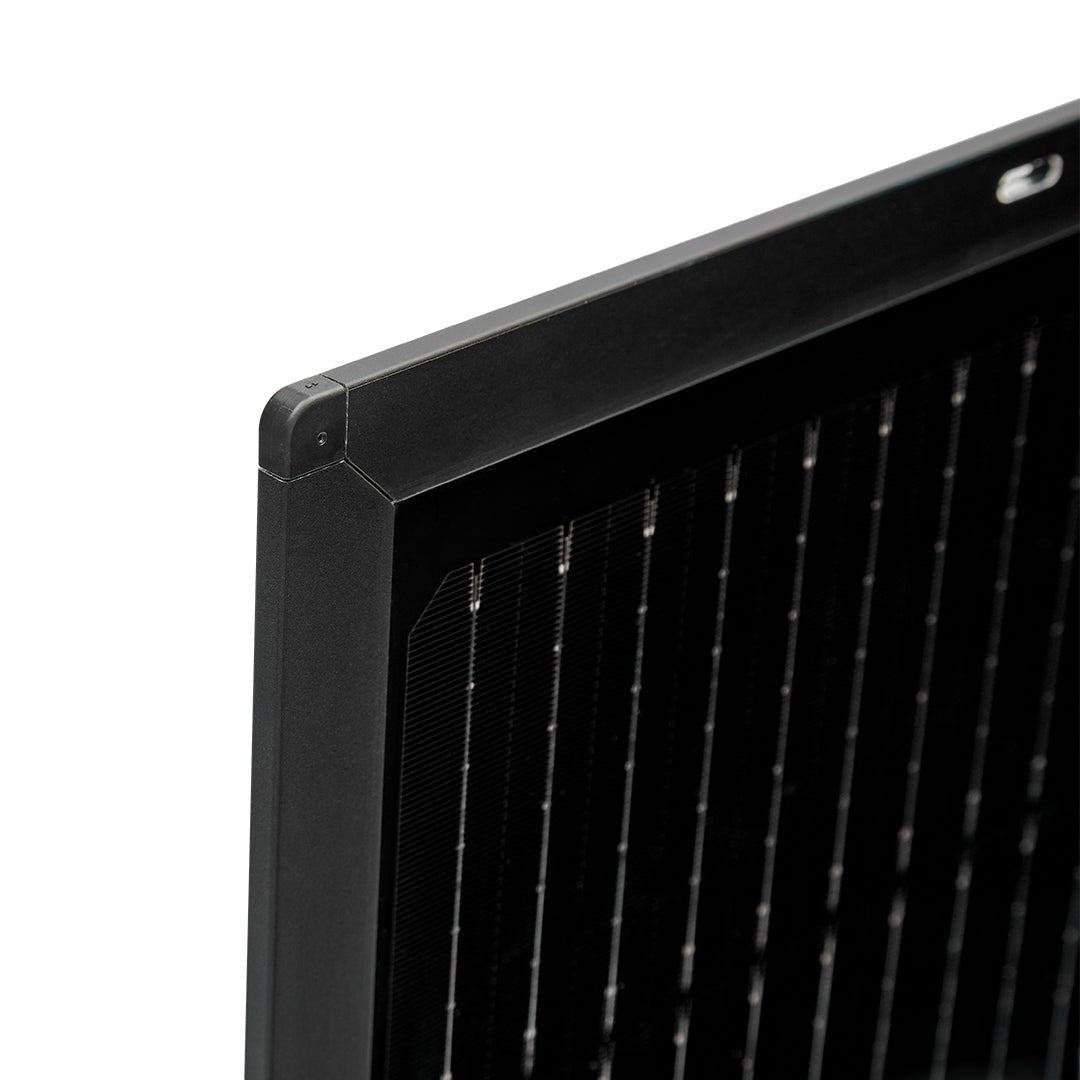

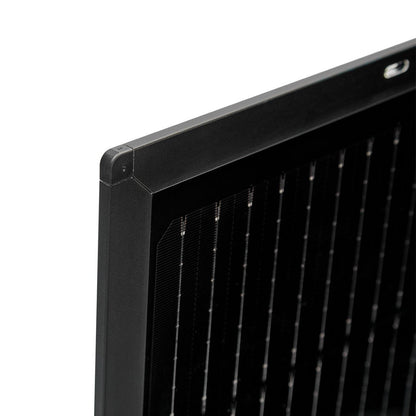

The aluminium frame is under 6mm thick, reducing wind resistance and keeping vehicle height low – ideal for streamlined travel.
Connect multiple panels in series to increase your output – they’re rated up to 1500V DC, perfect for powering devices like the KickAss Quickfire BBQ or Induction Cooktop.
Backed by a 3-year warranty for peace of mind.
