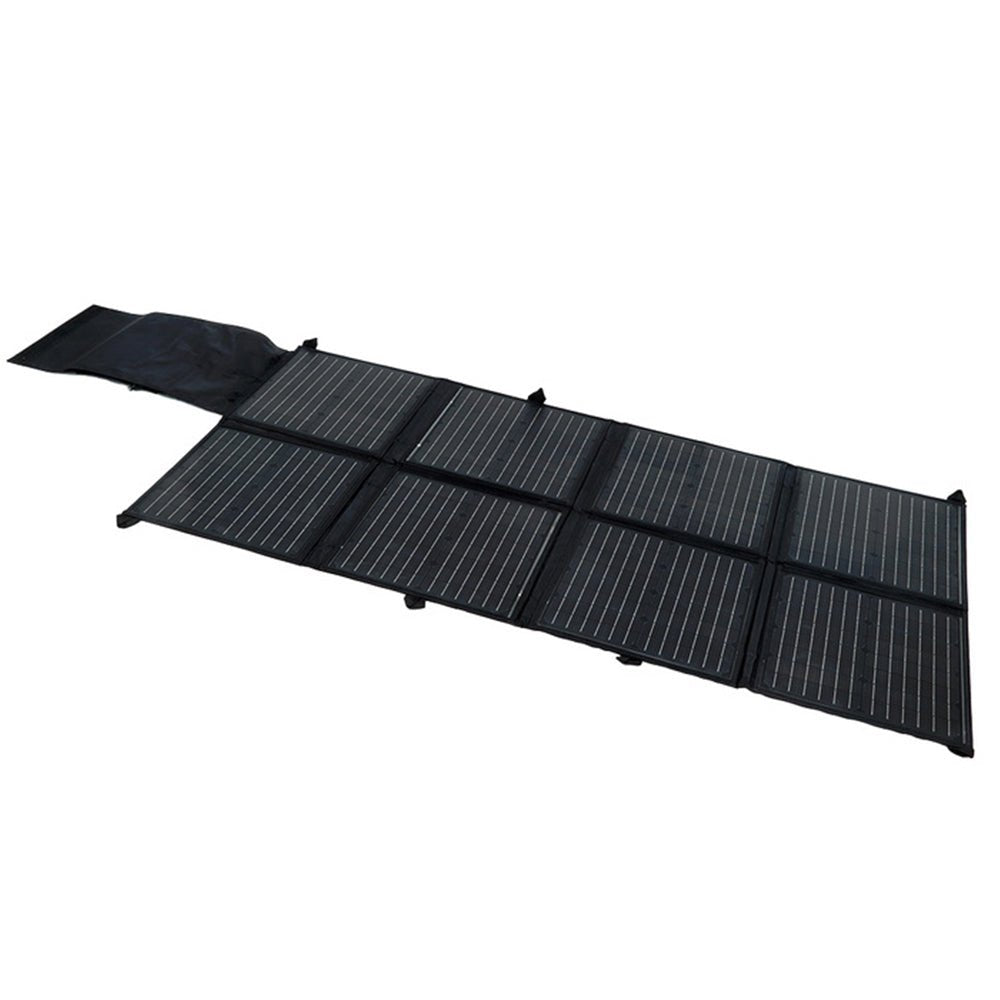

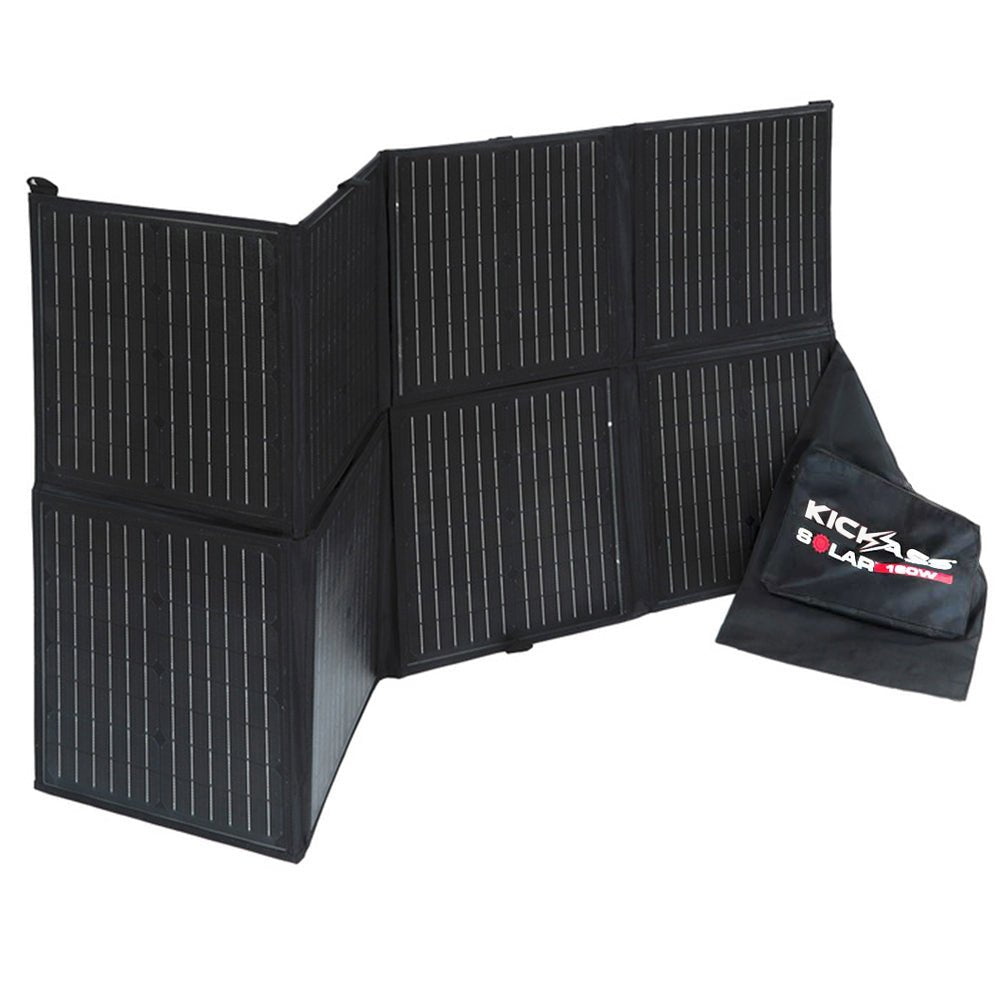

KickAss 12V 160W Solar Blanket
KickAss 12V 160W Solar Blanket
SKU:KASB160
The KickAss 160W Solar Blanket is a compact and powerful solar solution to keeping your batteries charged. Features Japanese ETFE Coating, reinforced cell backing & A-grade monocrystalline cells.
Specifications
Specifications
| SKU | KASB160 |
| Cell Type | High efficiency A-grade monocrystalline |
| Cell Coating | ETFE |
| Max Power (Pmax) | 160W |
| Max Power Voltage (Vmp) | 17.65V |
| Max Power Current (Imp) | 9.09A |
| Open Circuit Voltage (Voc) | 21.20V |
| Short Circuit Current (Isc) | 10A |
| Operating Temperature | 0°C to 85°C |
| Power Tolerance | +/-5% |
| Conversion Efficiency | 21.6% |
| Dimensions (Open) | 1620mm x 755mm x 7mm |
| Dimensions (Closed) | 400mm x 380mm x 70mm |
| Weight | 7.2kg |
| Backing Material | Water proof nylon with UV resistant coating |
| Connector Type | Anderson style |
| Cable | 500mm 14AWG / 5m 12AWG |
| Mounting Points | Tabs x 8 |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor

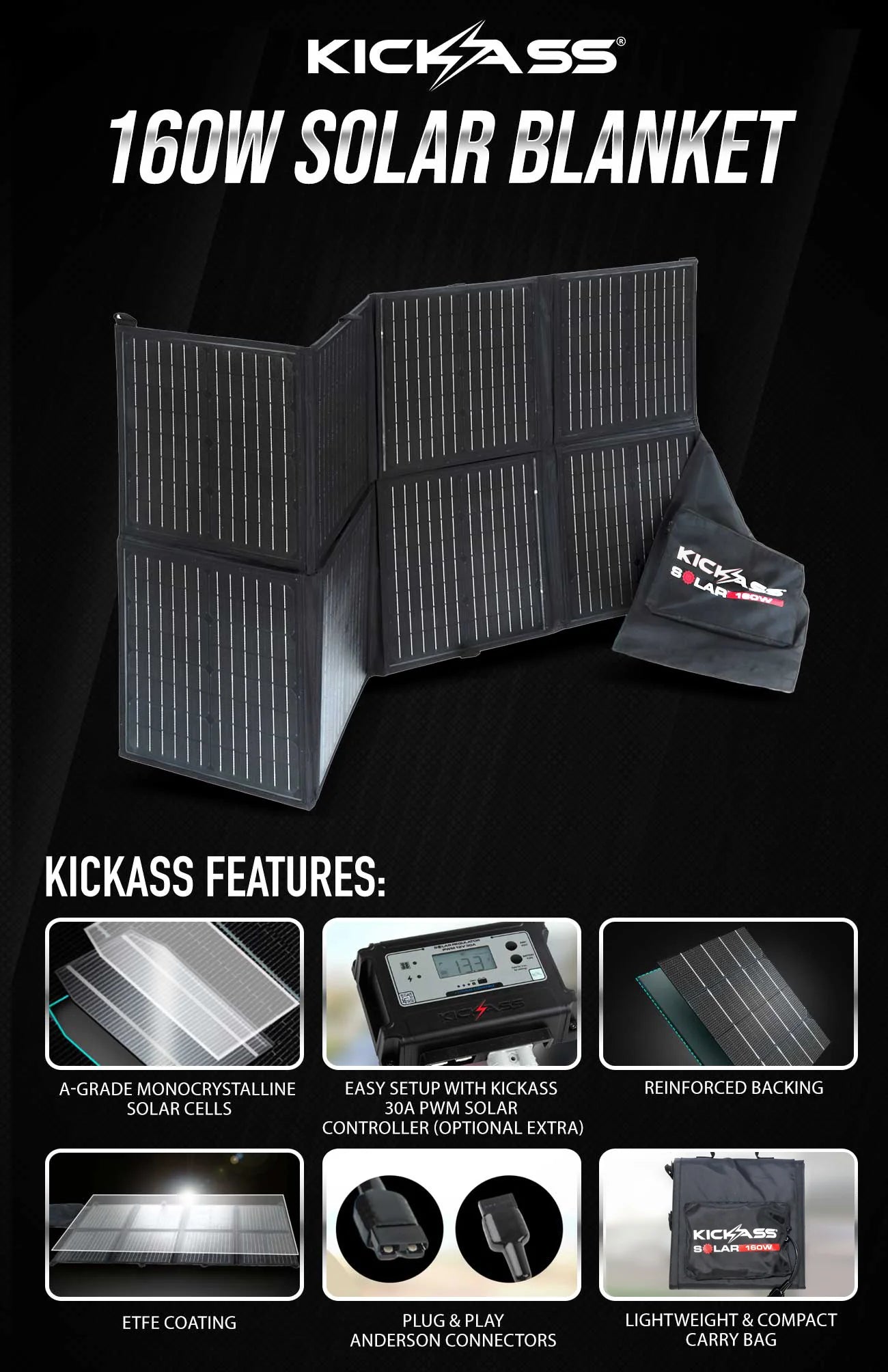

KickAss 160W Solar Blanket Feature Overview

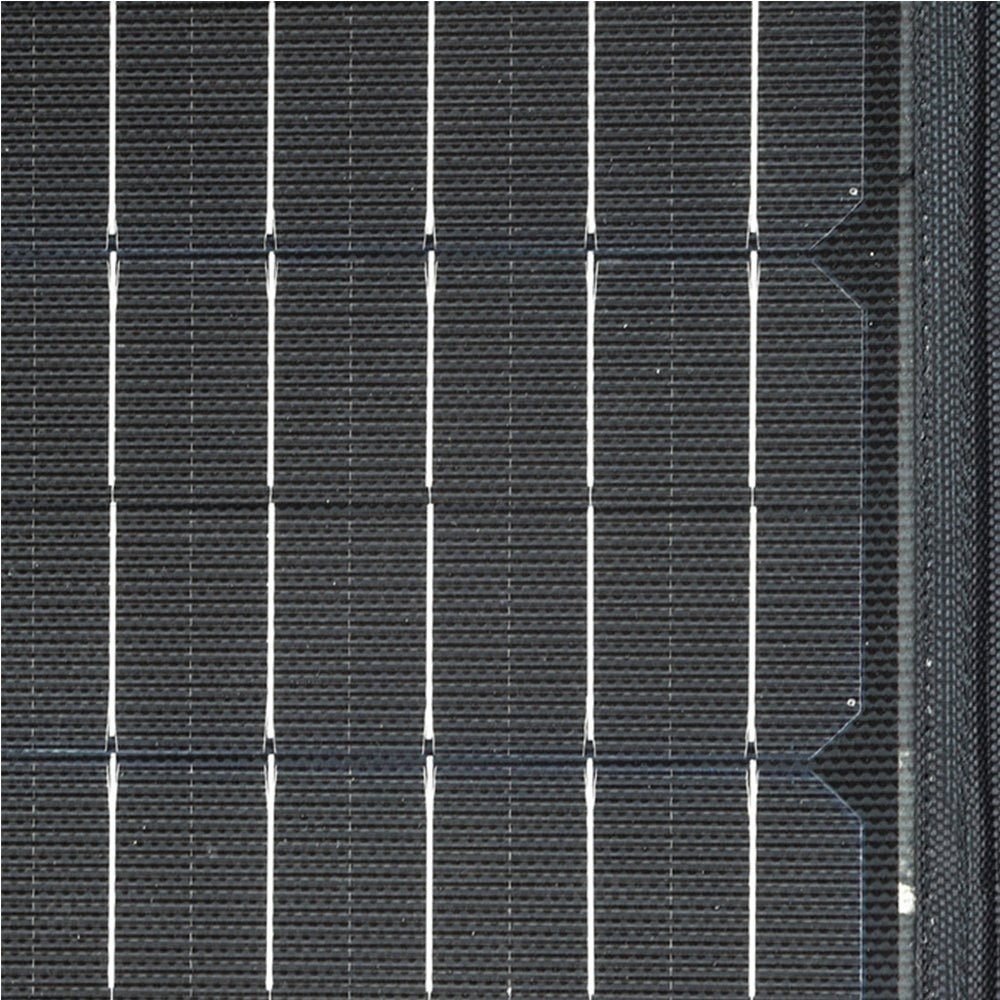

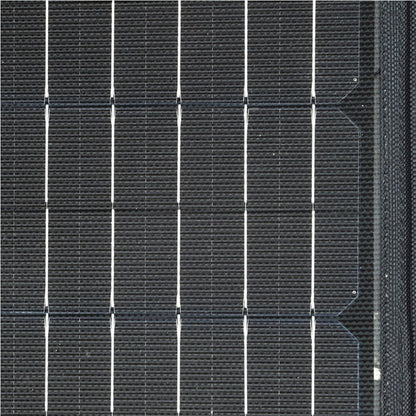

A-grade Monocrystalline Solar Cells
The KickAss 160W Solar Blanket is made with the highest quality monocrystalline cells. Our panels provide 15–25% more efficiency than other panels on the market.
Easy Setup With KickAss 30A PWM Solar Controller (Optional Extra)
When paired with the KickAss 30A PWM controller, it's never been easier to set up your 12V solar. Keep your batteries charged and your 12V accessories running while you're at camp. Perfect for weekends or extended 4WD treks around Australia.

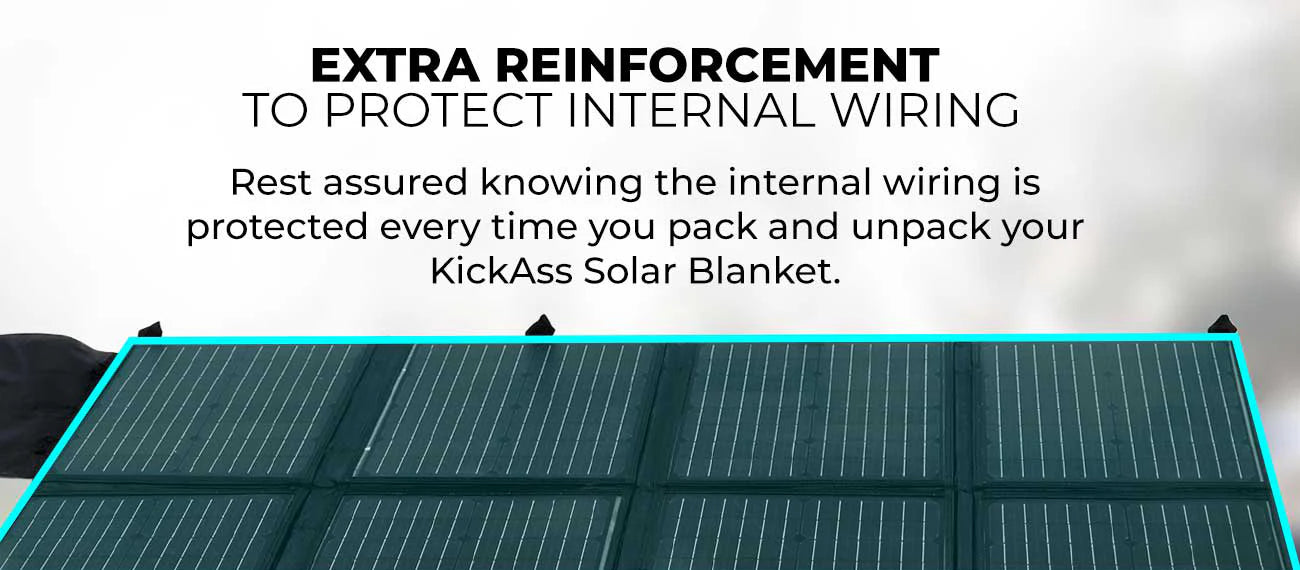

Reinforced Backing for Cell Stability
No more shattered panels every time you pack them away. The reinforced backing gives your KickAss blanket the strength it needs to maintain solar efficiency for years to come.

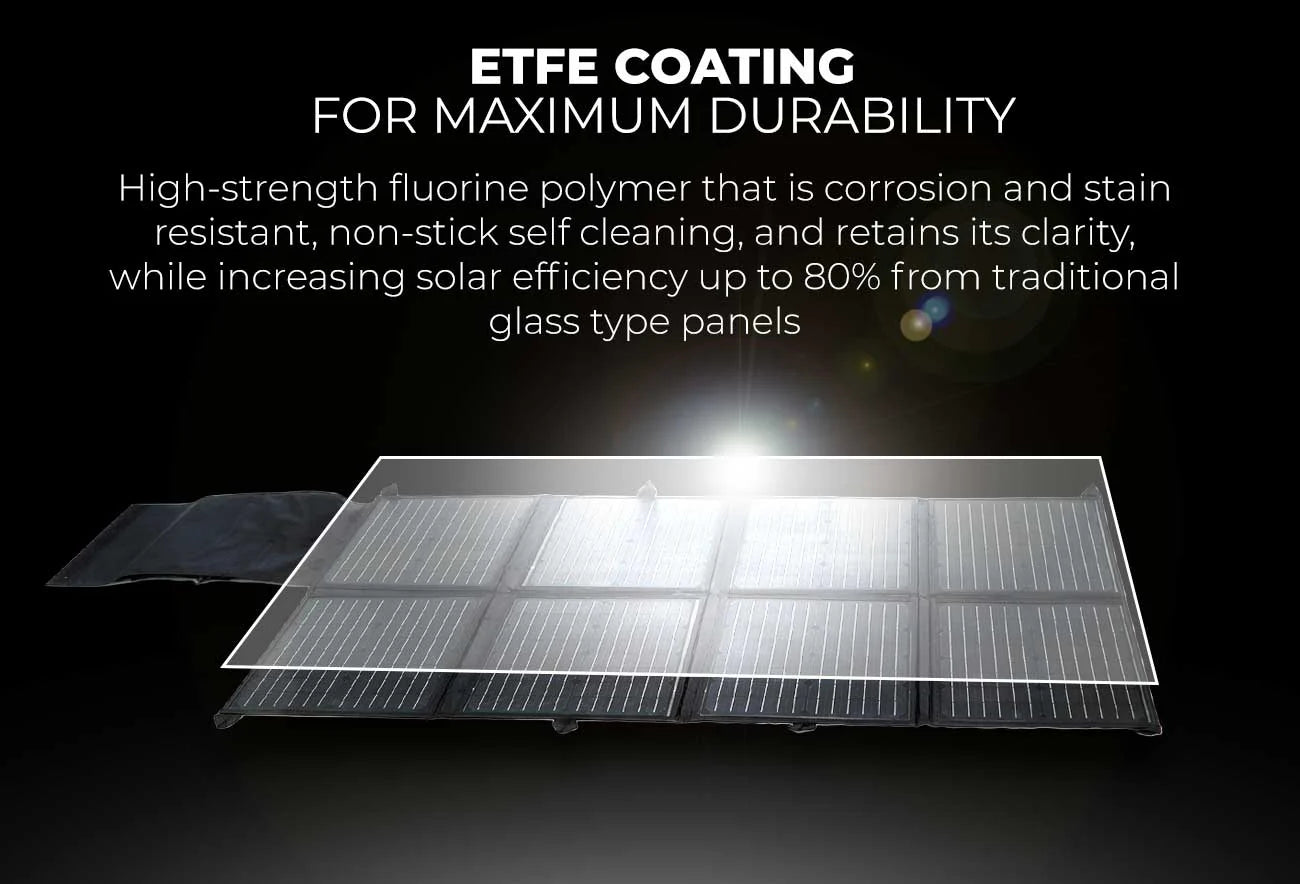

ETFE Coating for Maximum Durability
A high-strength fluorine polymer that is corrosion- and stain-resistant, non-stick self-cleaning, and retains clarity—boosting solar efficiency by up to 80% compared to traditional glass panels.
Premium Japanese ETFE Construction
- Higher protection from the elements for longer service life
- Better heat transfer
- Non-stick self-cleaning
- Corrosion resistant
- Weatherproof

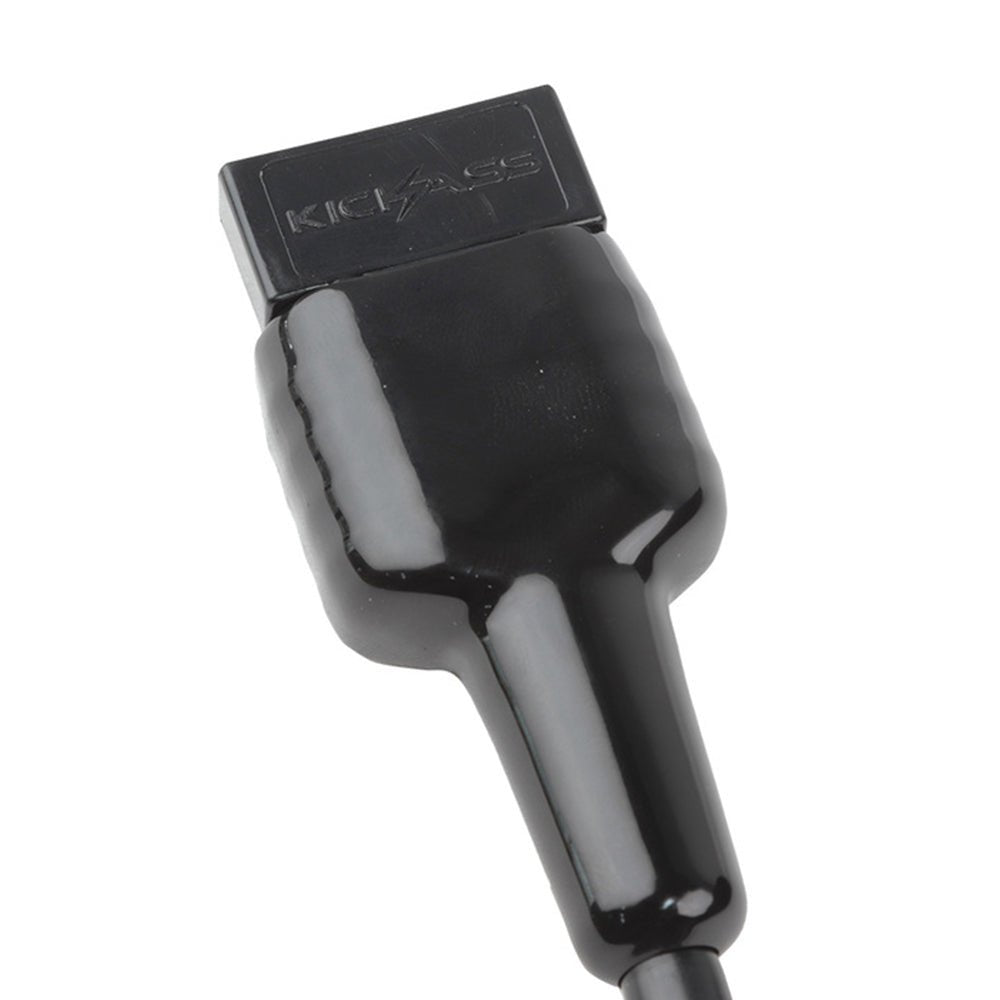

Anderson Connectors for Plug & Play Connection
No more dodgy connections causing flat batteries and spoiled food. These Anderson-style connectors provide secure, solid connections that deliver uncompromising charge.

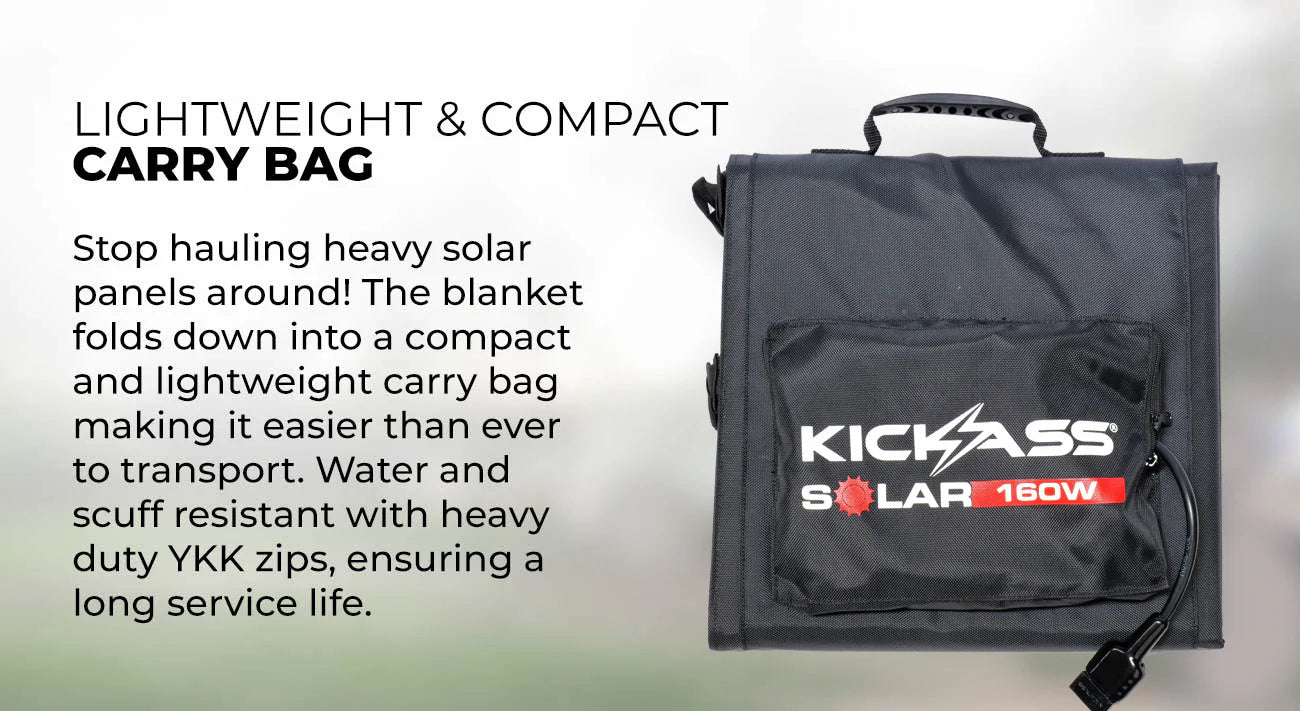

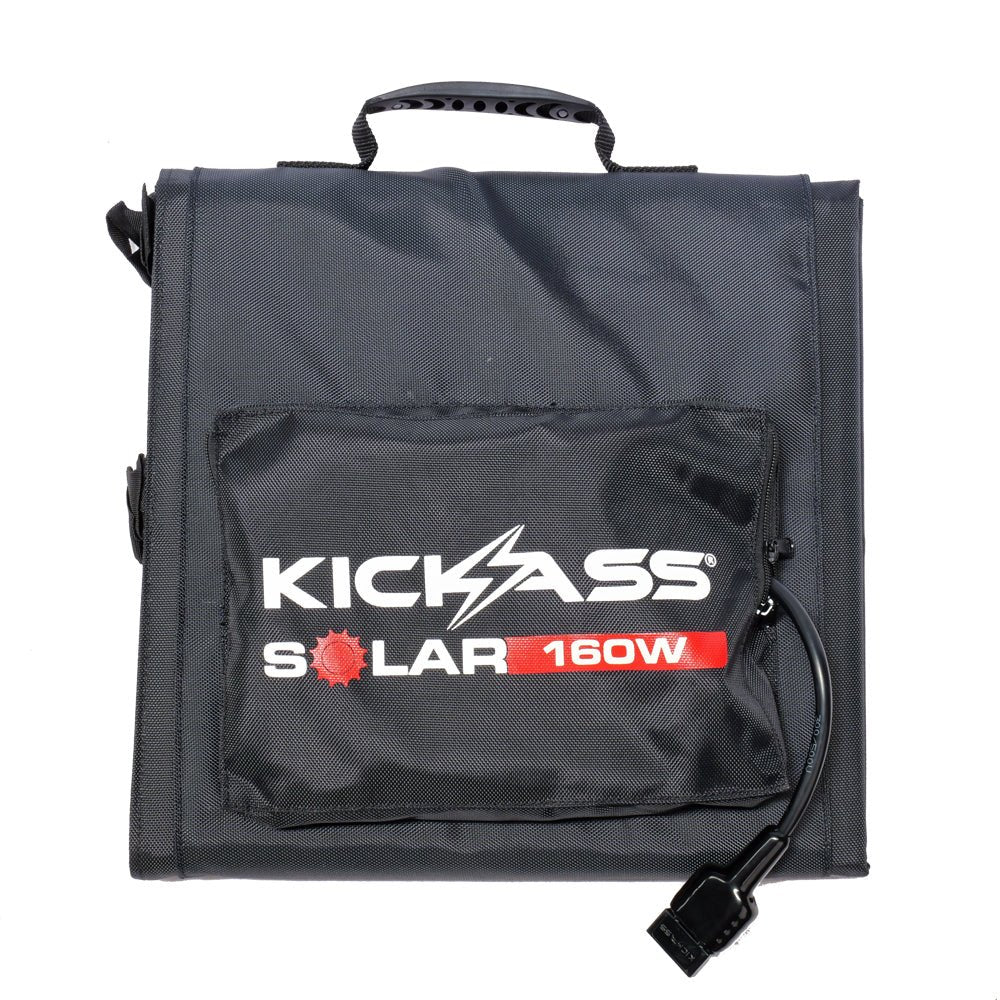

Lightweight & Compact Carry Bag

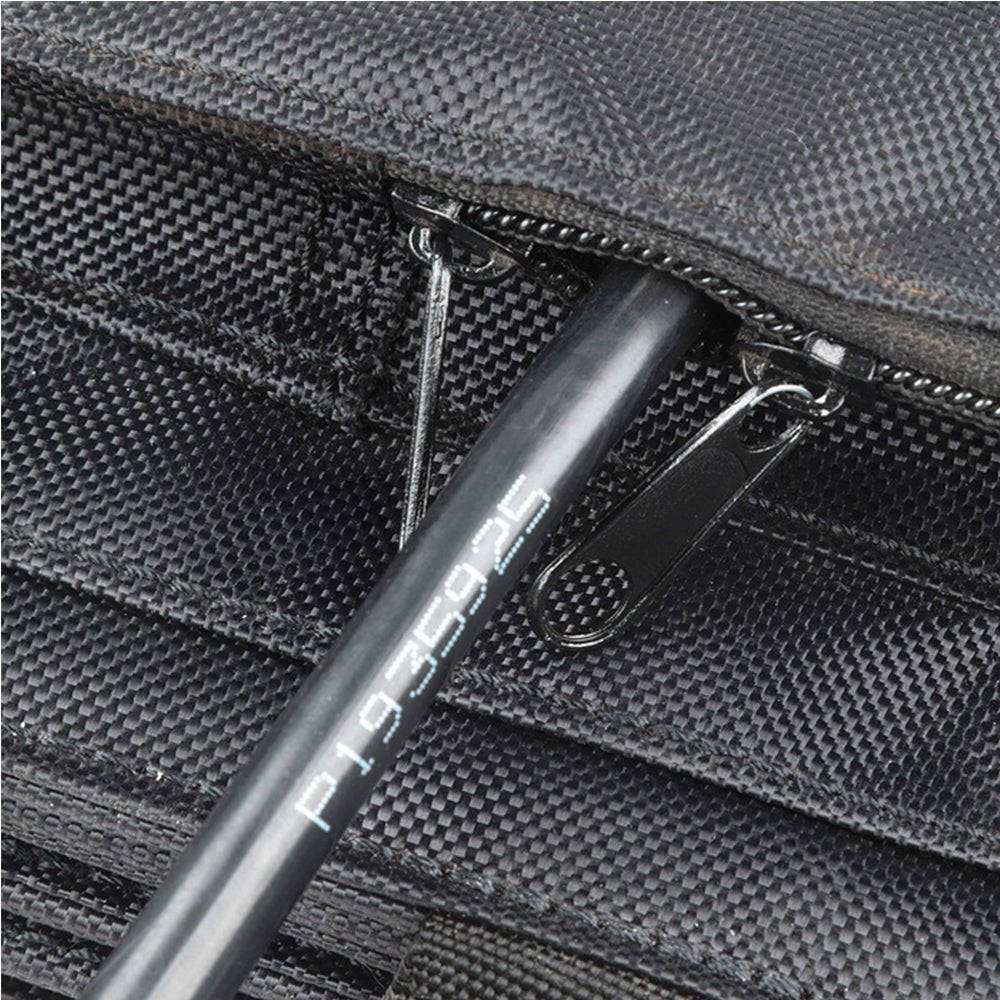

Stop hauling heavy solar panels! The blanket folds into a compact, lightweight carry bag that’s water and scuff resistant, with heavy-duty YKK zips for long service life.
