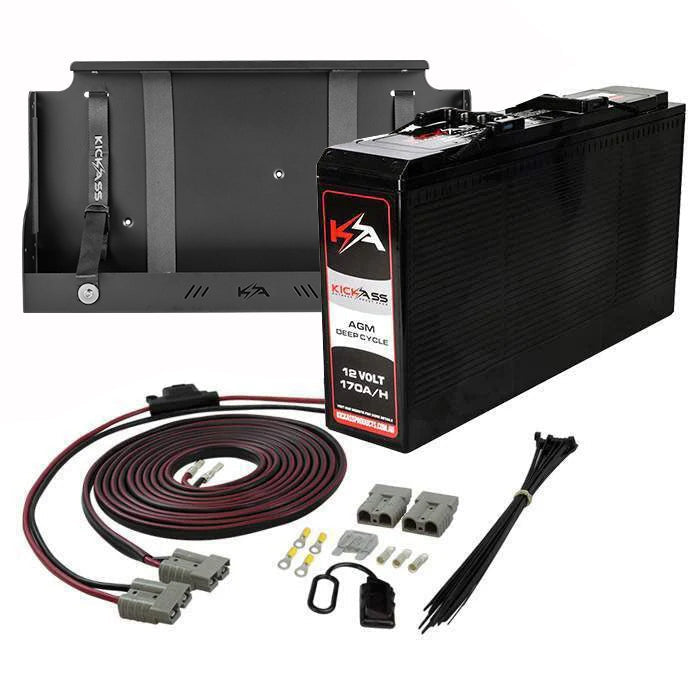

KickAss 12V 170Ah Slimline Deep Cycle AGM Battery Bundle with Tray & Wiring Kit
KickAss 12V 170Ah Slimline Deep Cycle AGM Battery Bundle with Tray & Wiring Kit
SKU:KA12170TRAYWIR
Bundle includes 12V 170AH auxiliary battery & battery tray, plus wiring set. Perfect for installing behind rear seat in dual cab ute. Everything needed for DIY install.
Specifications
Specifications
KickAss Slim 12V 170AH Deep Cycle Agm Battery
- Nominal Voltage 12.8V
- Nominal Capacity 170Ah@20 hour rate F.V.(1.80V/cell)
- Approx. Weight 45.00Kg
- Terminals B3 (Fitting M8 bolt & nut) I2 is optional
- Internal Resistance = O O4.5Ω (Fully Charged)
- Max. Discharge Current 1200A (5 sec)
- Max. Charge Current 37.5A
- Operating Temperature Range Charge: -10°C~40°C (14°F~104°F)
- Maximum Operating Temperature : 65°C
- Discharge: -20°C~50oC (-4°F~122°F)
- Storage: -20°C~40°C (-4°F~104°F)
- Self Discharge 3% of capacity declined per month at (25°C)
KickAss Plug & Play Dual Battery System Wiring Kit
| Main Cable | 6M of Twin Sheathed 8B&S (7.71mm2) - With Pre-Crimped Andersons | ||
| Circuit Protection | 1 x 80 Amp Maxifuse - Holder Included | ||
| Battery Connection Terminals | 2 x 8mm on Maxifuse Cable | ||
| High Current Connector | 1 x 50 Amp Anderson Connector - Outlet | ||
| Spares | 4 x 8mm Yellow Ring Terminals (Double Crimp) 1 x 80Amp Maxifuse |
||
| Fastening | 10 x 100MM UV Enhanced Cable Ties | ||
Dual Battery System Wiring Kit- includes 1 year warranty
