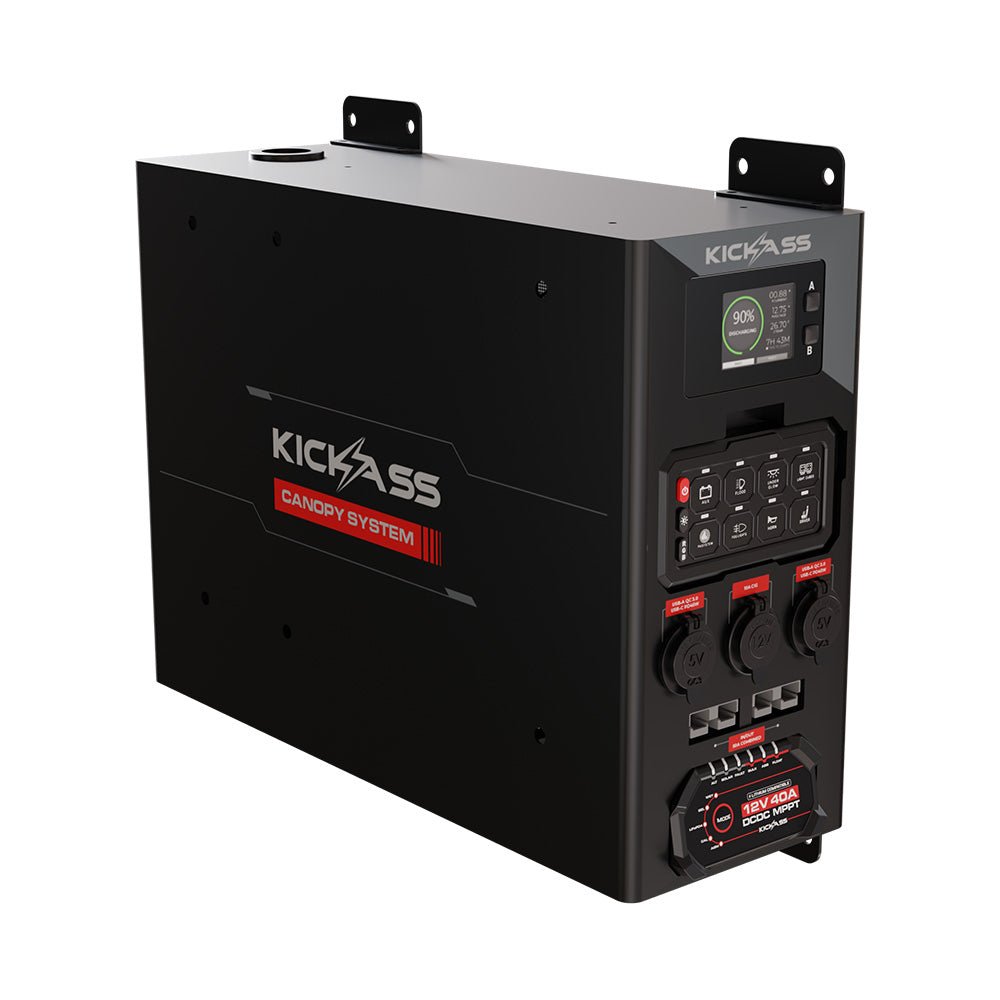

KickAss 12V Wireless Canopy Power System with 40A DCDC Charger + Integrated Bluetooth
KickAss 12V Wireless Canopy Power System with 40A DCDC Charger + Integrated Bluetooth
SKU:KA40A8WSCPSL
The new and improved KickAss Canopy System makes 12V setups even easier. It now features wireless digital switching and built-in Bluetooth, so you can monitor charging status and performance straight from your phone. With its MPPT solar controller, 40A DCDC charger, and fast-charging outputs, it’s specifically designed to be an off-grid solution for canopies.
Specifications
Specifications
| Cig Socket Outputs | 1 x 10A |
| USB Outputs | 2 x USB-C 45W | 2 x QC3.0 |
| Anderson Input / Outputs | 5 |
| Anderson Inputs | 3 Pin Alternator | Unregulated Solar |
| Digitally Switched Outputs | 8 |
| Battery Connection | 175A Anderson |
| Operating Temperature | -20°C to +50°C |
| DCDC-MPPT | |
| Charger Output Voltage Range | 3–16V DC |
| Alternator Input Voltage Range | 9–32V DC |
| Solar Input Voltage Range | 9–32V DC |
| Maximum Input Current | 56A |
| Maximum Continuous Charging Current | 40A |
| Efficiency | Solar - 99% Max | Alternator - 92% Max |
| No Load Current Draw | 10 mA |
| Charge Profile | |
| Absorption Voltage | GEL - 14.1V | WET - 14.4V | AGM - 14.7V | CAL - 15.3V | LiFePO4 - 14.5V |
| Float Voltage | GEL - 13.5V | WET - 13.4V | AGM - 13.4V | CAL - 13.6V | LiFePO4 - NA |
| Minimum Auxiliary Battery Voltage | GEL/WET/AGM/CAL - 9V | LiFePO4 - 0V |
| Alternator Charge Conditions | |
| 12V Alternator Input (Ignition OFF) | CUT-IN 13.2V | CUT-OUT 12.6V |
| 12V Alternator Input (Ignition ON) | CUT-IN 12.2V | CUT-OUT 10.5V |
| 24V Alternator Input (Ignition OFF) | CUT-IN 26.4V | CUT-OUT 25.2V |
| 24V Alternator Input (Ignition ON) | CUT-IN 24.4V | CUT-OUT 21V |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor

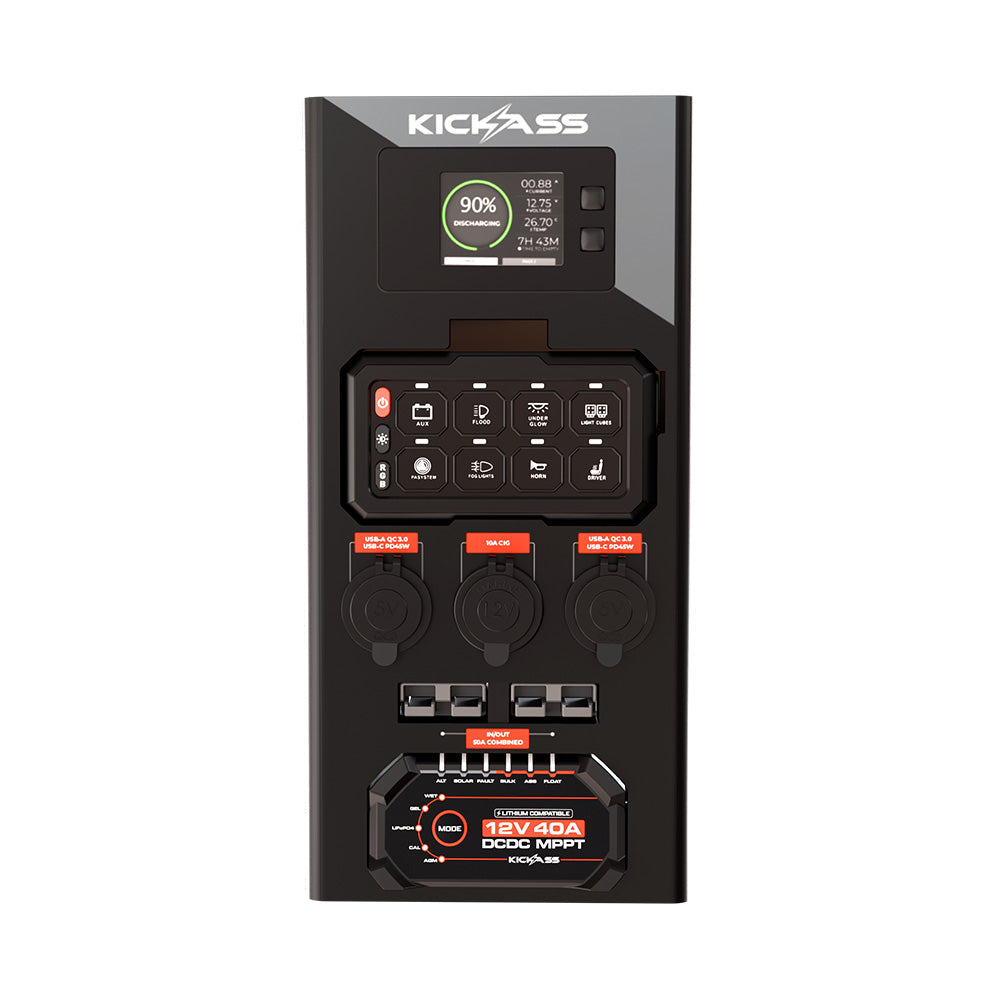

The new and improved KickAss Canopy Power System takes the hassle out of building a reliable 12V setup. Instead of sourcing multiple components and wiring them together, this upgraded all-in-one unit brings everything into a single, streamlined package that’s easy to install and ideal for DIYers. It integrates your MPPT solar controller, 40A DCDC charger, USB fast-charging outputs, and a fully redesigned wireless 8-gang switching panel.
This latest version now features wireless digital switching, giving you the freedom to control your accessories from a detachable panel you can carry anywhere around your setup. When the switch panel’s battery runs low, simply return it to the magnetic charging dock… it snaps in securely and tops up automatically. The system also includes new Bluetooth monitoring of the DCDC charger, allowing you to connect via the supporting app to configure the device and view real-time charging data such as solar and alternator input current, battery charge current, charging stage, and system alerts.
Engineered for seamless pairing with KickAss Smart Series and KickAss Ultra-X LiFePO? batteries, the updated Canopy Power System delivers maximum compatibility, safety, and efficiency. Select the KickAss lithium battery that suits your build and enjoy a complete, modernised off-grid power solution.
Note: The display and Bluetooth app monitoring features are compatible only with KickAss Smart Series and KickAss Ultra-X Lithium Batteries.
