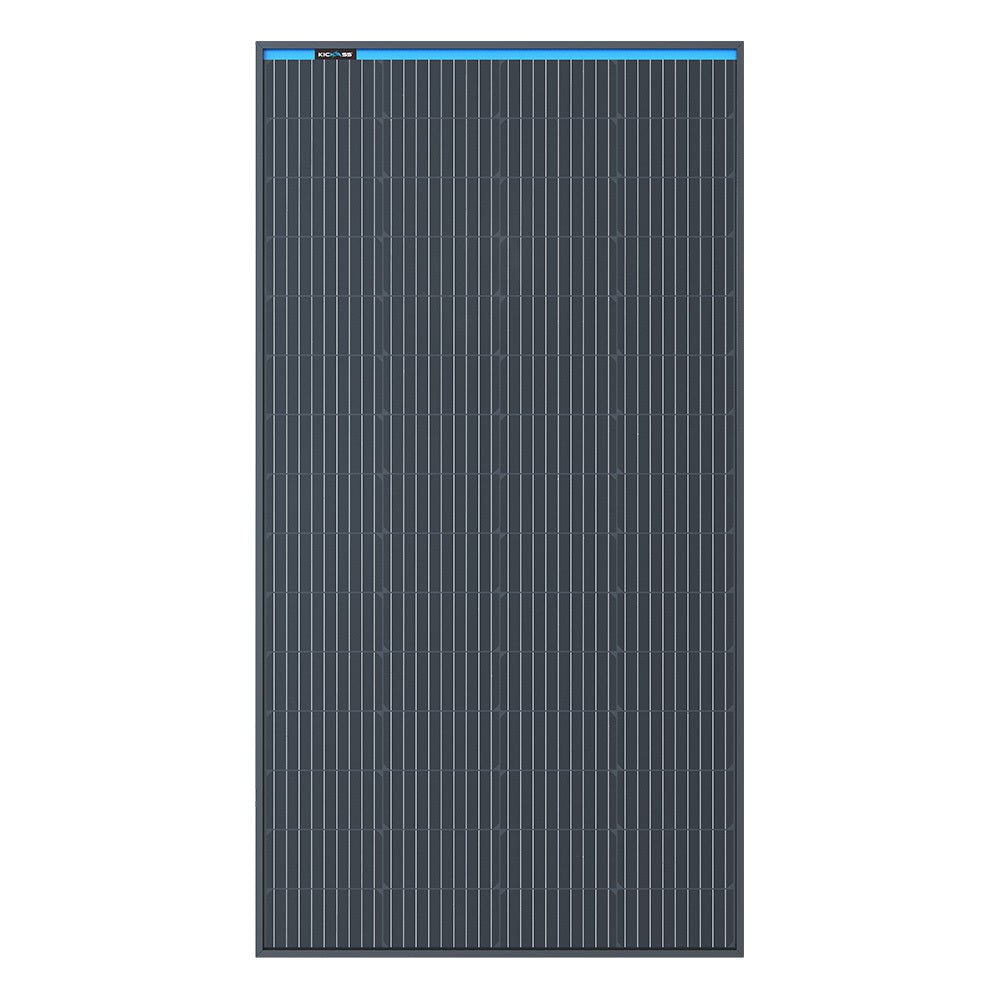

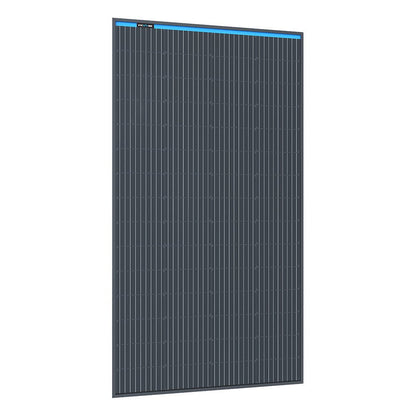

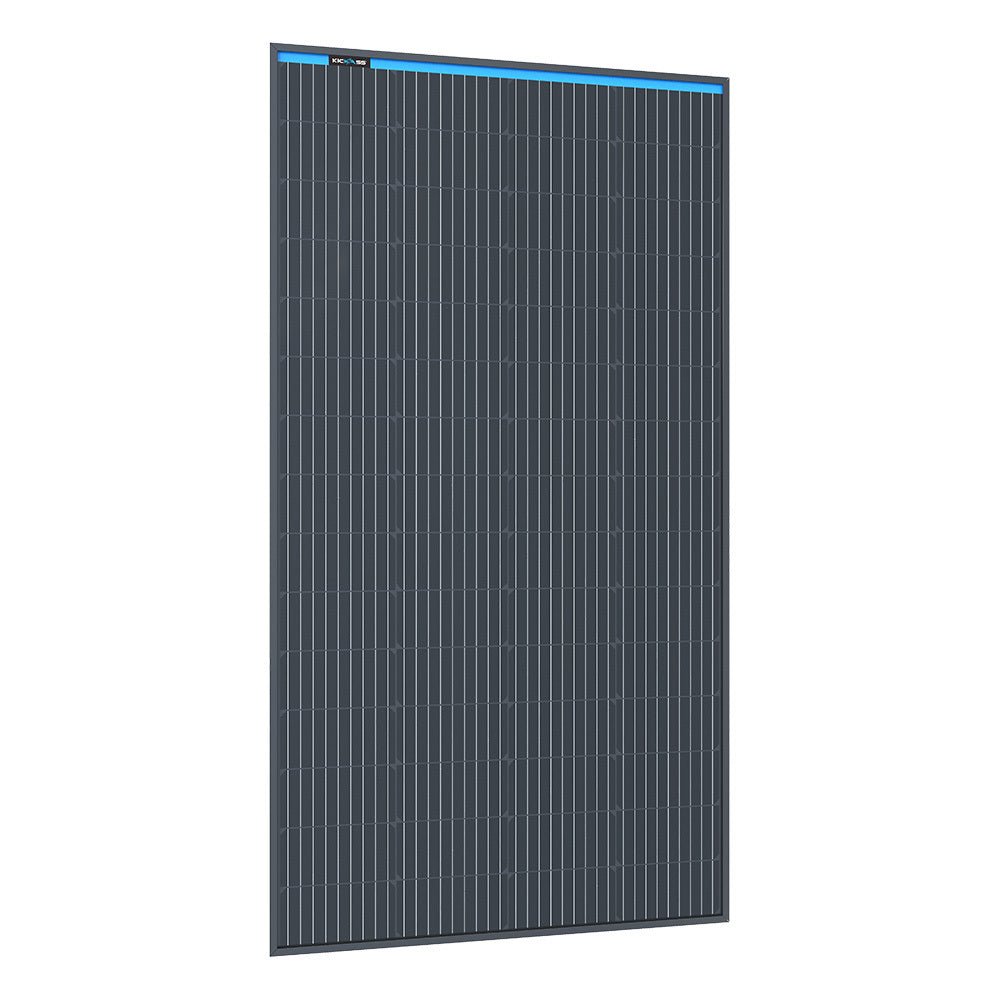

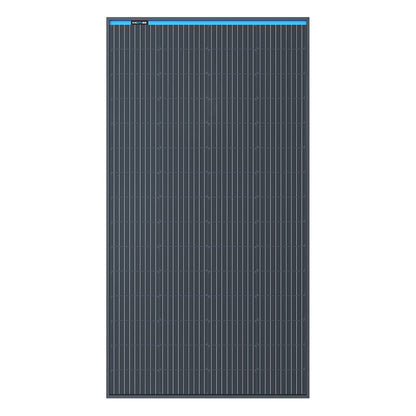

KickAss 12V 170W Fixed Solar Panel, Glass Roof Top
KickAss 12V 170W Fixed Solar Panel, Glass Roof Top
SKU:KARTSP170
KickAss 12V 170W Fixed Glass Solar Panel, built with A-grade monocrystalline cells. Generates power even when partially shaded, resistant to hail, stones and accidental knocks.
Specifications
Specifications
| SKU | KARTSP170 |
| Cell type | High efficiency A-grade monocrystalline |
| Max power (Pmax) | 170W |
| Max power voltage (Vmp) | 16.9V |
| Max power current (Imp) | 10.06A |
| Open circuit voltage (Voc) | 20.5V |
| Short circuit current (Isc) | 10.7A |
| Dimensions | 1315mm x 706mm x 35mm (including the corner pieces)
1310mm x 700mm x 35mm (excluding the corner pieces) |
| Weight | 10.2kg |
| Frame | Black powder coated aluminium |
| Application class | Class A |
| Fire safety class | Class C |
| Maximum system voltage | 1000VDC |
| Operating temperature | -40°C to 85°C |
| Nominal operating cell temperature | 47°C |
| Connector type | Water proof PV Connector |
| Standard test condition | 1000W/m² AM1.5 25° |
| Power tolerance | + / - 5% |
| Dimension tolerance | + / - 2mm |
| Conversion efficiency | 20.6% |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor
Glass Top Rooftop 12V Solar Panel 170W
Bypass Diode
The bypass diode will maintain the solar panel's output in the event the cells are partially shaded. This technology enables superior performance by ensuring a more consistent supply of power, ideal for mounting to rooftops.
Perfect Sizing for Roof Top Mounting

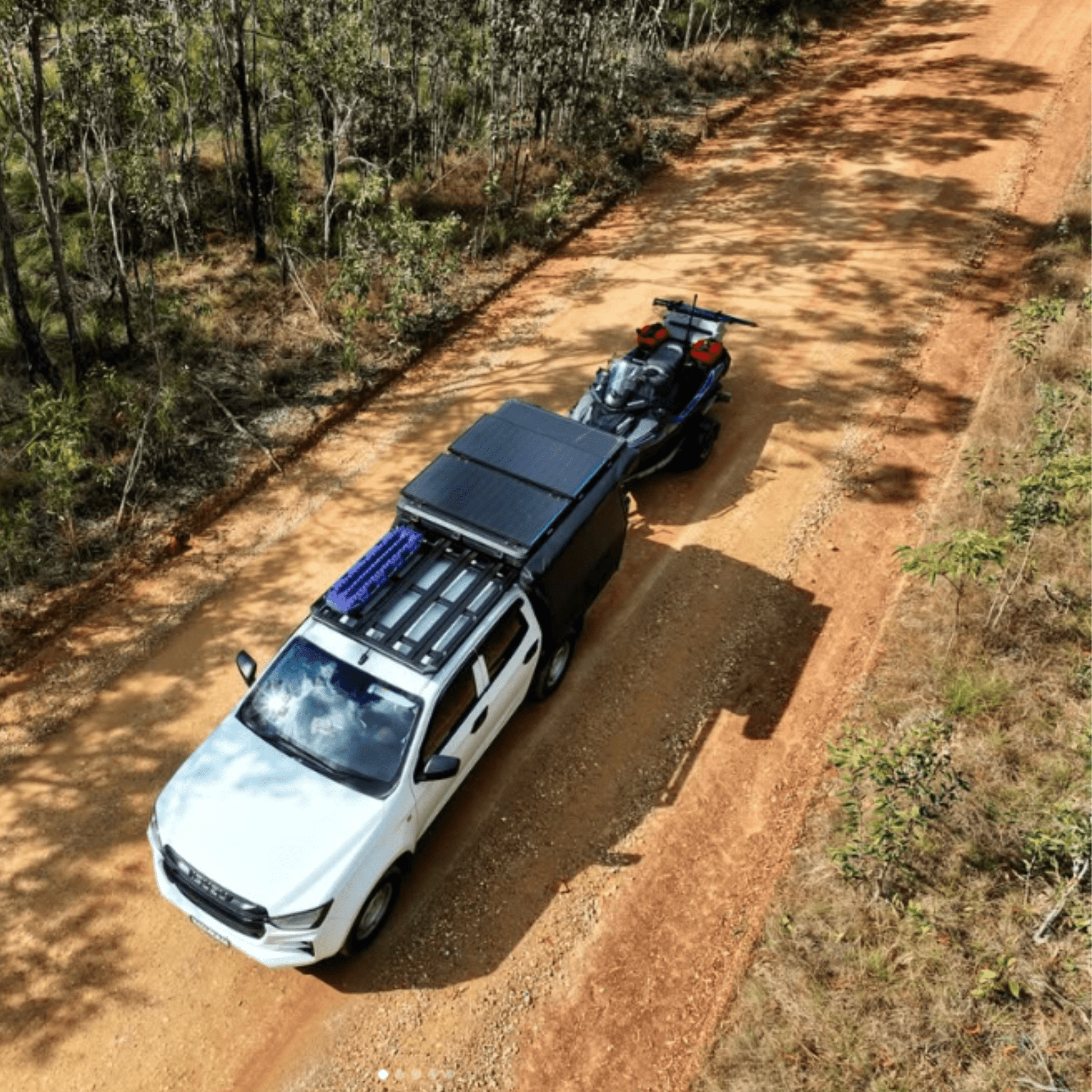

The KickAss Engineering team has designed these panels to be the perfect dimensions for vehicle mounting on your 4WD, caravan, or trailer.
Permanent Power Solution
Elevate your 12V setup to the next level with the new KickAss 170W Fixed Solar Panel. It has been designed and tested in Australian conditions to offer the most efficient solar solution for your 4WD, trailer, caravan, or boat. One of the significant advantages of a fixed panel is its ability to operate continuously once connected to your 12V system. With optional mounting accessories, you can effortlessly attach the solar panel to your vehicle.

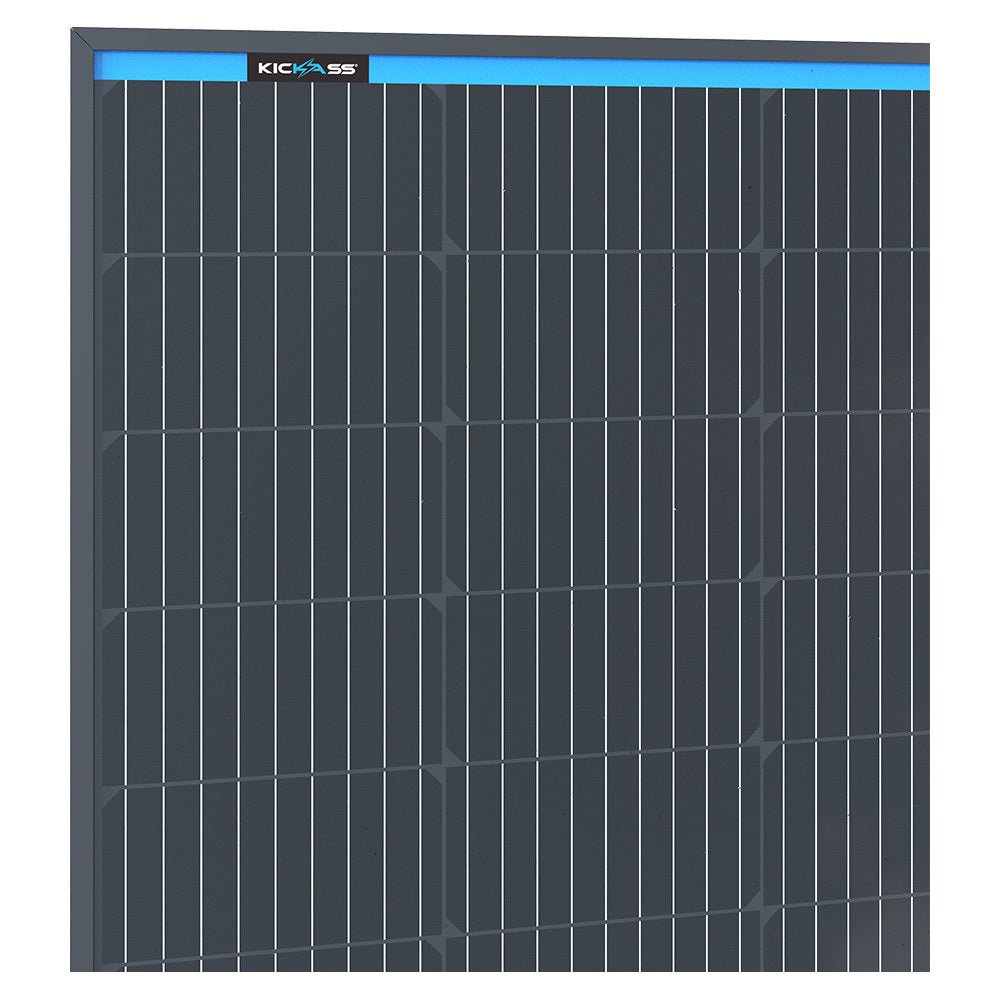

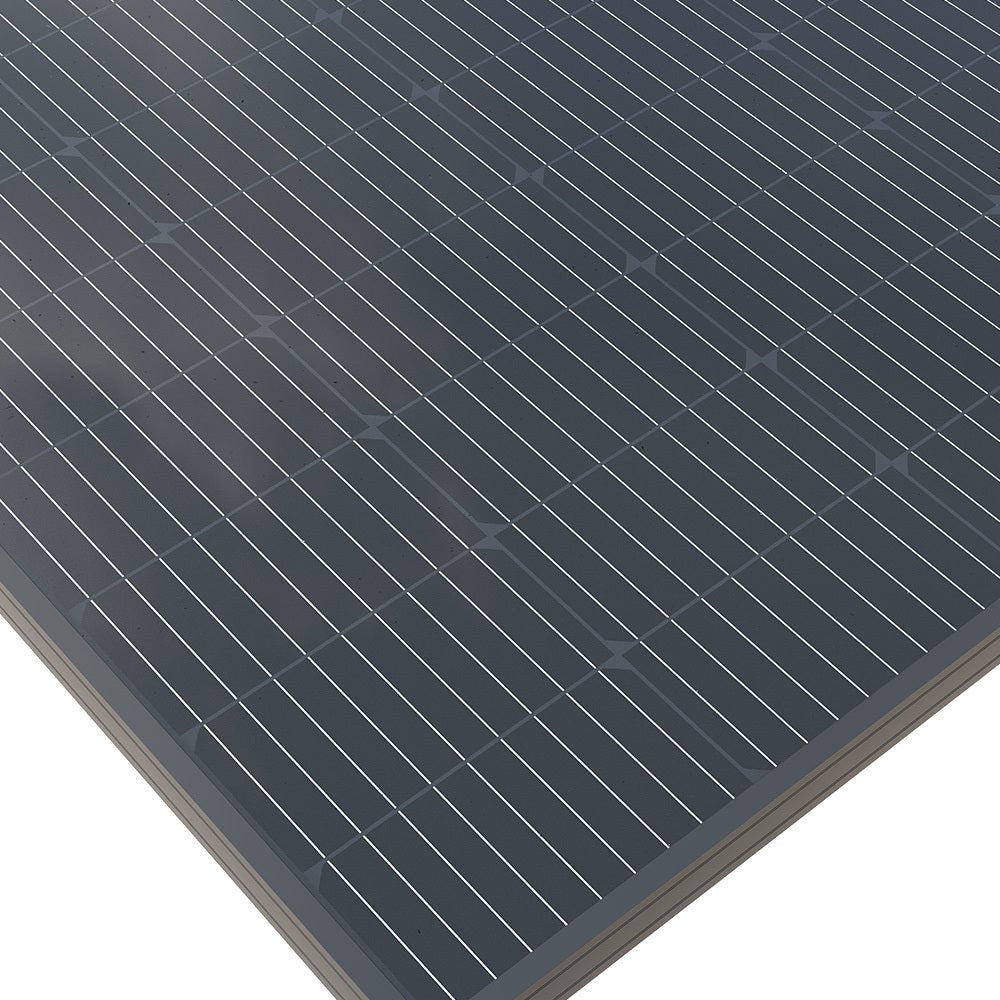

A-Grade Monocrystalline Solar Cells
Made with the highest quality monocrystalline cells, the KickAss 12V 170W Fixed Solar Panels provide 15–25% more efficiency than other panels on the market. Monocrystalline panels also deliver increased performance in low-light conditions.
Thick Tempered Glass
The highly transparent anti-reflective tempered glass provides high impact resistance against hail, stones, and accidental knocks. Perfect for permanent mounting and withstanding harsh Australian weather conditions.
