KickAss Smart 20A 12V/24V MPPT In-Line Solar Charge Controller + Integrated Bluetooth
KickAss Smart 20A 12V/24V MPPT In-Line Solar Charge Controller + Integrated Bluetooth
SKU:KA24MPPTIL20A
Harness the full power of your solar setup with the KickAss 20A 12V/24V MPPT In-Line Solar Charge Controller. Designed to be efficient and easy to use, it delivers smart, high-speed charging with plug-and-play simplicity, Bluetooth monitoring, and full Lithium compatibility – perfect for pairing with solar blankets and portable solar panels.
Specifications
Specifications
| Nominal Charging Voltage | 12V / 24V |
| Charging Mode | MPPT |
| Battery Types | AGM / GEL / LiFePO4 |
| Standby Power | 0.3W Max |
| Maximum Charging Current | 20A |
| Maximum Solar Input Voltage | 30V (VOC) for 12V Batteries; 60V (VOC) for 24V Batteries |
| Maximum Solar Input Power | 300W for 12V Batteries; 600W for 24V Batteries |
| Maximum Vmp Working Voltage | 12V Battery: 20V Vmp | 24V Battery: 45V Vmp |
| Communication | Built-in Bluetooth Module |
| Operating Temperature | -20°C to +45°C / -4°F to +113°F |
| Operating Altitude | ≤3000m |
| Ingress Protection | IP45 |
| Connection | 50A Anderson Connectors |
| Boost (Bulk) Charge Voltage | 14.4V for 12V Batteries; 28.8V for 24V Batteries |
| Float Charge Voltage | 13.8V for 12V Batteries; 27.6V for 24V Batteries |
| Item Dimensions | L 3.5cm × W 8cm × H 15cm |
| Weight | 350g |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor
Get the most out of your solar setup with the KickAss 20A MPPT In-Line Solar Charge Controller – a compact, high-performance solution for fast, efficient, and intelligent battery charging. Whether you’re camping, caravanning, or running an off-grid system, this controller keeps your batteries charged and protected with cutting-edge MPPT technology and effortless plug-and-play operation.
High-Efficiency 20A In-Line MPPT Charging
Harness every watt of sunlight with advanced Maximum Power Point Tracking (MPPT) technology. This smart controller delivers up to 20A of charging power while automatically adjusting to extract the maximum energy from your solar panels. The result? Faster, more efficient charging that keeps your batteries topped up even in variable light conditions.
Quick Plug & Play Setup
Forget complex wiring – the KickAss MPPT Controller is ready to go straight out of the box. With Anderson-style connectors for both input and output, you can connect your solar panels and batteries in seconds. No tools, crimping, or electrical know-how required – just plug in and start charging.
Smart Bluetooth Monitoring
Stay connected wherever you are with the KA SOLAR App. Track real-time voltage, current, and charge status right from your smartphone, and review historical data to monitor system performance over time. Ideal for off-grid explorers who like to keep an eye on every watt.
Compact, Portable & Built Tough

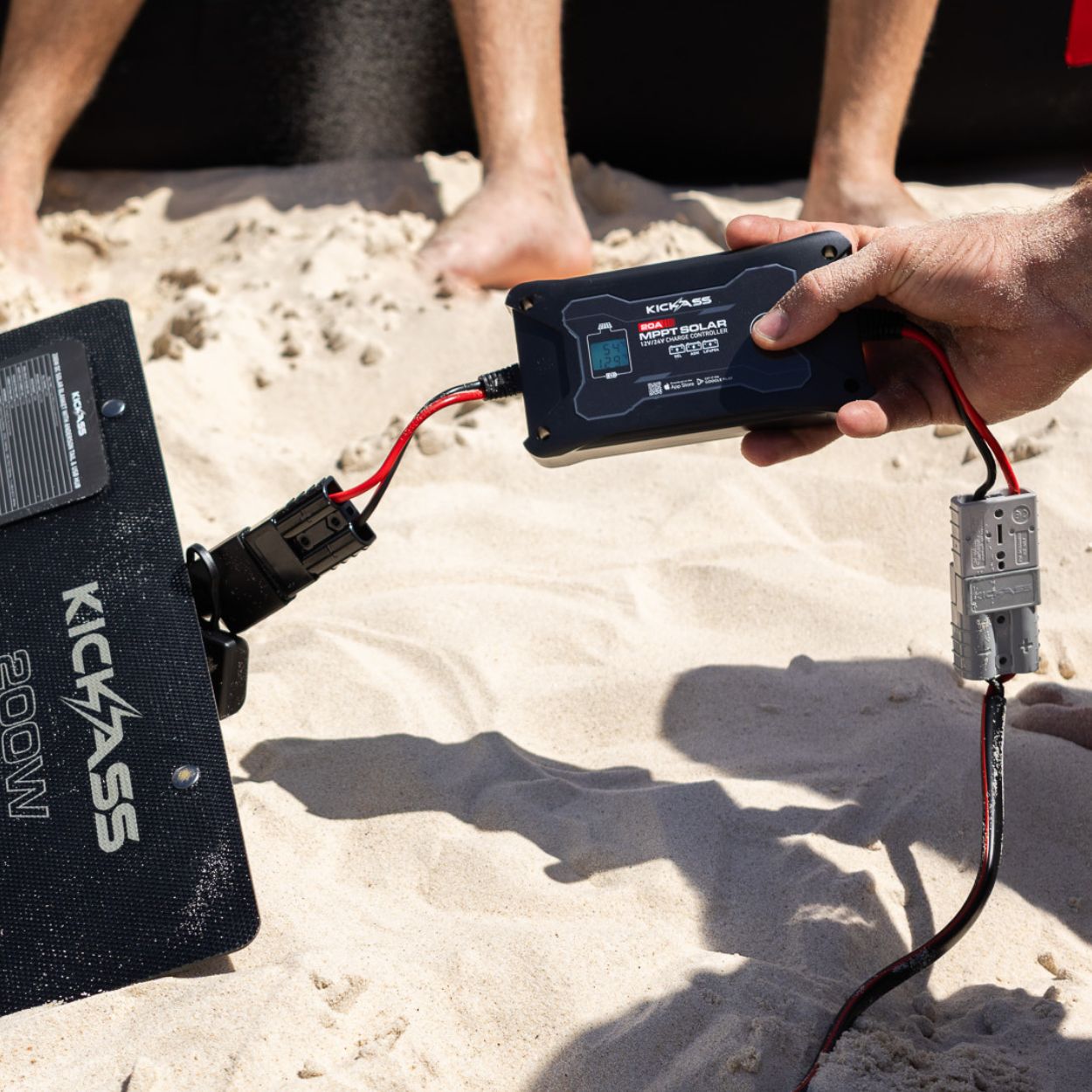

Small in size but big on capability, this rugged in-line controller is the perfect partner for portable solar panels. Park your 4WD or caravan in the shade while your solar panel sits in the sun – simply connect the panel to the controller and plug into your setup for maximum flexibility and efficiency.
Dual Voltage Compatibility
Compatible with both 12V and 24V battery systems, the KickAss MPPT Controller automatically adjusts for your setup. Delivering up to 300W for 12V systems or a massive 600W for 24V setups, it’s ideal for multi-battery rigs, campers, and off-grid systems running a mix of gear.
Easy-to-Read LCD Display
The onboard LCD display gives you instant access to your charging status, voltage, current, and battery information. It’s simple to configure and read – perfect for checking your system at a glance without needing your phone.
Optimised for Lithium & Other Chemistries
Fully compatible with LiFePO?, AGM, and Gel batteries, this intelligent controller ensures each battery type receives the correct charge profile. Lithium users can enjoy optimal charging efficiency and extended cell life with precise voltage control and protection features.
Advanced Multi-Stage Charging
Using a sophisticated multi-stage algorithm, the controller automatically transitions through bulk, absorption, and float stages to maximise performance and extend battery life. It ensures consistent charging power and maintains your batteries in peak condition, even during long-term storage.
