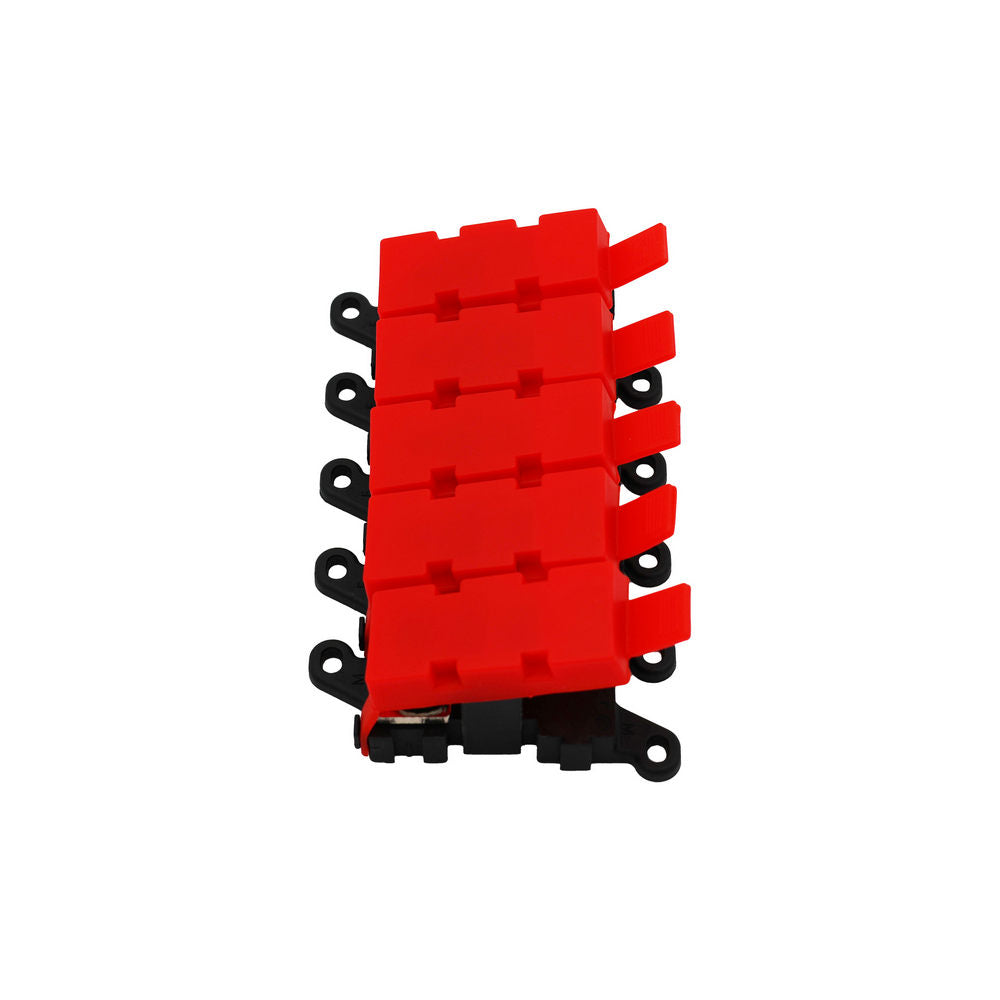

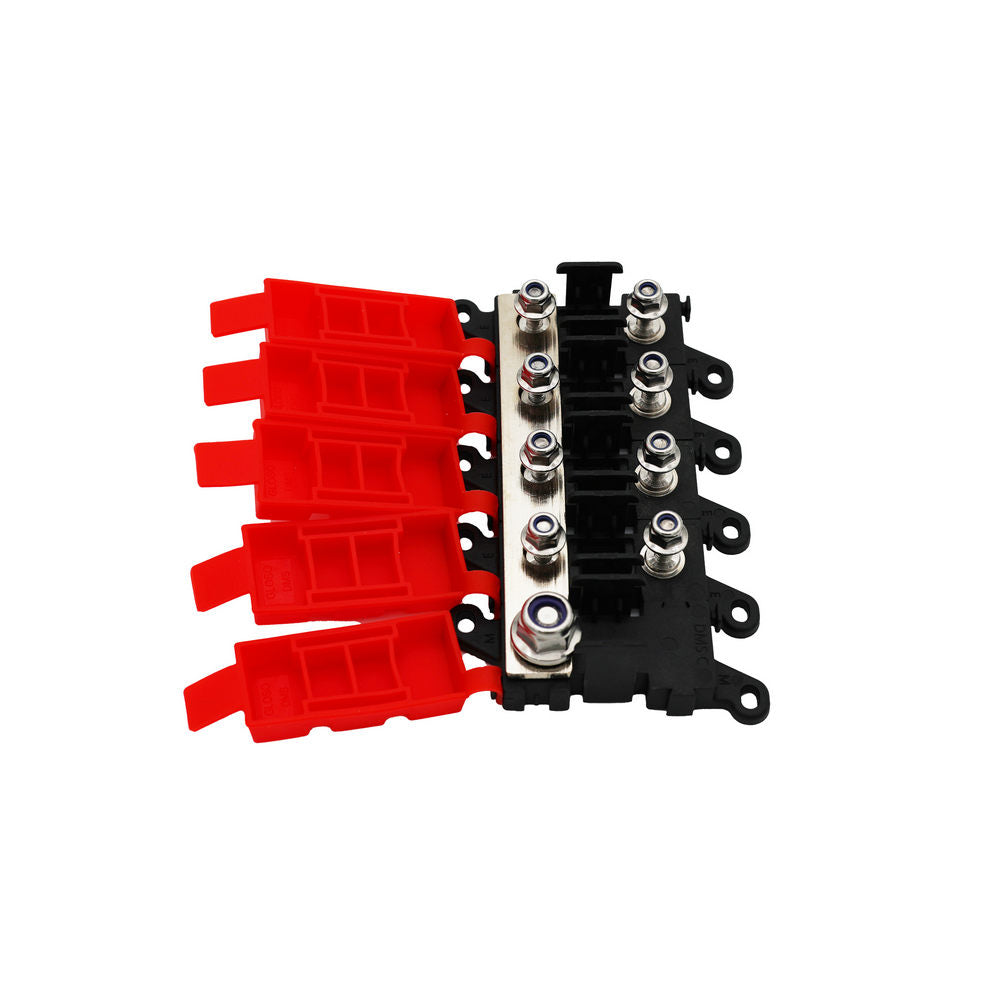

KickAss Bus Bar Combo 4 post
KickAss Bus Bar Combo 4 post
SKU:KAFUSEMIDIBB-4
Specifications
Specifications
| Product Weight | 228.9g |
| Product Dimensions | 134 × 80 × 27mm |
| Covered Maximum Current | 145A |
| Uncovered Maximum Current | 200A |
| Maximum Total Combined Rating | 400A Continuous |
| Operating Temperature Range | -40°C (-40°F) to 85°C (185°F) |
| Mounting Torque | 22 in-lbs (2.5 Nm) |
| Fuse Module Torque | M5, 44 in-lbs (5 Nm) |
| Input Module Torque | M8, 88 in-lbs (10 Nm) |
| Cap Material | Silicone Rubber, 200°C Max |
| Base Material | PPS, 94V0 Grade, 230°C Max |
| Stud (Input Unit) | M8 Stainless Steel with Keps Nut |
| Studs (Midi Fuse Block) | M5 Stainless Steel with K-Nuts |
| Plastic Flammability Rating | V0 |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor
The KickAss 4 Post Bus Bar Combo provides a neat, secure way to distribute power in your 12V system. It simplifies wiring and keeps connections organised. Built with durable materials for high-current applications, it’s ideal for custom 4WD, caravan, marine, and off-grid installations.
