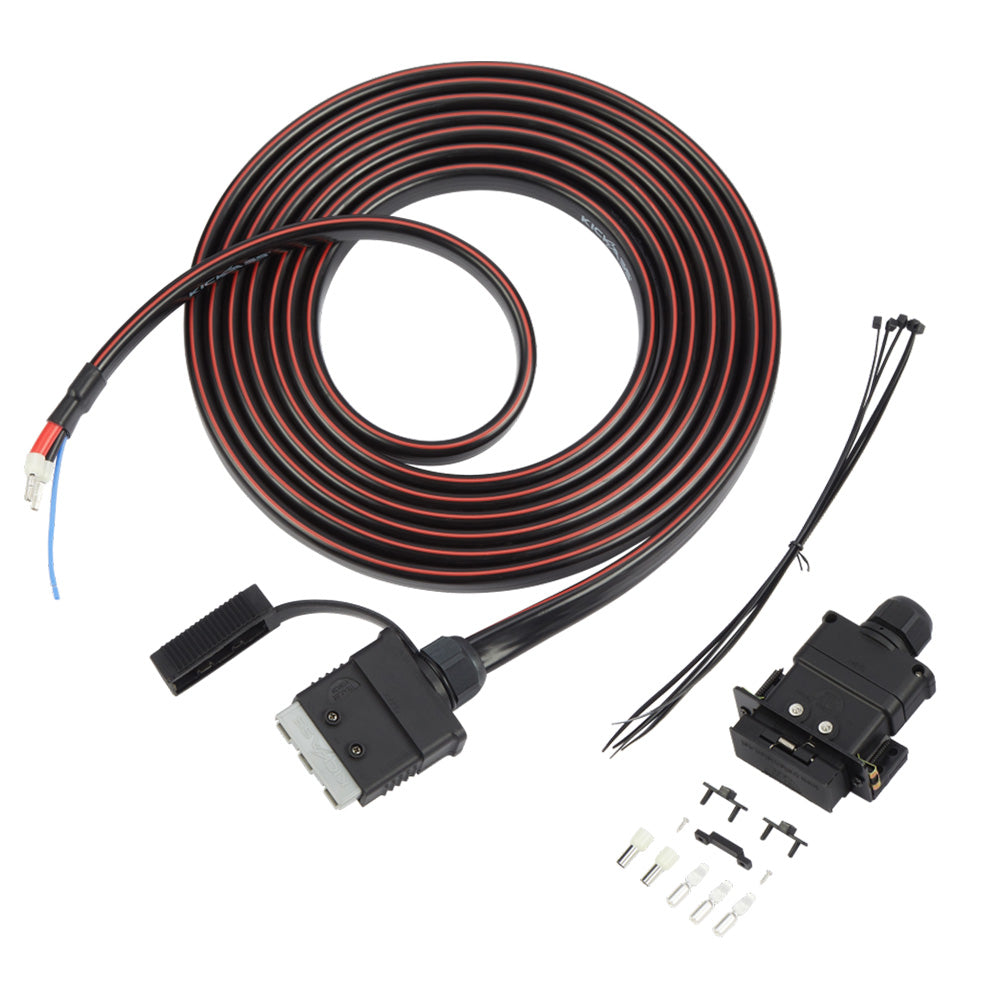

KickAss DCDC Trailer Wiring Kit - Supports connection between a 3 Pin trailer mounted connector and the PowerBoss
KickAss DCDC Trailer Wiring Kit - Supports connection between a 3 Pin trailer mounted connector and the PowerBoss
SKU:KA3PINTODCDCWK
The KickAss DCDC Trailer Wiring Kit provides a plug and play solution between the PowerBoss in a trailer or caravan and the drawbar. The kit comes with a heavy duty surface mount hard cover for the 3-pin Anderson connector to be installed on the vehicle's tow bar. The hard cover is weather resistant and provides a secure locking mechanism.
Specifications
Specifications
| Main Cable Length | 6.5m - 3 Core |
| Ignition Cable Extension | 3m - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Alternator Connection | Ring Terminals - M8 - Battery / M6 - Fuse |
| Anderson Connection | Anderson Pins |
| Fuse | 80A MIDI Fuse with Holder |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor
Plug and Play Wiring Kit for Trailer and Caravan Installations: This kit simplifies PowerBoss trailer and caravan setups by providing a dedicated wiring solution from the PowerBoss to the draw bar. It includes a heavy-duty 3-pin Anderson cover that seamlessly integrates with 6.5m and 8m KickAss Heavy Duty Plug and Play DCDC Wiring Kits.
Off-Road Ready Housing: The surface mount hard cover ensures secure installation of the 3-pin Anderson connector from the vehicle’s alternator, making it ideal for rugged off-road conditions.
Compatible with KickAss 3 Pin DCDC Wiring Kits: Complete your trailer or caravan installation by pairing the KickAss DCDC to trailer wiring kit with either the 6.5m or 8m kits.
