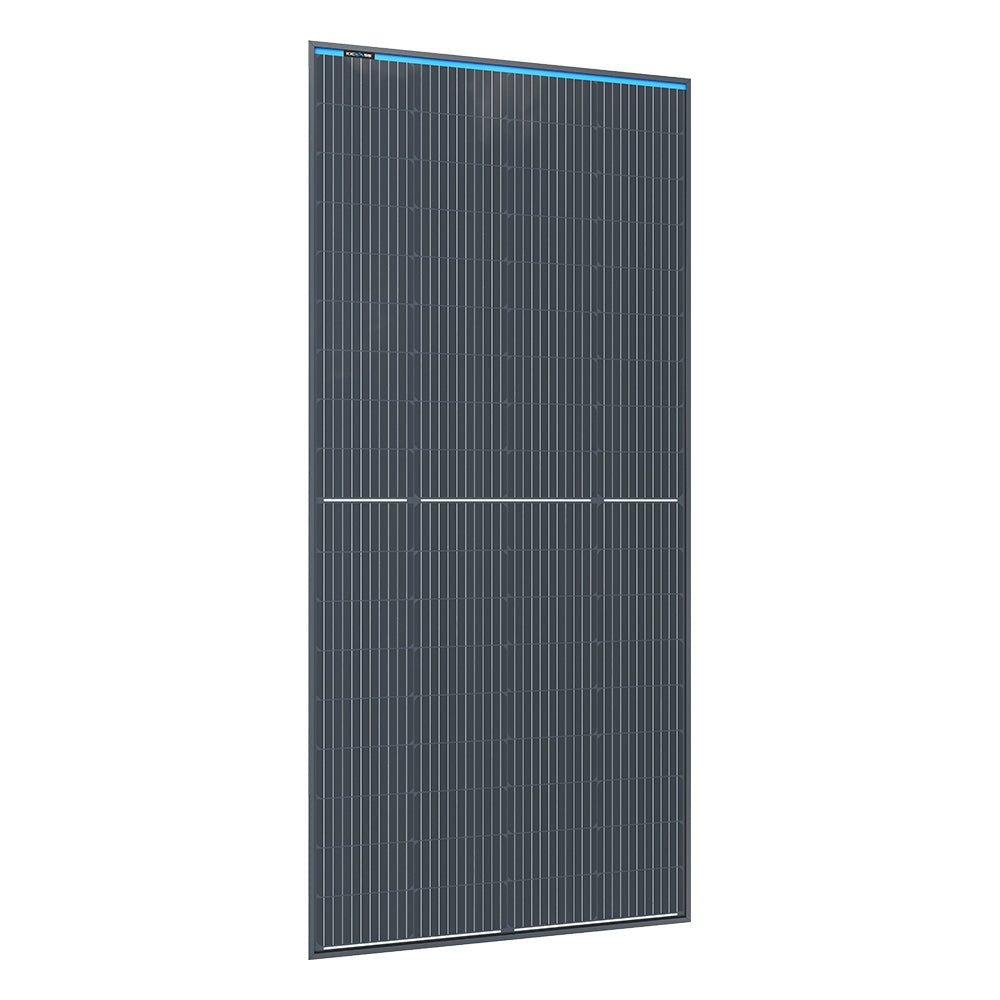

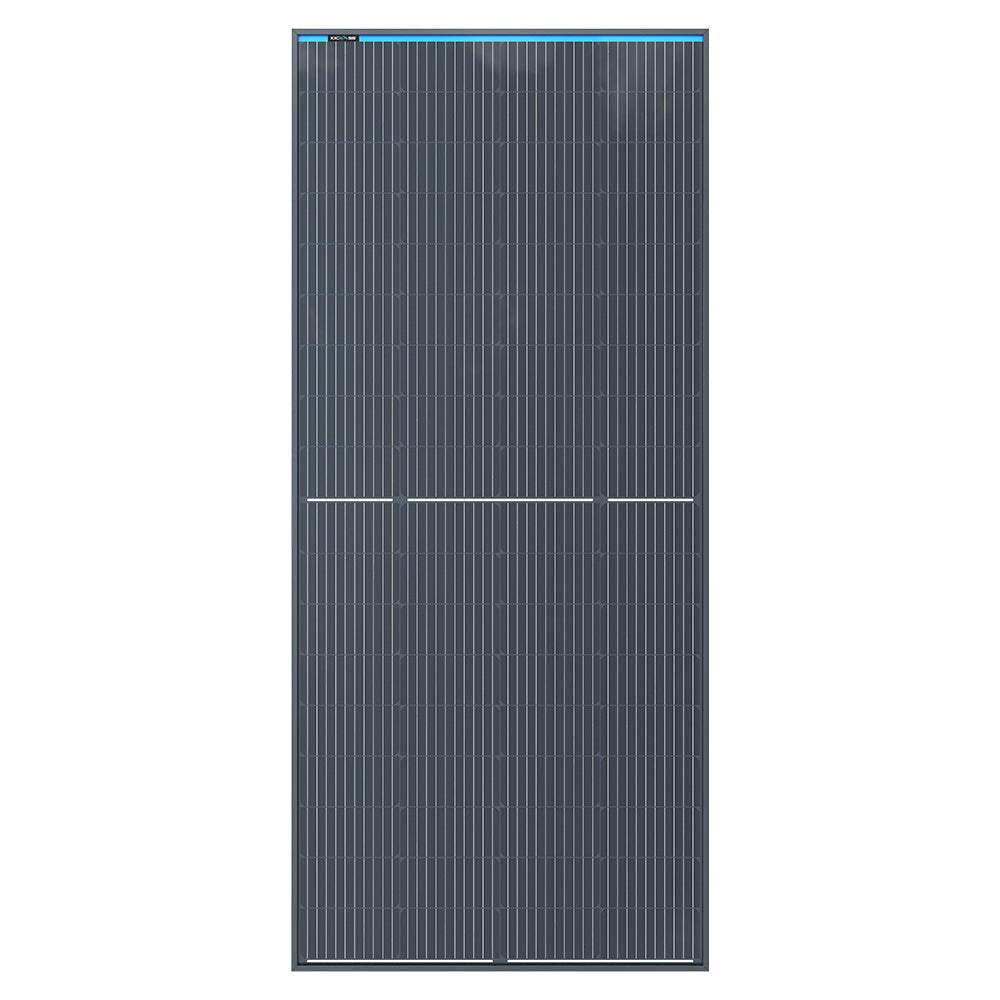

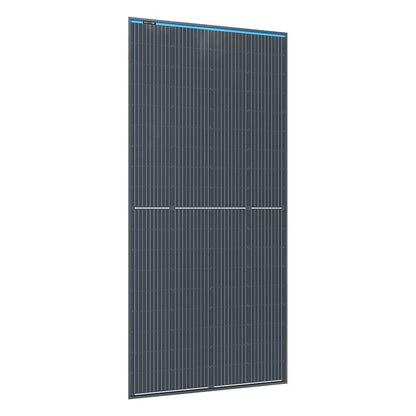

KickAss 12V 250W Fixed Solar Panel, Glass Roof Top
KickAss 12V 250W Fixed Solar Panel, Glass Roof Top
SKU:KARTSP250
KickAss 12V 250W Fixed Glass Solar Panel, built with A-grade monocrystalline cells. Generates power even when partially shaded, resistant to hail, stones and accidental knocks.
Specifications
Specifications
| SKU | KARTSP250 |
| Cell type | High efficiency A-grade monocrystalline |
| Max power (Pmax) | 250W |
| Max power voltage (Vmp) | 20.69V |
| Max power current (Imp) | 12.37A |
| Open circuit voltage (Voc) | 24.86V |
| Short circuit current (Isc) | 13.06A |
| Dimensions | 1725mm x 765mm x 35mm |
| Weight | 13.80kg |
| Frame | Black powder coated aluminium |
| Application class | Class A |
| Fire safety class | Class C |
| Maximum system voltage | 1000VDC |
| Operating temperature | -40°C to 85°C |
| Nominal operating cell temperature | 47°C |

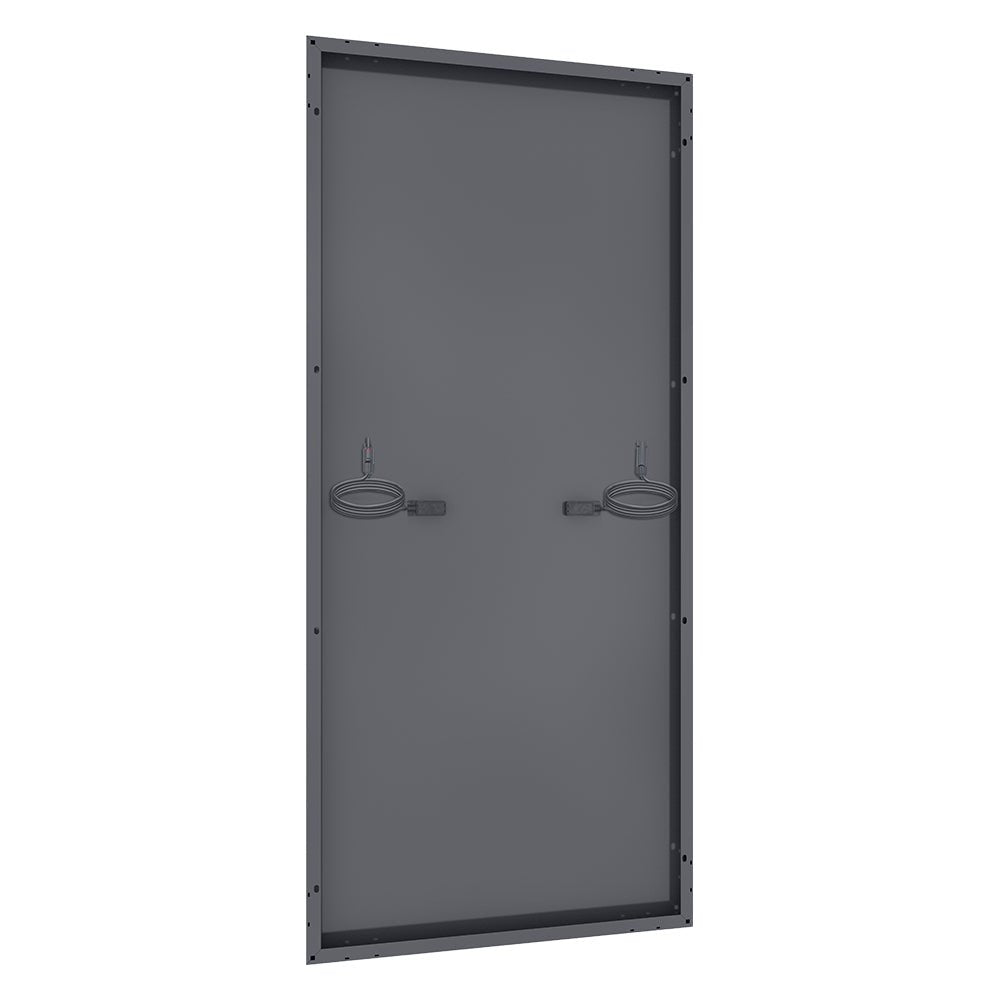

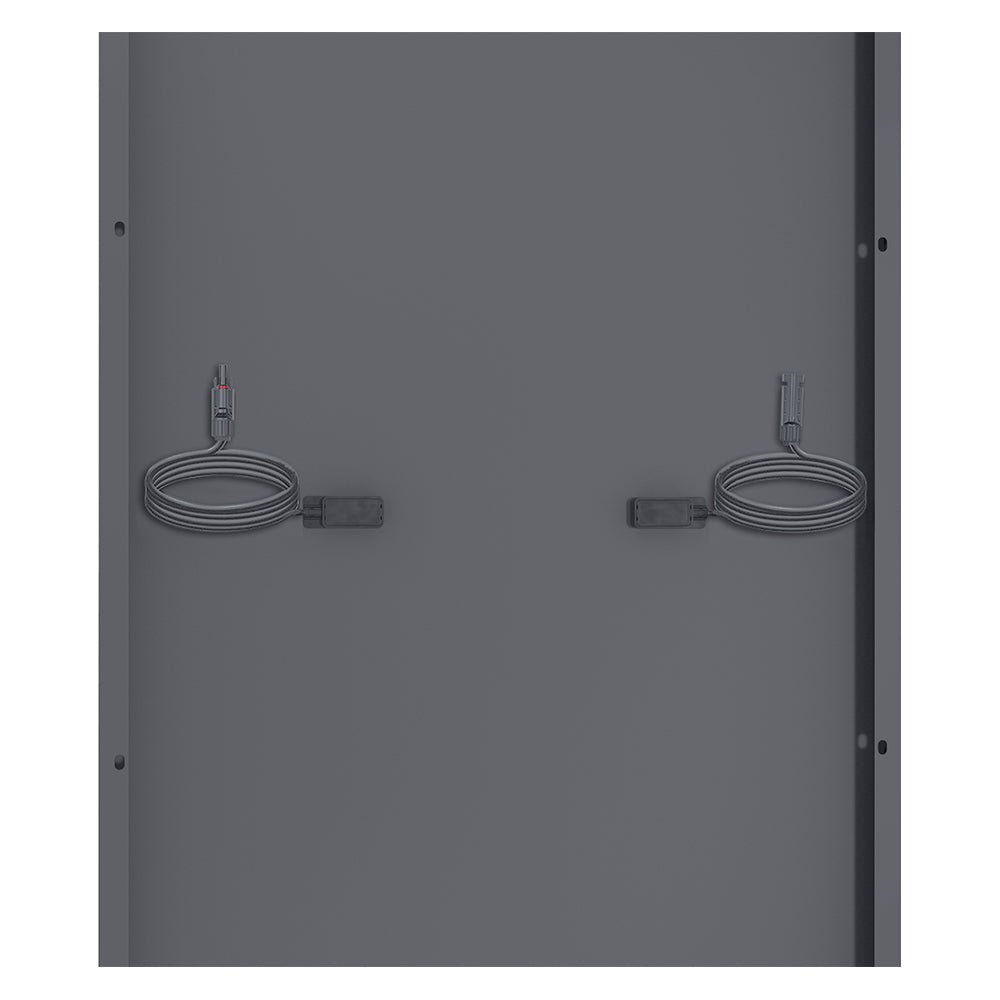

| Connector type | Water proof PV Connector |
| Standard test condition | 1000W/m² AM1.5 25° |
| Power tolerance | + / - 5% |
| Dimension tolerance | + / - 2mm |
| Conversion efficiency | 20.6% |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor
Glass Roof Top 12V Solar Panel 250W
Bypass Diode
The bypass diode will maintain the solar panel's output in the event the cells are partially shaded. This technology ensures superior performance by providing a more consistent power supply, ideal for rooftop mounting.
Perfect Sizing for Roof Top Mounting
The KickAss Engineering team has designed these panels with optimal dimensions for mounting on your 4WD, caravan, or trailer.
Permanent Power Solution
Elevate your 12V setup with the new KickAss 250W Fixed Solar Panel. Designed and tested for Australian conditions, it delivers efficient solar power for your 4WD, trailer, caravan, or boat. Fixed panels offer continuous operation once connected to your 12V system. With optional mounting accessories, installation is quick and secure.

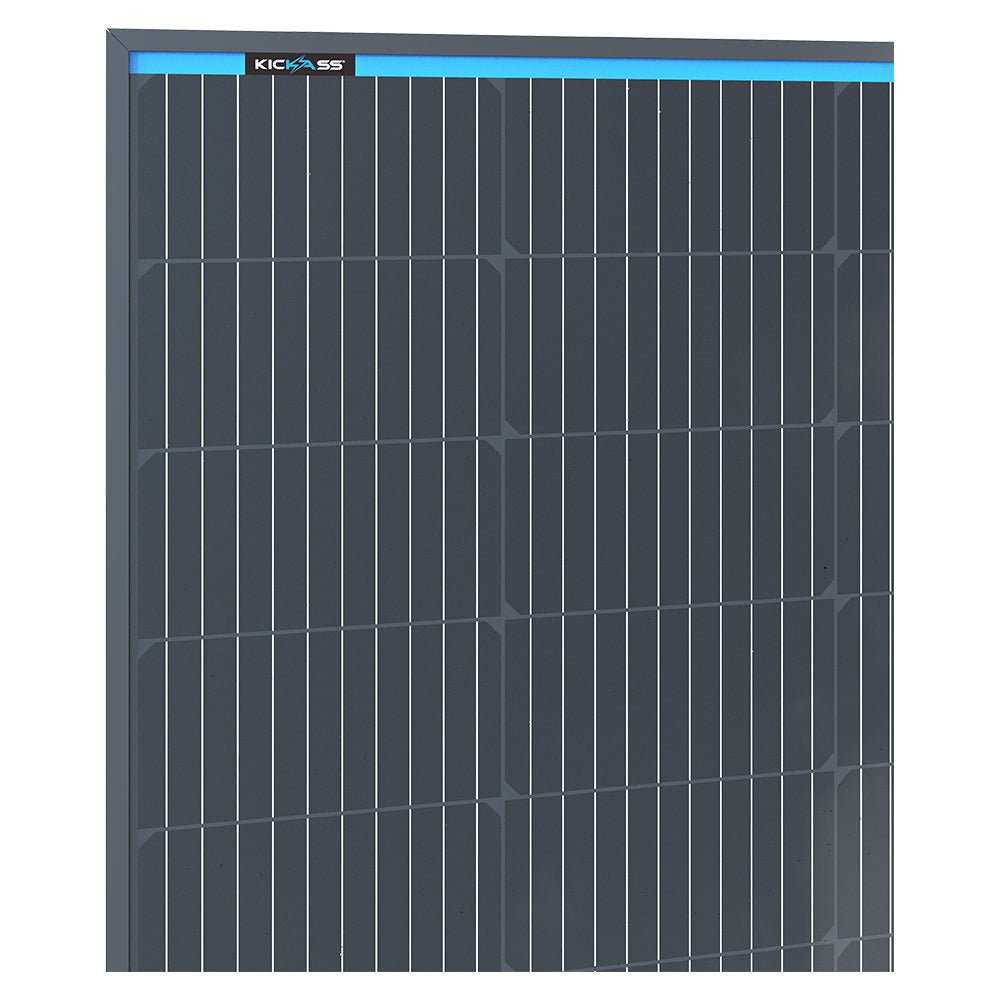

A-Grade Monocrystalline Solar Cells
Made with premium monocrystalline cells, the KickAss 12V 250W Fixed Solar Panel offers 15–25% more efficiency than many alternatives. These panels also perform better in low-light conditions.

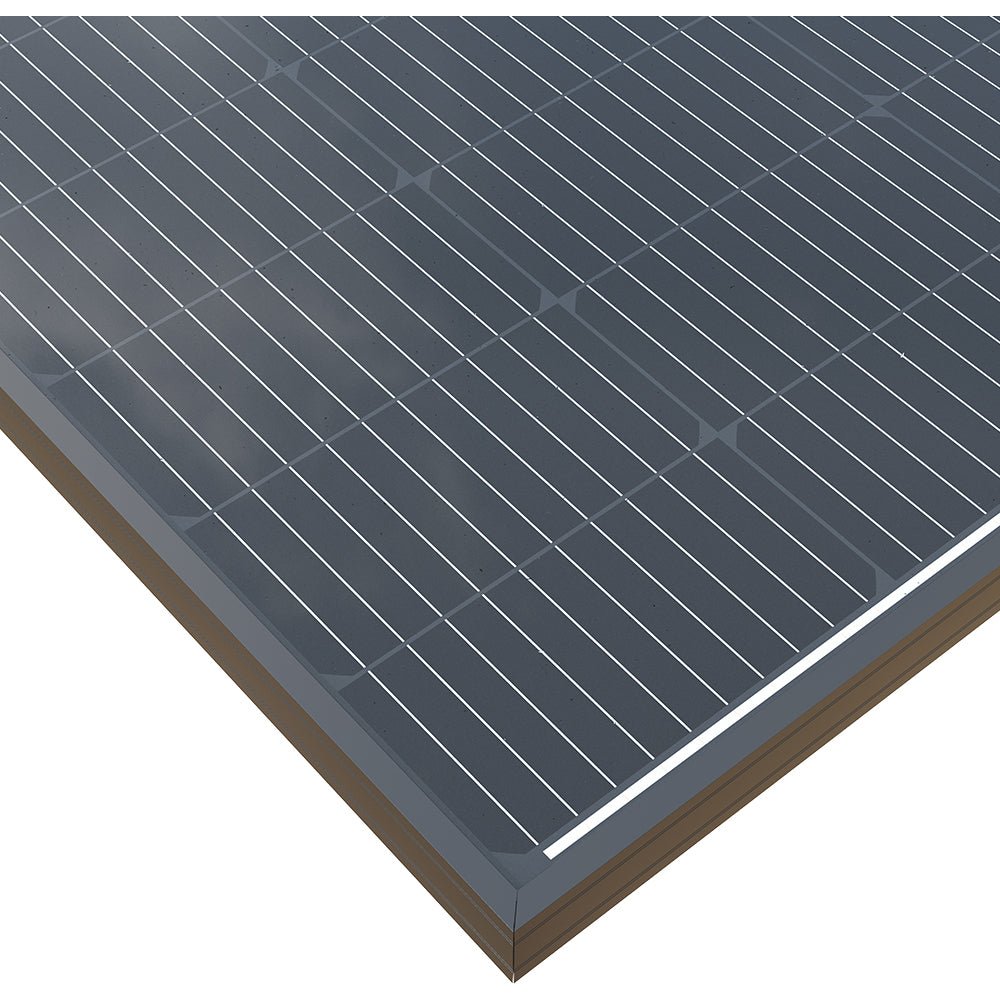

Thick Tempered Glass
The highly transparent, anti-reflective tempered glass provides strong resistance against hail, stones, and accidental knocks. Perfect for permanent mounting and built to withstand harsh Australian weather conditions.
