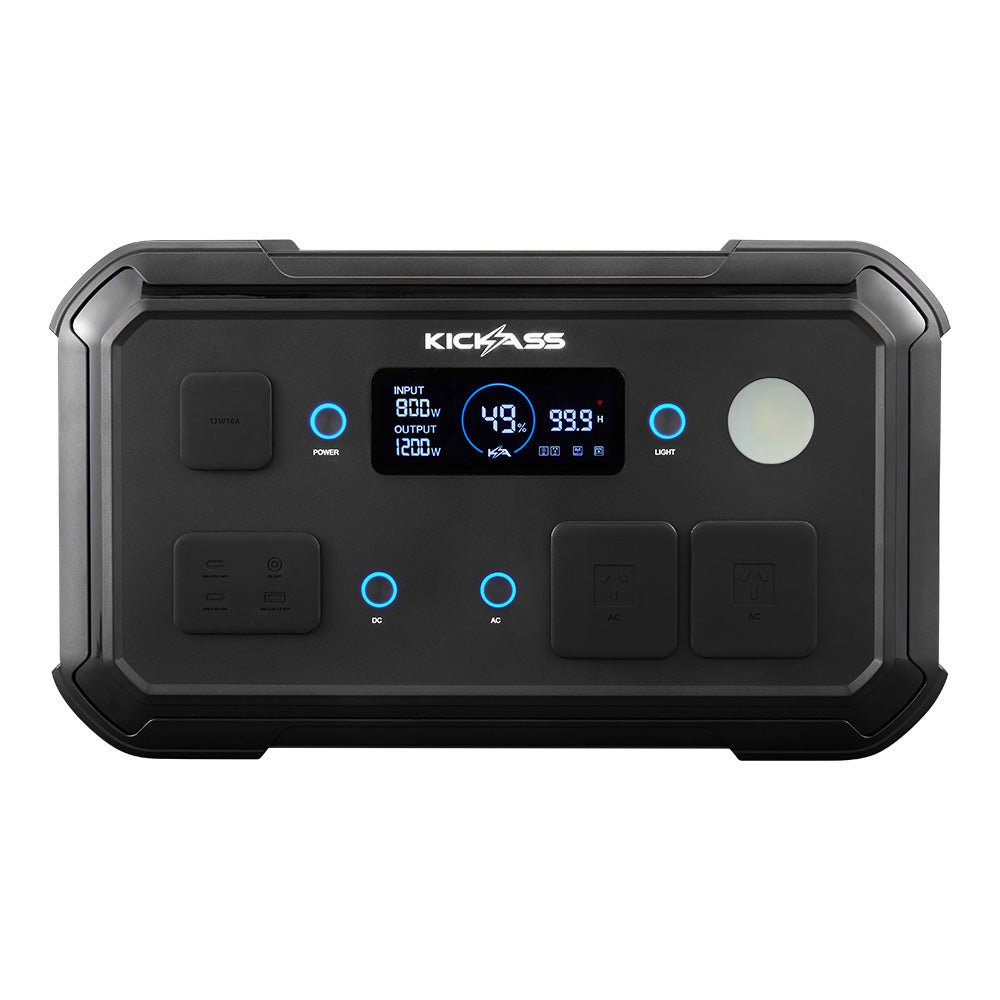

Kickass Kickcharge 1200 LiFePO4 Power Station MKII - 1120Wh, 87.5Ah @ 12.8V
Kickass Kickcharge 1200 LiFePO4 Power Station MKII - 1120Wh, 87.5Ah @ 12.8V
SKU:KAPHUB-1200-MKII

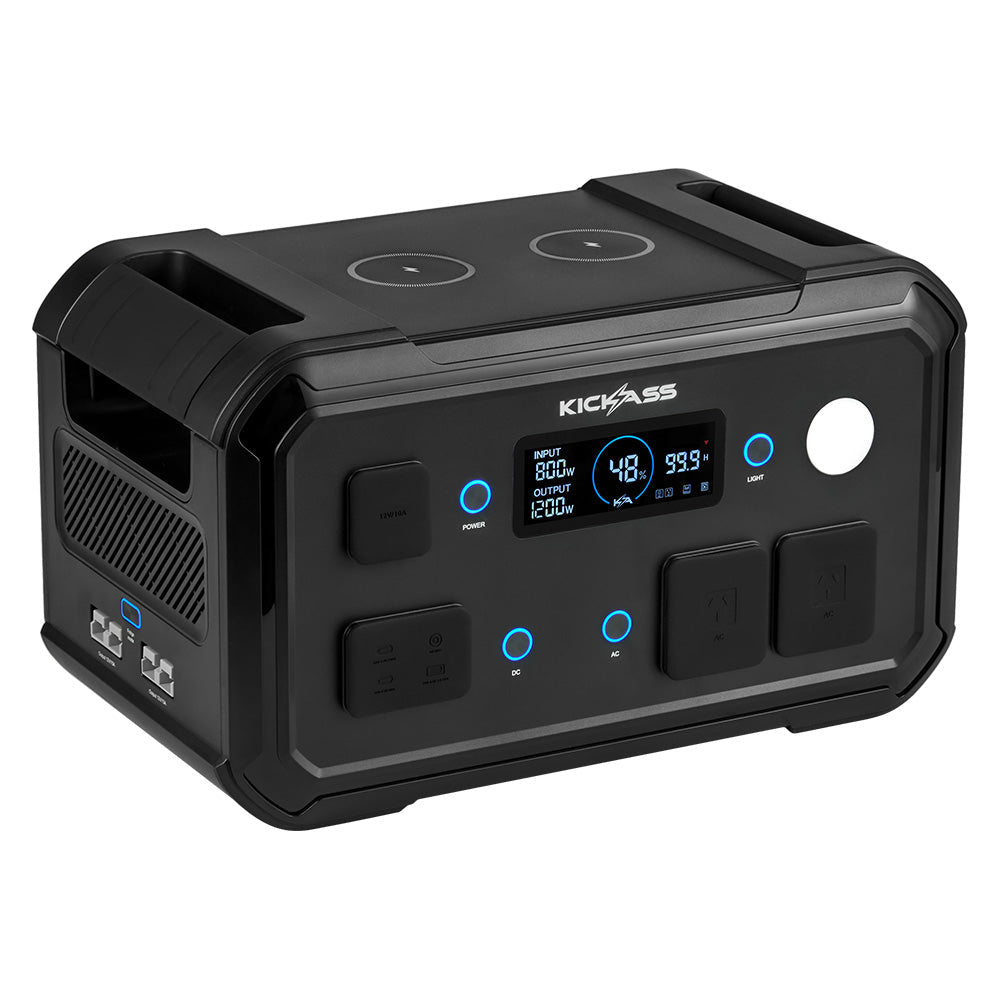

The new KickAss KickCharge 1200 LiFePO4 Power Station packs serious off-grid power into a rugged, portable unit. With a long-life 1120Wh LiFePO4 battery, it’s built for real-world adventures. With an integrated 1200W pure sine wave inverter and plenty of power ports, it delivers smooth, reliable energy for everything from powering fridges & Starlink to lights, laptops and BBQs.
Specifications
Specifications
| Battery Capacity | 1120Wh / 22.4V 50Ah (equivalent to 12.8V 87.5Ah) |
| Cell Type | REPT Prismatic |
| Max Continuous Discharge | 1200W |
| Max Continuous Charge | 800W |
| Peak Discharge | 125A @ 10s |
| Cycle Life | 6000+ cycles | 80% DOD | 1C Discharge | 1C Charge |
| Standby Current | 20mA |

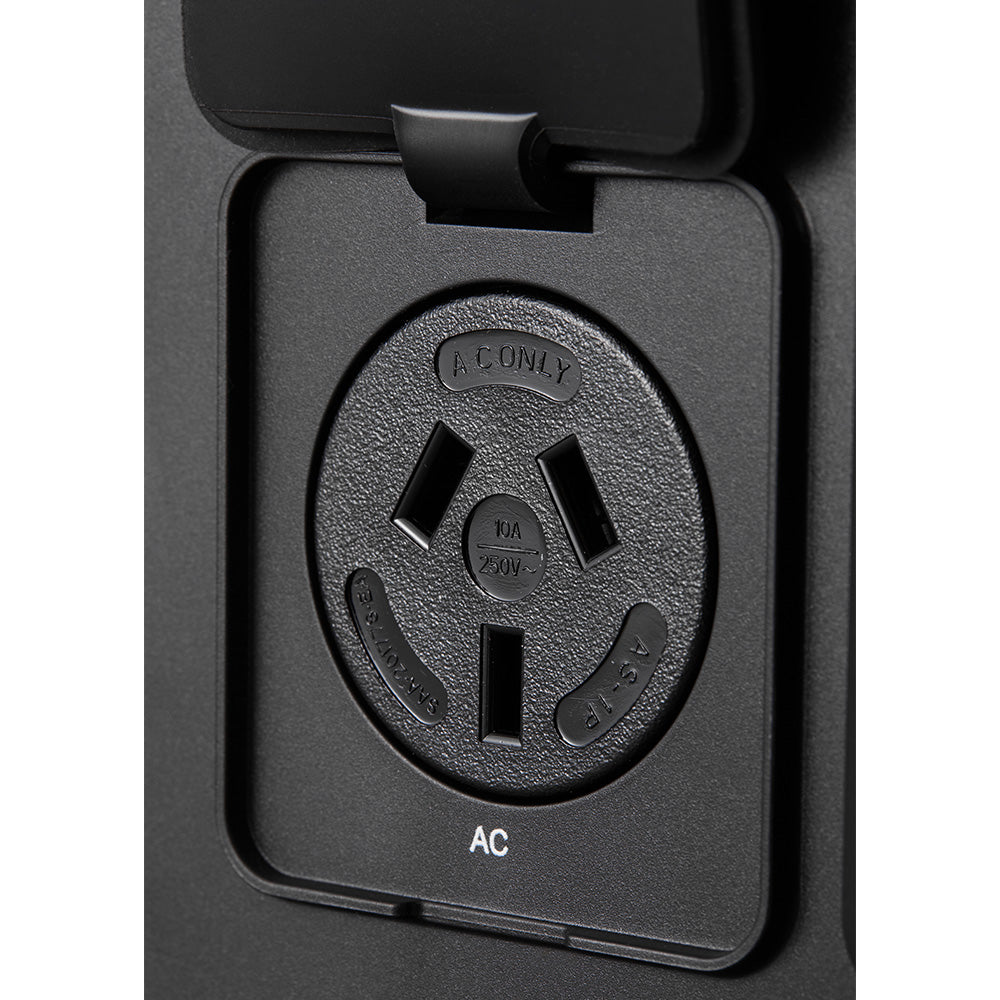

| AC Output Specifications |
Rated output voltage: 230V Output Frequency: 50Hz Waveform: Pure sine wave Rated output power continuous: 1200W Short-circuit protection: Have Resistive Overload protection: 110–120% activates after 10s; >200% activates after 300ms Inductive Overload protection: >130% activates after 1.5s Surge power: 2400W @ 300ms |
| Anderson Output 1 Specifications |
Output Voltage: 12–13V Output continuous current: 15A Output continuous power: 180W Output over current protection: 16A Short-circuit protection: Have |
| Anderson Output 2 Specifications |
Output Voltage: 12–13V Output continuous current: 15A Output continuous power: 180W Output over current protection: 16A Short-circuit protection: Have |

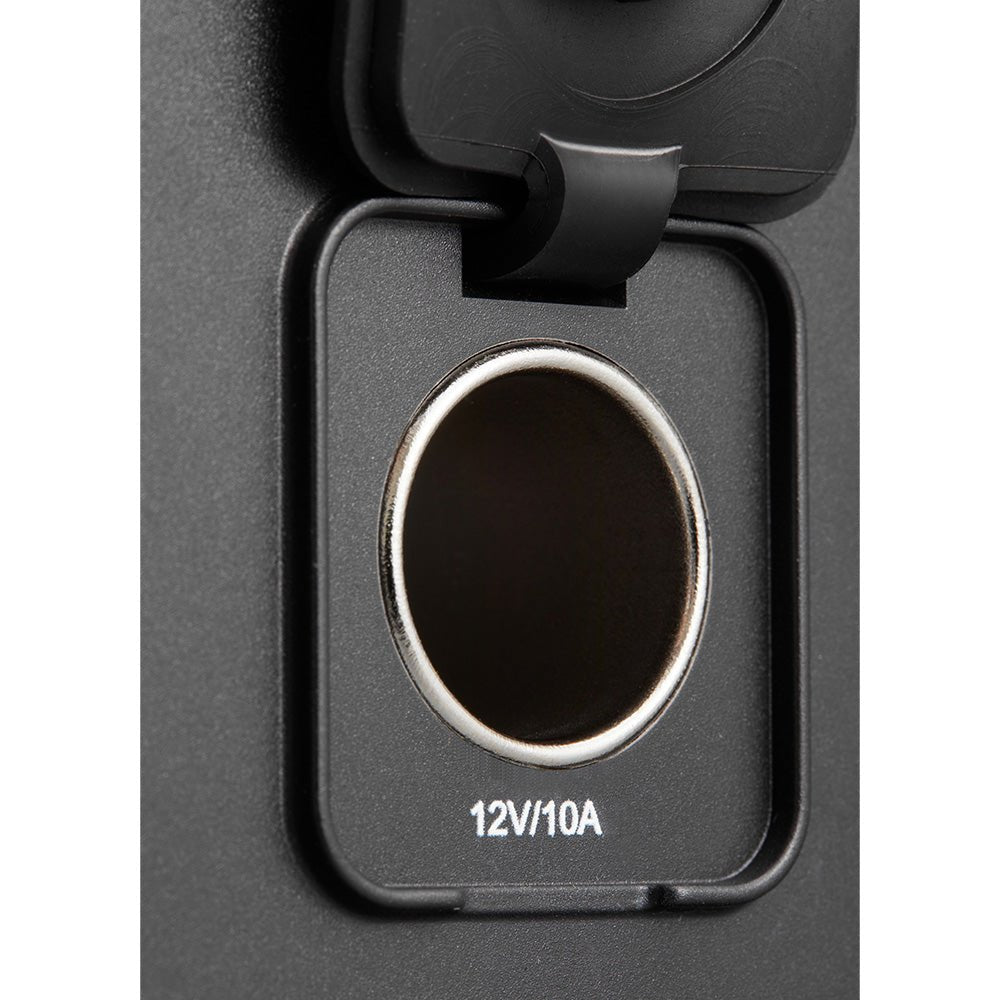

| Cigarette Lighter Output Specifications |
Output Voltage: 12–13V Output continuous current: 10A Output continuous power: 120W Output over current protection: 11A Short-circuit protection: Have |

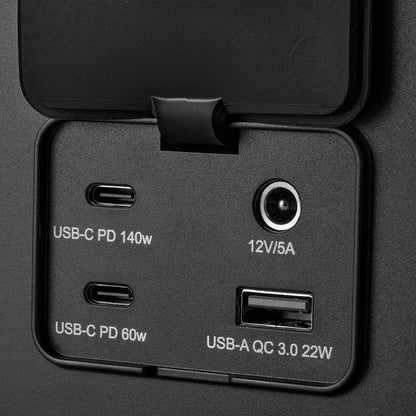

| USB C PD 3.1 140W Max Output |
5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A 140W Max Short-circuit protection: Have |
| USB C PD 3.0 60W Max Output |
5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A 60W Max Short-circuit protection: Have |
| USB A QC 3.0 22W Max Output |
5V/3A, 9V/2A, 12V/1.8A 22W Max Short-circuit protection: Have |
| DC 5521 Output Specifications |
Output Voltage: 12–13V Output continuous current: 5A Output over current protection: 6A Short-circuit protection: Have |
| Wireless Output Specifications | 10W Max x 2 |
| LED Light Output Specifications | 5W x 1 |
| AC Input Specifications |

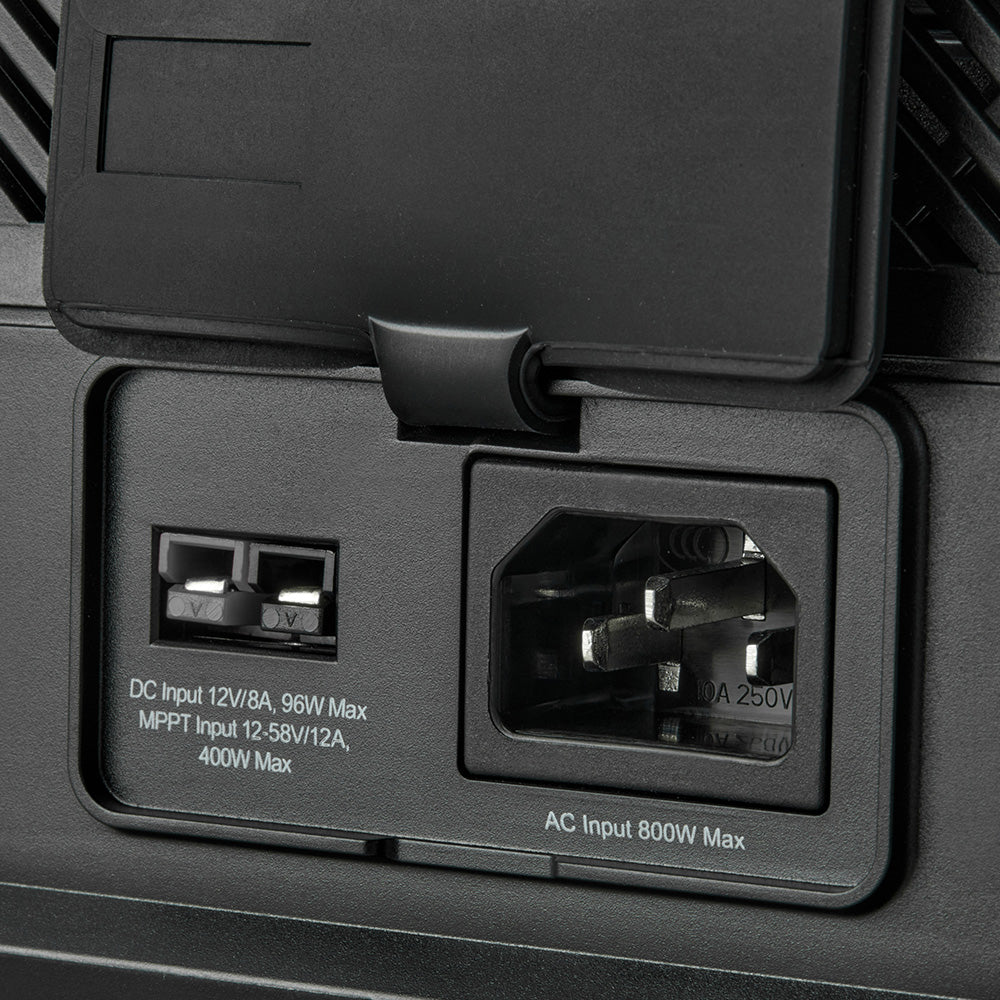

AC Input Voltage range: 220V–240V AC Input Power: 800W Max Bypass mode input: 1200W Max |
| MPPT Input Specifications |
VOC Voltage range: 12–58V Input current: 12A Max |
| DC Car Charging Specifications |
Working voltage: 12–13V Input current: 8A Max |
| Product Dimensions | 450 x 265 x 300 mm (LWH) |
| Product Weight | 15kg |
| Certification | EN 61000 | AS/NZS 4763 | AS/NZS 62368 | IEC 62619 |
| Safety Protection Codes |
E1: DC 5521 & Cig Socket Output OCP/SCP E2: Anderson Output OCP/SCP E3: AC Output OCP/SCP E4: Charge or Discharge OTP E5: USB A and PD 60W Output OCP/SCP E6: PD 3.1 140W OCP/SCP E7: MPPT Overcharge Protection E8: AC Overcharge Protection |
User Manuals
User Manuals
Australia Wide Online Store
View the full range
Australian Retail Stores
Visit one of our retail locations across Australia
New Zealand
Call our New Zealand Distributor
The KickAss KickCharge 1200 LiFePO4 Power Station MKII is built for serious off-grid living, road trips, and backup power at home. Inside is a premium 1120Wh REPT Prismatic LiFePO4 battery (equivalent to 12.8V / 87.5Ah) rated for over 6000 cycles, delivering reliable, long-lasting energy.
Smarter, Cleaner Power Delivery
With a 1200W pure sine wave inverter (2400W surge), you can safely power sensitive electronics such as laptops, Starlink, or CPAP machines without interference or risk. It’s powerful enough to run a KickAss 400W portable air conditioner or even fire up your 600W electric BBQ at camp.
Fast Charging & Solar Ready
Get back to full power faster with up to 800W AC fast charging – taking you from 0 to 80% in just 50 minutes. When you’re off the grid, plug into the sun with up to 400W solar input via the mini-Anderson port. Pair it with a KickAss solar panel to enjoy a sustainable, renewable setup that keeps your power supply strong even in remote areas.
Intelligent Power Management
This new MKII model introduces a 1200W bypass input with smart power management. When connected to AC power, it intelligently distributes incoming power to your devices and uses any surplus energy to recharge the battery. The built-in UPS (Uninterruptible Power Supply) automatically switches to battery power within 10 milliseconds during a blackout, so your CPAP, fridge, or laptop keeps running without interruption.
All the Connections You Need

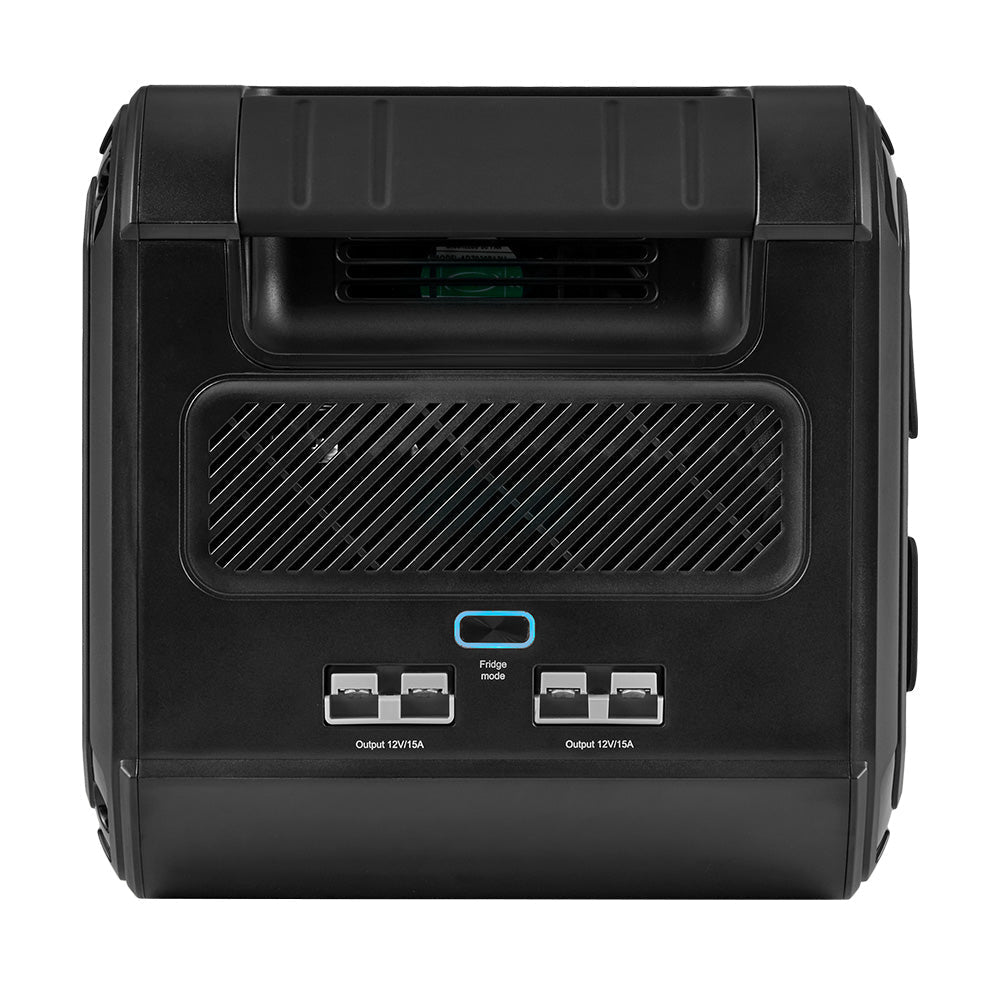

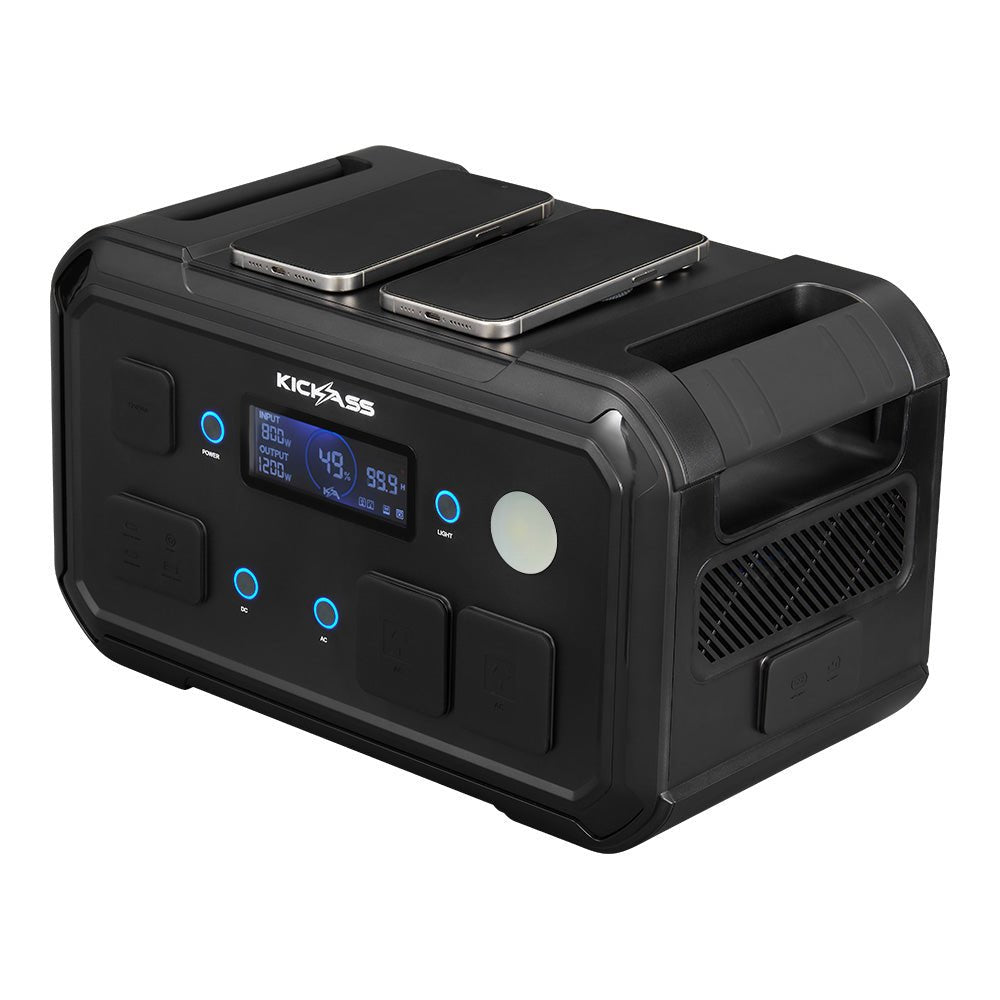

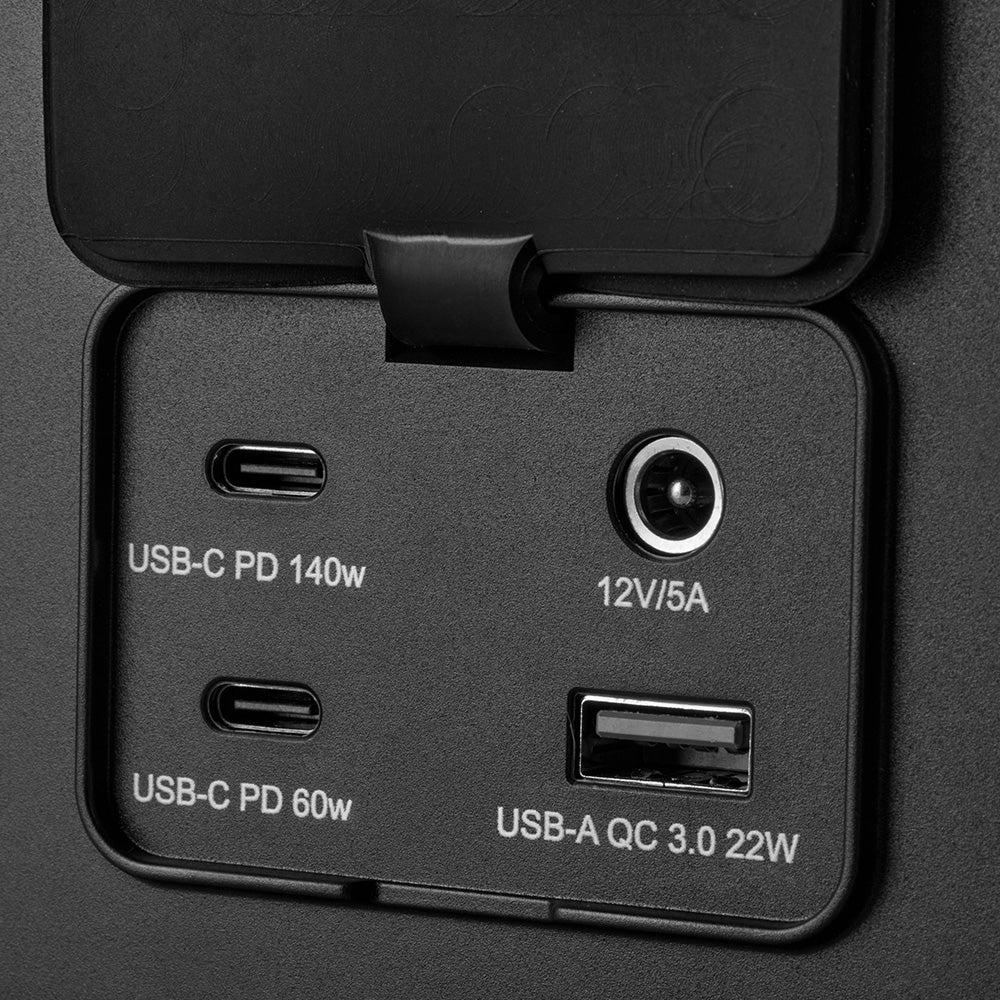

With dual Anderson outputs (not shared – 15A each), a cig socket, three USB ports (including USB-C PD 3.1 for up to 140W fast laptop charging), and a DC 5521 port, you can power or charge all your essential devices simultaneously. Dual wireless charging pads (10W each, not shared) add extra convenience – just drop your phone or earbuds on top for cable-free charging.
Built for Adventure

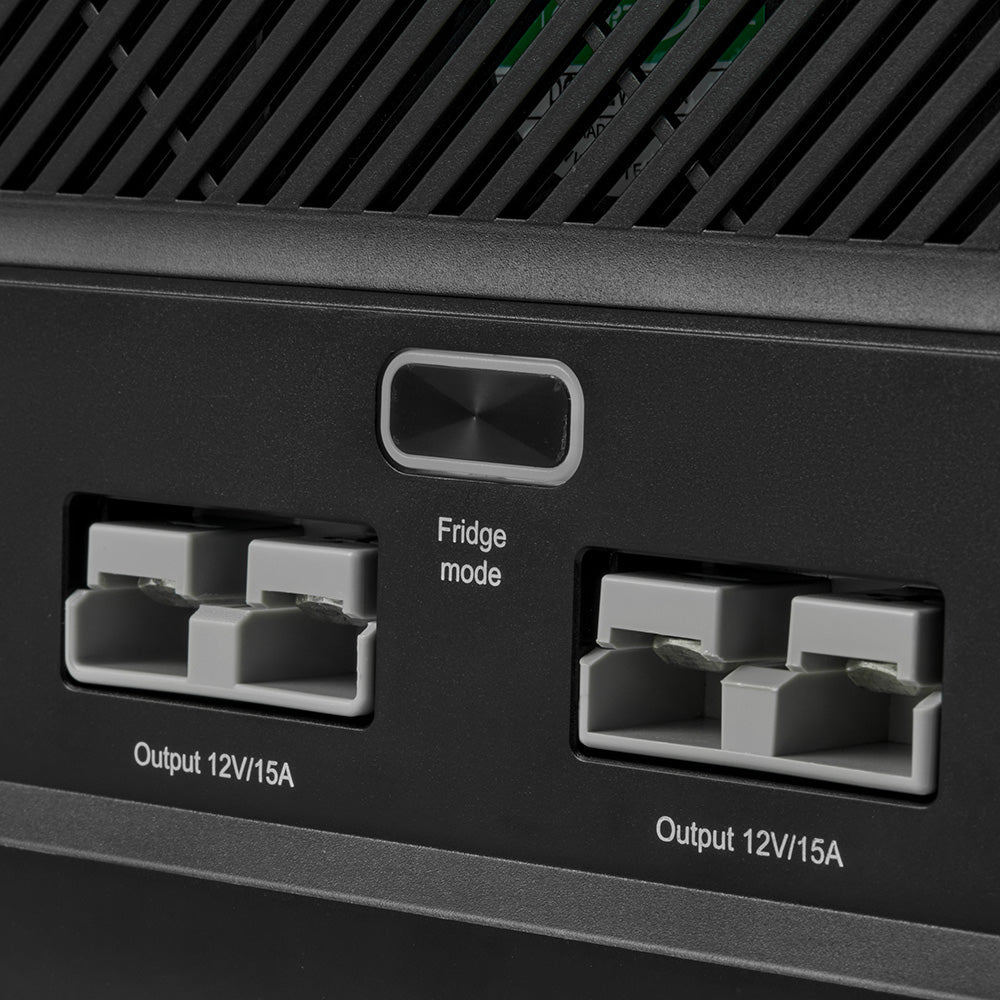

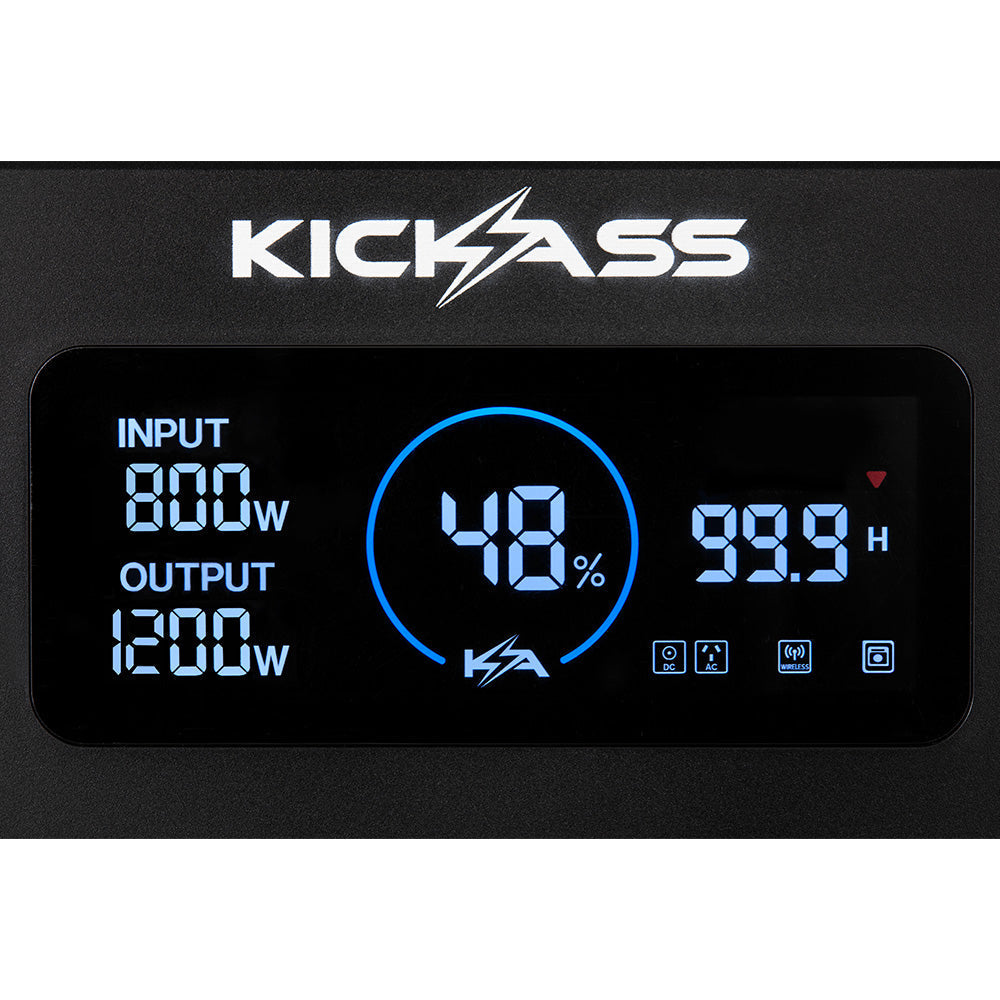

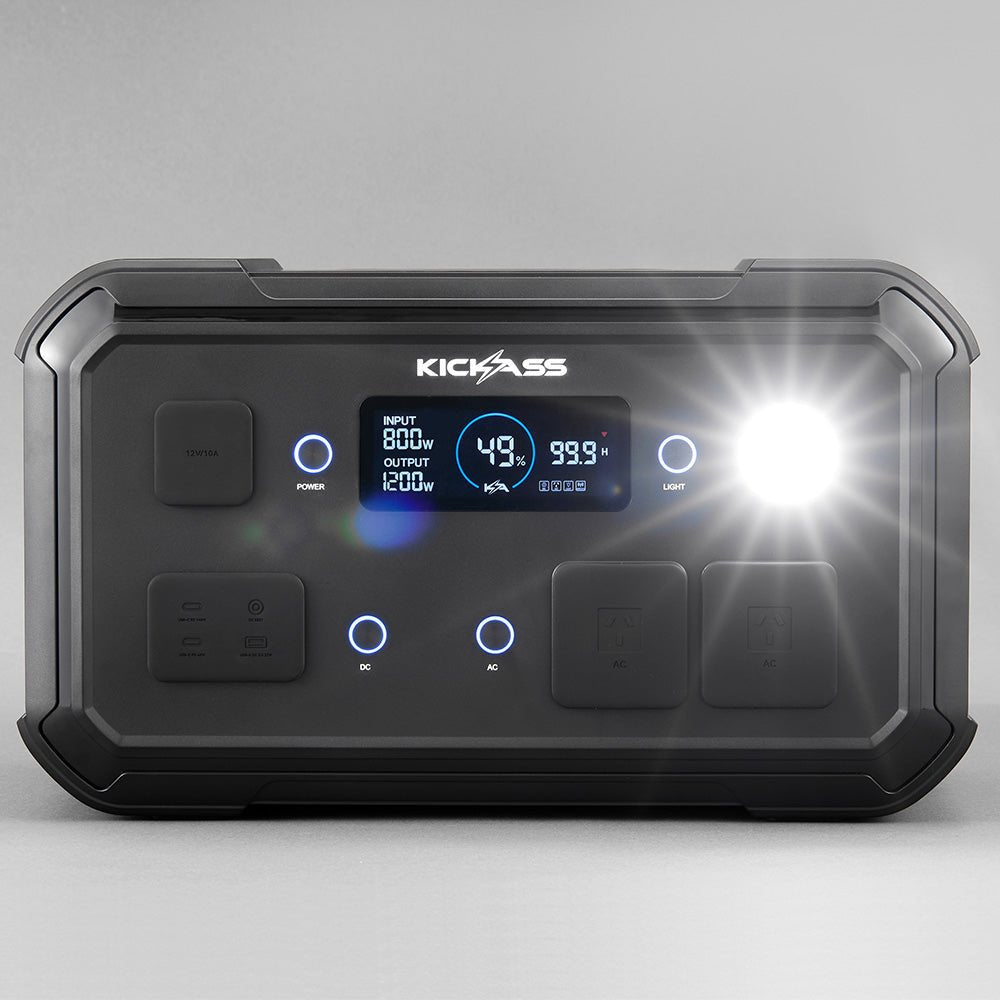

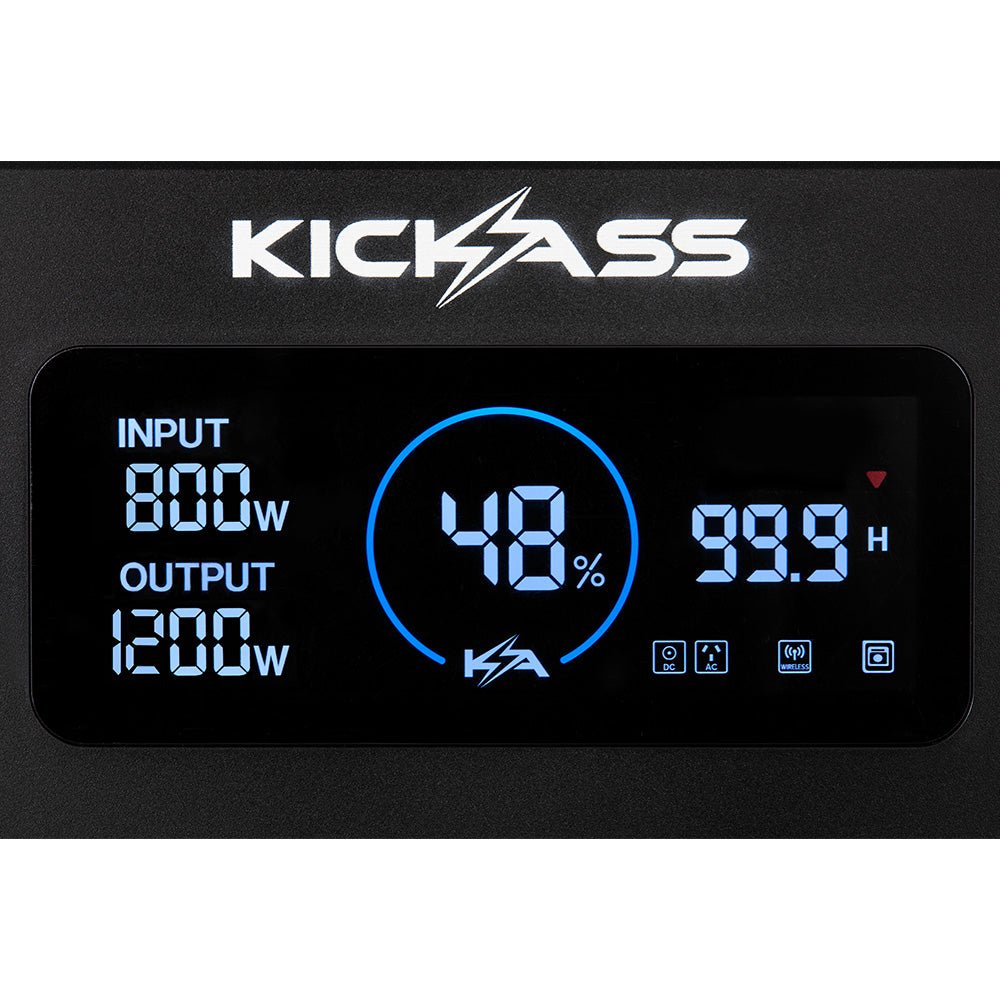

The Always On 12V Anderson output keeps your fridge cold even when the system idles, while the integrated 5W LED light doubles as a campsite lantern or emergency work light. The bright colour LCD screen gives you real-time visibility of battery status, power flow, and solar input at a glance, even in the dark.
Safety First
A multi-layered Battery Management System (BMS) protects your power station and connected gear from overvoltage, overload, overheating, short circuits, and other electrical hazards, giving you total peace of mind wherever you use it.
Certified for Australia
Engineered to meet strict Australian Standards (AS/NZS 4763, AS/NZS 62368), the KickAss KickCharge 1200 LiFePO4 Power Station MKII delivers safe, clean, and reliable energy for home, camp, or emergency use – all in one rugged, portable unit.
