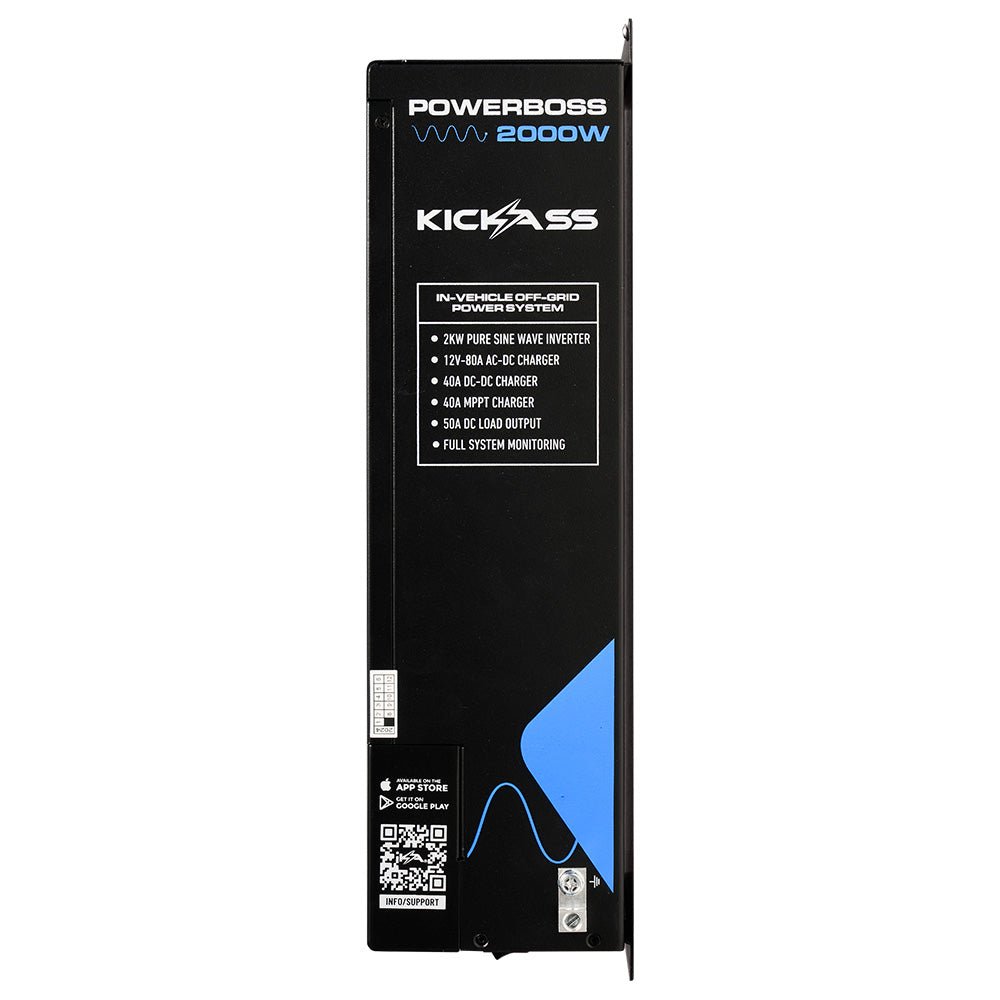

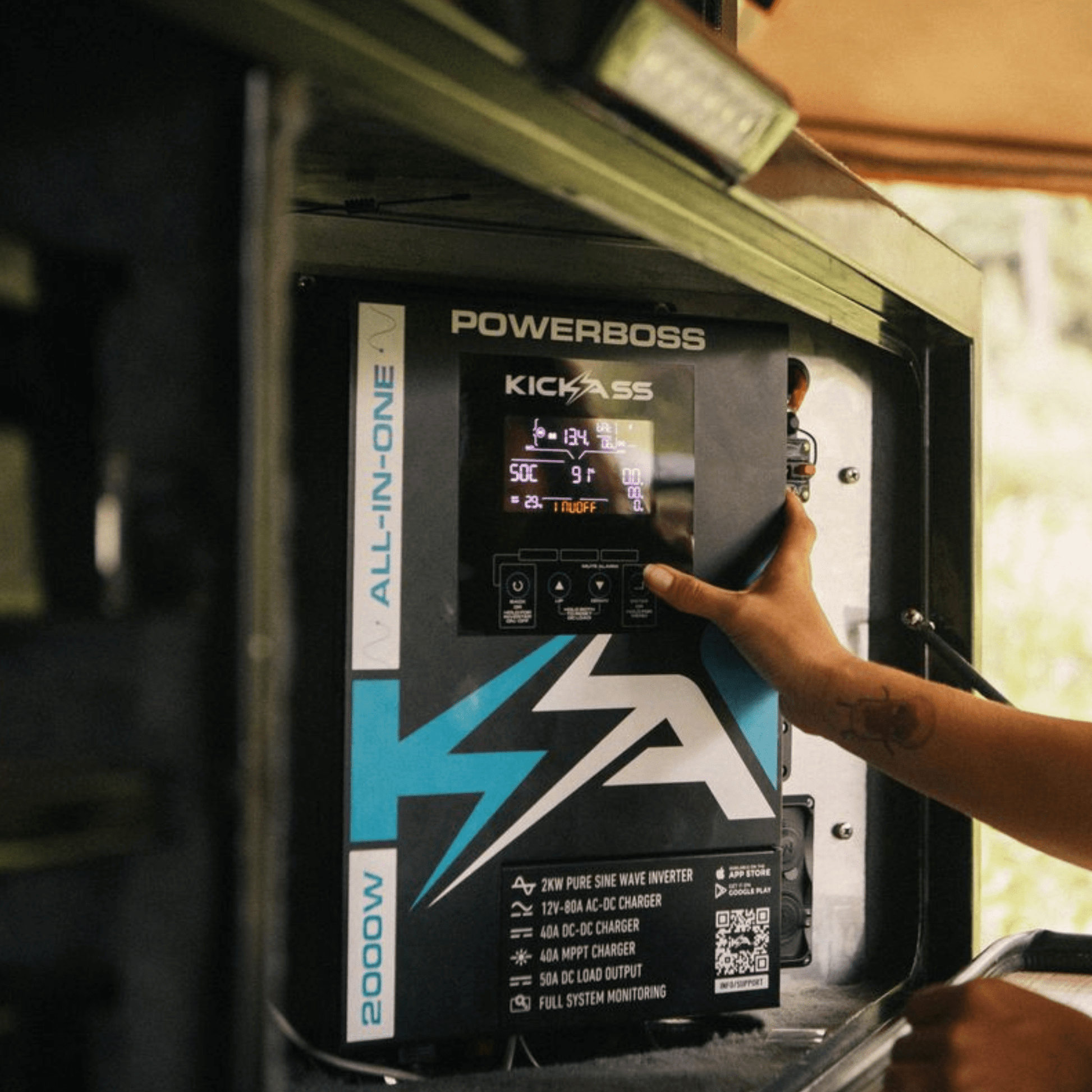

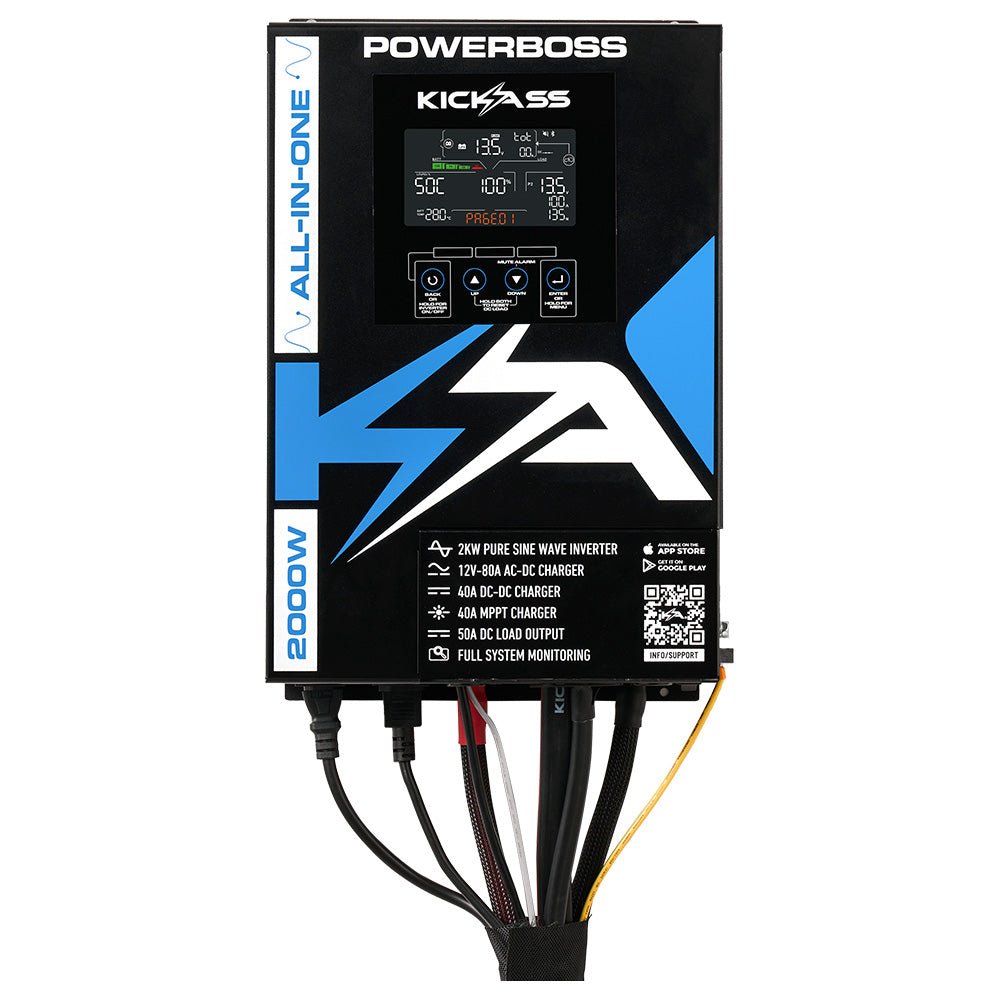

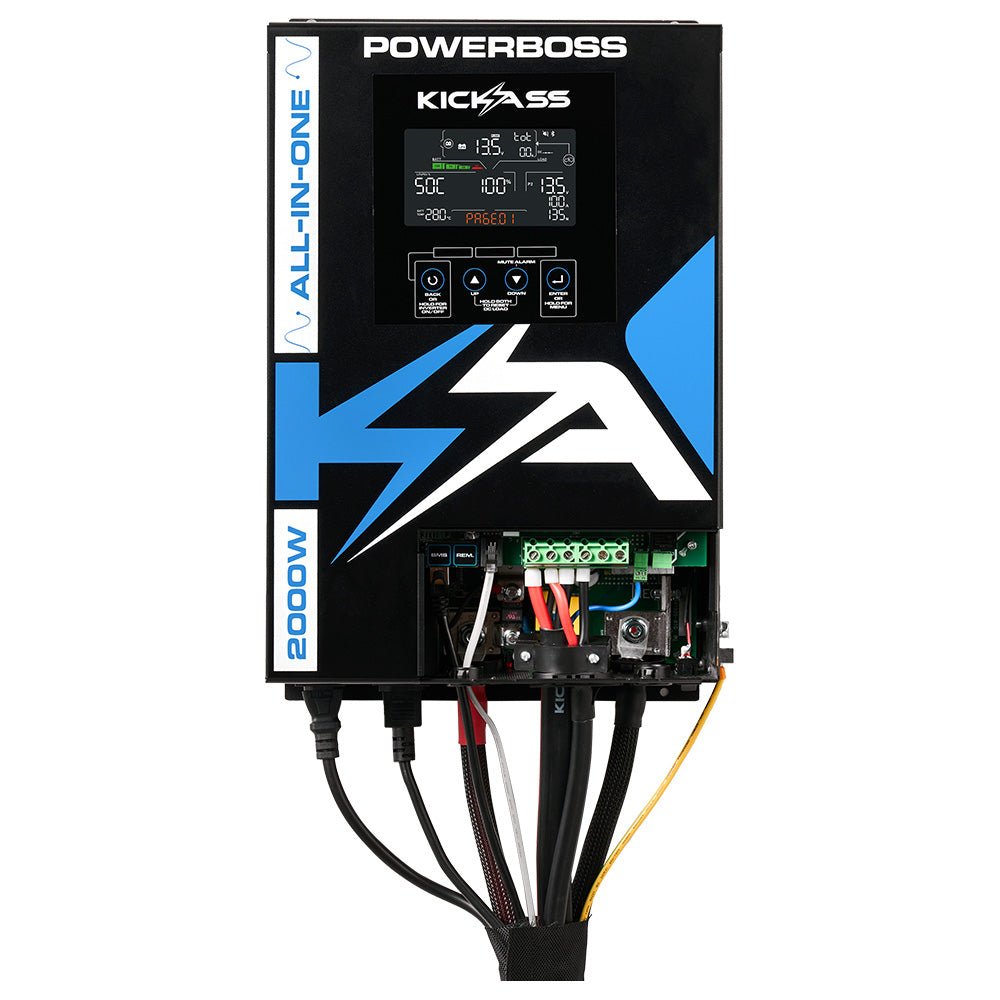

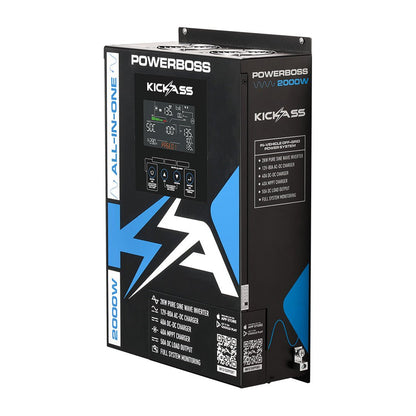

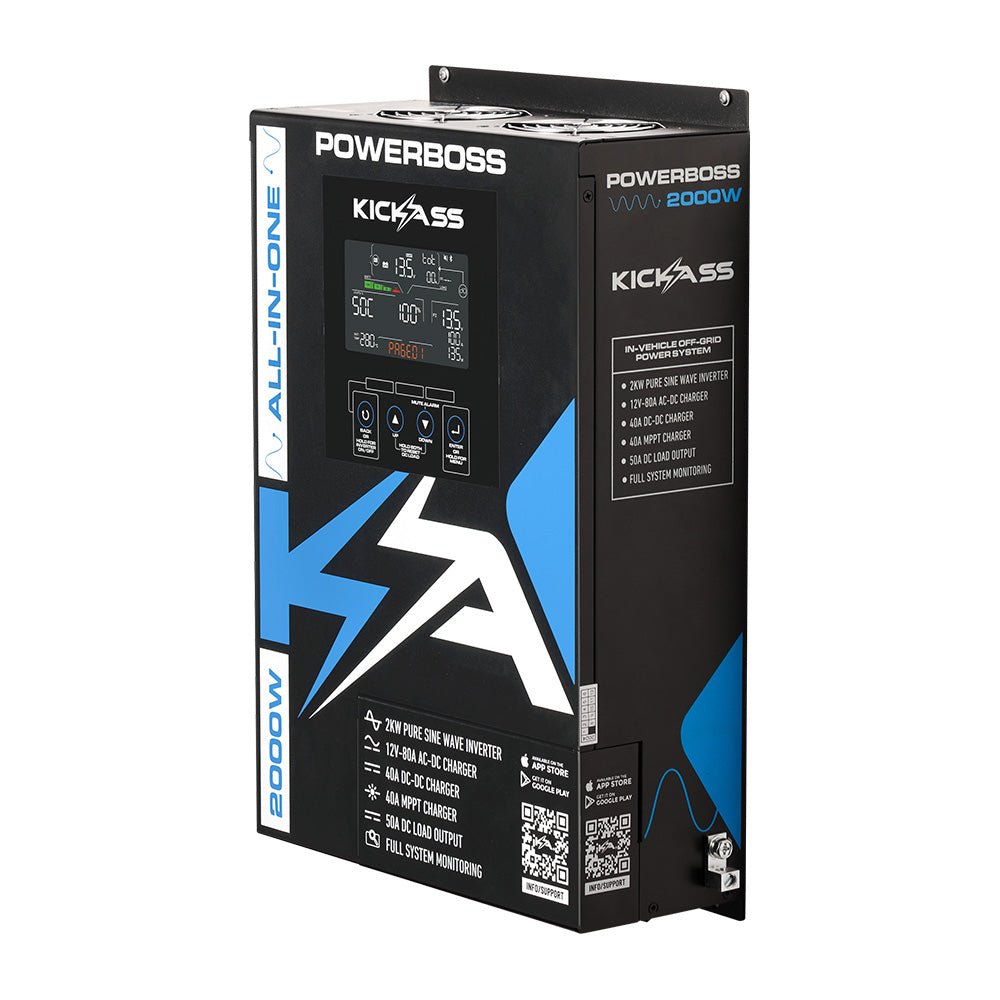

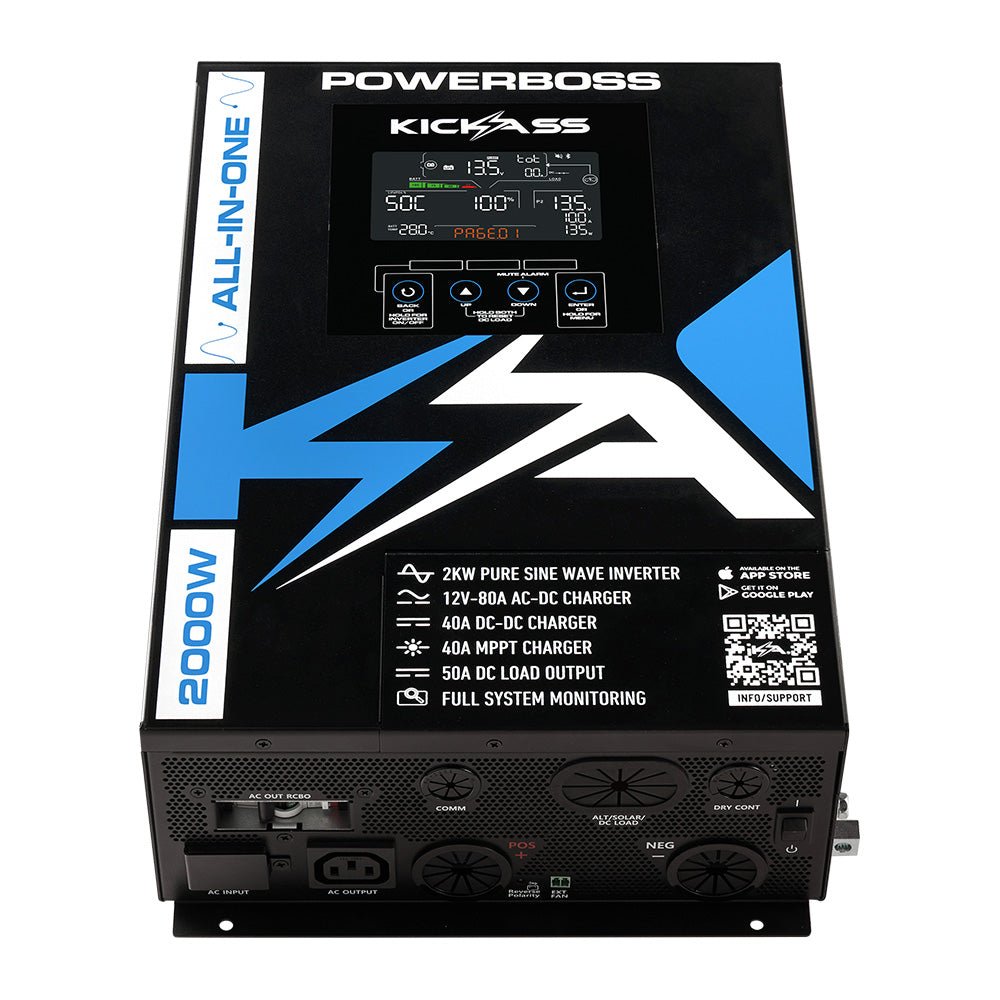

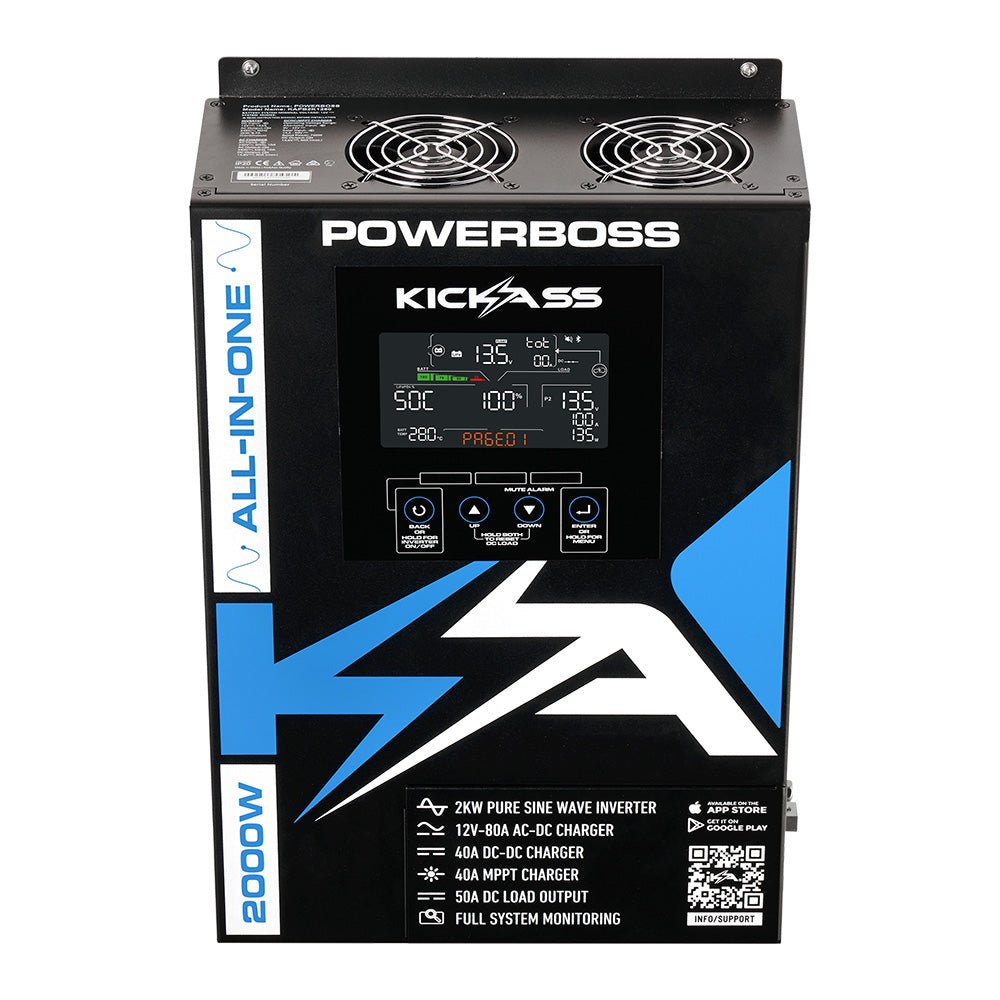

KickAss PowerBoss 2000W All-in-One Power System with Bluetooth, Remote Display and Plug & Play Kit
KickAss PowerBoss 2000W All-in-One Power System with Bluetooth, Remote Display and Plug & Play Kit
SKU:KAPBRDUCONN
An all-in-one off grid plug and play solution with a 2kW Inverter with automatic transfer switch, 40A DCDC-MPPT charger, 80A ACDC charger, Bluetooth, remote display screen with DC load monitoring.
Specifications
Specifications
| KickAss PowerBoss System | |
| Model | KAPB2K1280 |
| Dimensions | 427mm (L) x 285mm (W) x 121mm (D) |
| Weight | 9.85kg |
| Operation Temperature Range | (-20 ºC ~ 50 ºC) |
| Inverter + Automatic Transfer Switch + ACDC Charger | |
| AC Output Power | 2000W |
| AC Input / Output Voltage | 240Vac |
| AC Input / Output Frequency | 50Hz |
| Battery Charge Current | 80A Max (Adjustable) |
| Efficiency | 93% Max |
| Overload Protection | <10s @ 100% Load | 5s @ 150% Load | <5s @ 200% Load |
| AC Input Type | IEC13 |
| AC Output Type | IEC14 |
| Transfer Time | 25ms |
| Circuit Protection | 10A (30mA) RCBO |
| M.E.N Link | Yes |
| Battery Output | |
| Nominal Voltage | 12V |
| Battery Type | GEL, AGM, FLD, LiFePO4, KickAss LiFePO4, USER |
| Battery Capacity | 50 - 500Ah |
| Battery Integration Integration | KickAss Smart and Ultra-X Series |
| DCDC-MPPT Charger | |
| Alt Input Voltage Range | 12V Alternator ~ 9-16V |
| Alt Battery Charging Current | 40A Max (Adjustable) |
| DCDC Efficiency | 88% Max |
| Solar Input Voltage Range | 14.5 - 50V |
| Solar Battery Charging Current | 40A Max (Adjustable) |
| MPPT Efficiency | 95% Max |
| DC Load | |
| Output | 12V 50A Max |

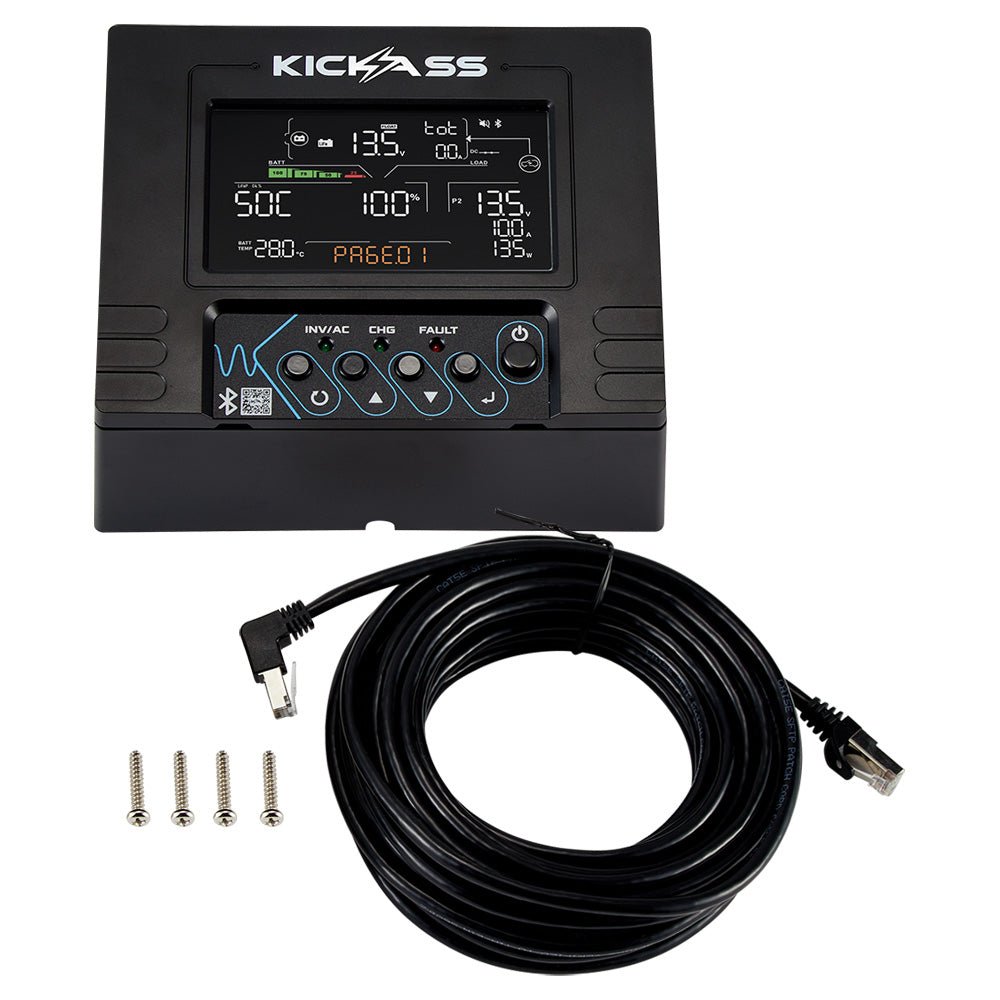

| KickAss PowerBoss Remote Display Unit | |
| Input Voltage | 12V |
| Input Current | 0.15A |
| Dimensions (Surface Mount) | 67 x 131 x 160mm |
| Weight | 0.4kg |
| Certifications | AS/NZS 4268 + AS/NZS 2772.2 |
| Connection Type | RJ45 |

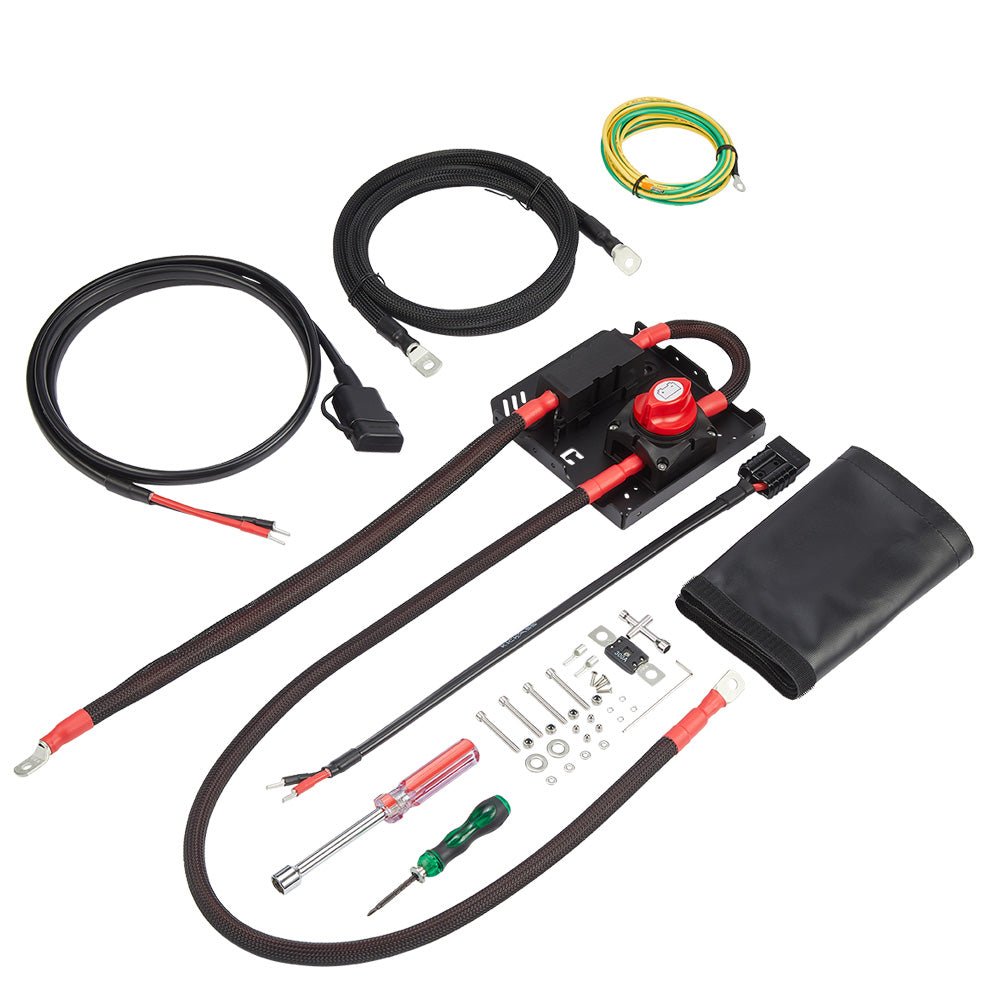

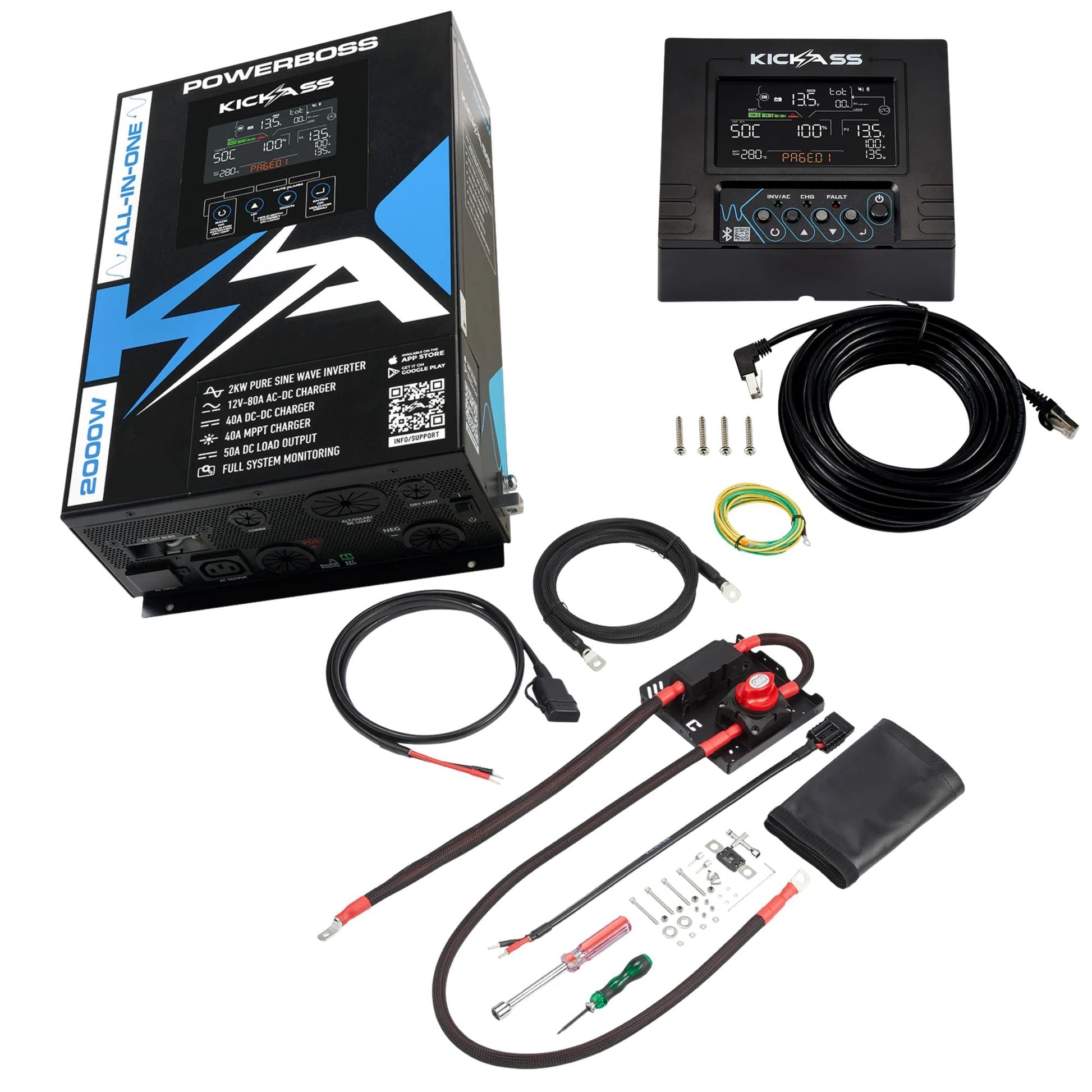

| KickAss PowerBoss Connections Kit | |
| Battery Connections Cable | 1.6m 0AWG Silicon Single Core Positive and Negative |
| Mega Fuse | 300A |
| Isolator | Single Pole |
| Solar Connection Cable | 0.5m 2 Core Silicon 8AWG |
| DC Load Connection Cable | 2m 2 Core Silicon 8AWG |
| Chassis Ground Cable | 4m single core 4mm² |
| Supplied tools | 13mm socket driver | multi bit screwdriver | Cable wrap | 4-way socket tool | 2mm Allen key |
