KickAss Trailer Wiring Kit - Supports connection between a 3 Pin trailer mounted connector and the PowerBoss
KickAss Trailer Wiring Kit - Supports connection between a 3 Pin trailer mounted connector and the PowerBoss
SKU:KA3PINTODCDCWK

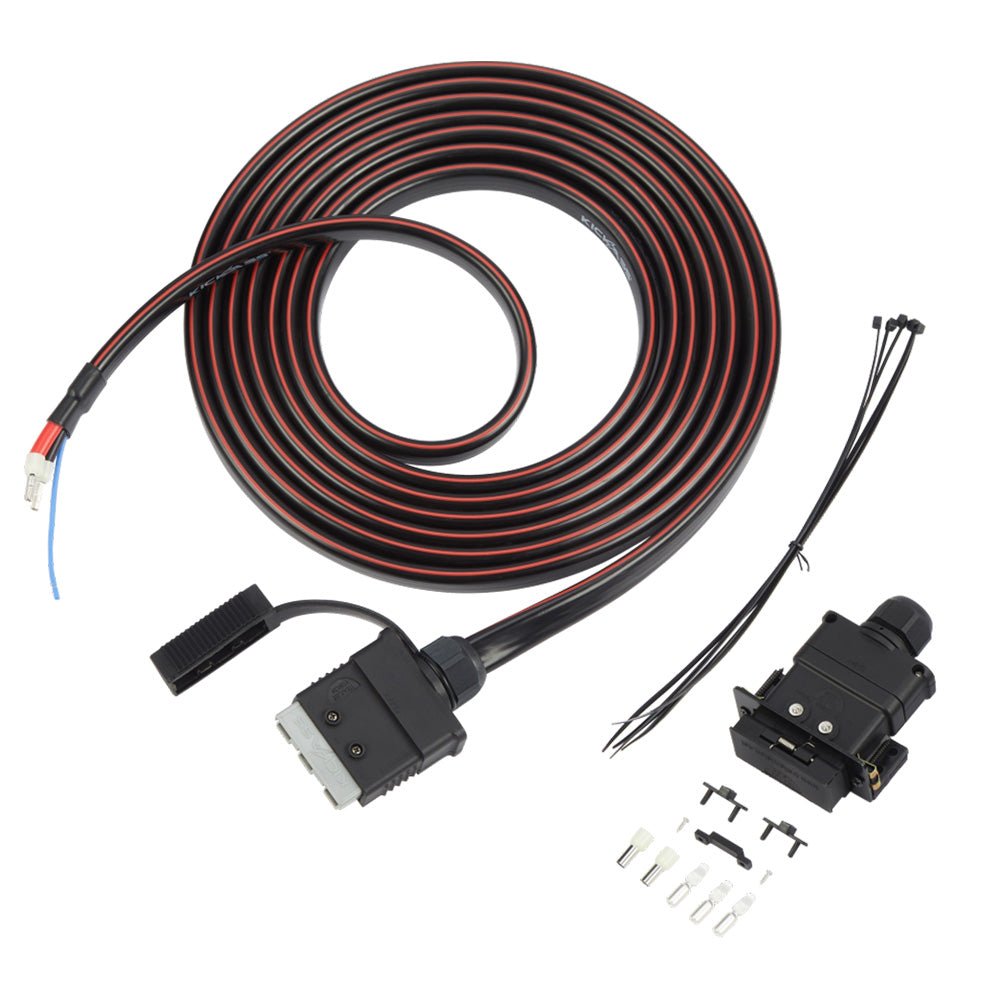

The KickAss Trailer Wiring Kit provides a plug and play solution between the PowerBoss in a trailer or caravan and the drawbar. The kit comes with a heavy duty surface mount hard cover for the 3-pin Anderson connector to be installed on the vehicle's tow bar. The hard cover is weather resistant and provides a secure locking mechanism.
Specifications
Specifications
| Main Cable Length | 6.5m - 3 Core |
| Ignition Cable Extension | 3m - 14AWG Single Core |
| Cable Size - 3 Core | 2x 6AWG (13.5mm²), 1x 14AWG (1.8mm²) |
| Insulation Material | Inner - Silicon / Outer - PVC |
| Rated Temperature | Max. 105°C |
| Alternator Connection | Ring Terminals - M8 - Battery / M6 - Fuse |
| Anderson Connection | Anderson Pins |
| Fuse | 80A MIDI Fuse with Holder |
User Manuals
User Manuals
