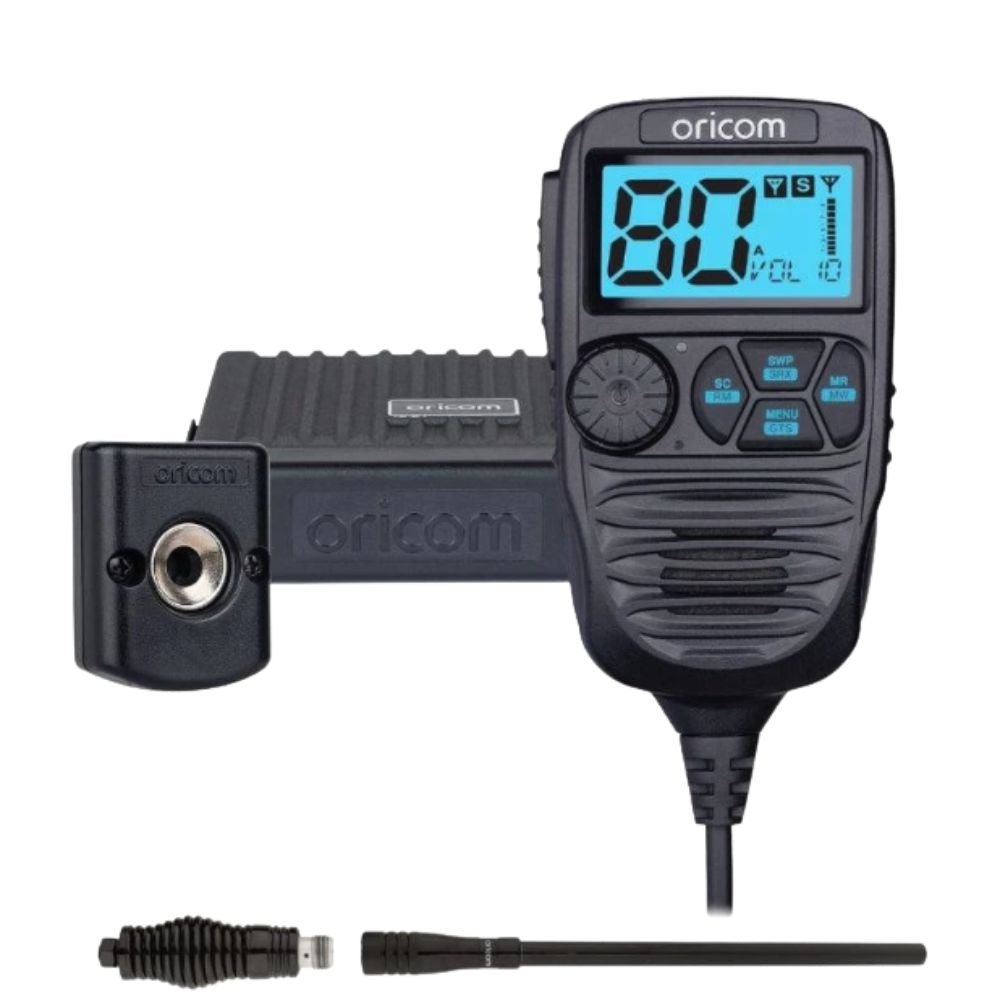

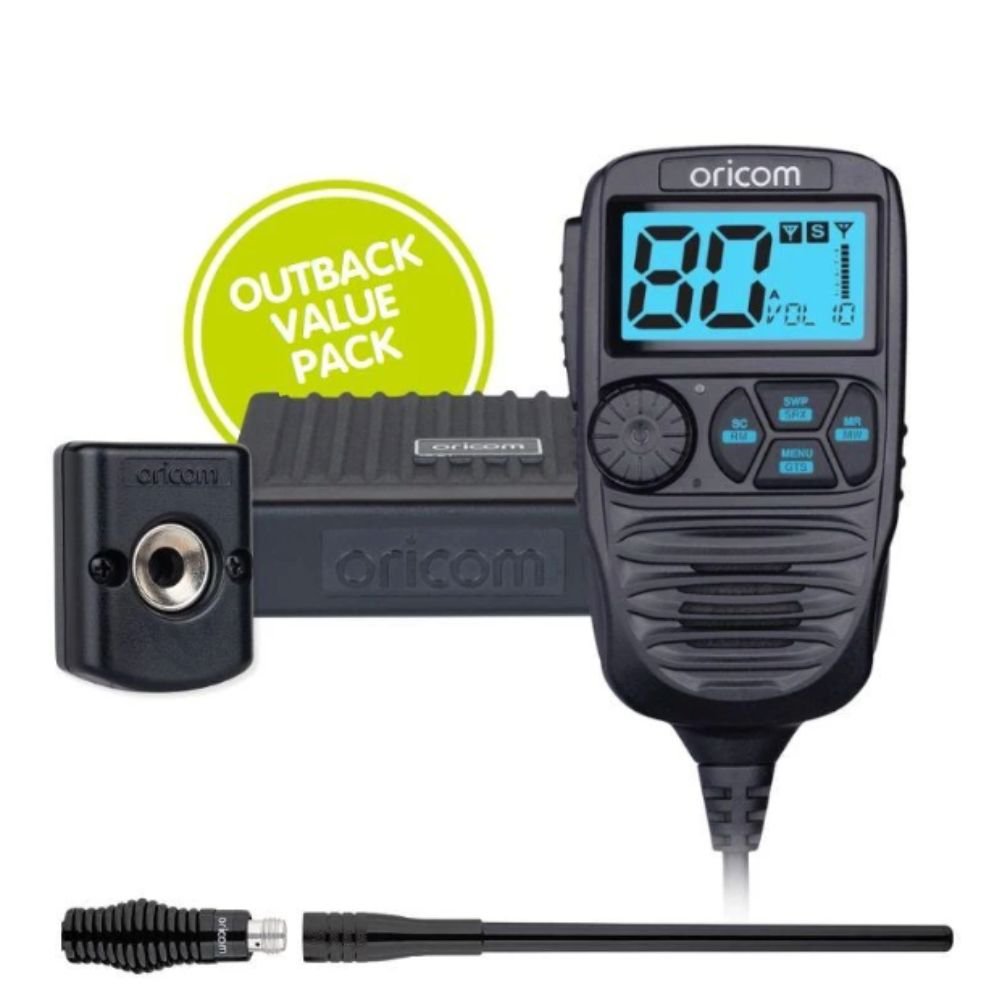

Oricom DTX4200XP with ANU913 / MMM100 Outback Value Pack
Oricom DTX4200XP with ANU913 / MMM100 Outback Value Pack
SKU:DTX4200X4PK
The DTX4200X delivers professional performance with an ergonomic controller mic, loud clear audio, IP54 dust and splash resistance, and a heavy-duty die-cast chassis. Featuring fast 80-channel scanning, large multi-colour backlit display, duplex, CTCSS/DCS codes, and auto power off. Includes ANU913 antenna pack with spring base, fibreglass radome, 4.5m coaxial cable, and adaptor.
Specifications
Specifications
| TECHNICAL SPECIFICATION – GENERAL | |
| Compliance | AS/NZS 4365:2011 |
| Frequency Range TX/RX | 476.425 - 477.4125 MHz |
| Number of TX/RX Channels | 80 UHF CB Channels (75 voice) |
| Channel Spacing TX/RX | 12.5KHz |
| Operating Modes | Simplex, Repeater TX offset (+750KHz) |
| Scanning Speed | 50 msec per channel |
| Antenna Impedance | 50 Ohms |
| Operating Volts Nominal | 13.8VDC |
| Operating Volts Range | 10 to 15VDC |
| Over Voltage Protection | Diode and Voltage regulator system |
| Over Current Protection | 2 AMP fuse |
| Reverse Polarity Protection | Shunt diode |
| Frequency Stability | +/- 5 ppm |
| TRANSMITTER | |
| RF Output Power | 5 Watts max |
| Modulation | F3E (FM) |
| Maximum Deviation | 2.5KHz |
| Spurious Emissions | < -30dBm |
| TX Audio Pre-emphasis | +6dB/Octave from 300Hz to 3KHz |
| Current Consumption During TX | 1.7 AMP with 50 ohm antenna termination |
| RECEIVER | |
| Circuit Type | Dual conversion super heterodyne |
| Intermediate Frequencies | 1st IF: 21.4MHz, 2nd IF: 450KHz (Main RX) 1st IF: 38.85MHz, 2nd IF: 455KHz (Sub RX) |
| Receiver Sensitivity | -123dBm for 12dB SINAD |
| Audio Output Power | > 2 Watts at 8 ohm load |
| RX Audio De-emphasis | +6dB/Octave from 300Hz to 3KHz |
| Signal to Noise Ratio | > 40dB |
| Conducted Spurious Emission | > -57dBm |
| MECHANICAL | |
| Dimensions (H × W × D) | 31 × 128 × 147 mm |
| Weight | 548g Transceiver, 700g Controller speaker microphone |
